51559 - Toro 10" String Trimmer, Cordless (SN: 079000001 - 079999999) (1997) MOTOR HOUSING, MOTOR & HANDLE ASSEMBLY Parts Diagram

10" String Trimmer, Cordless

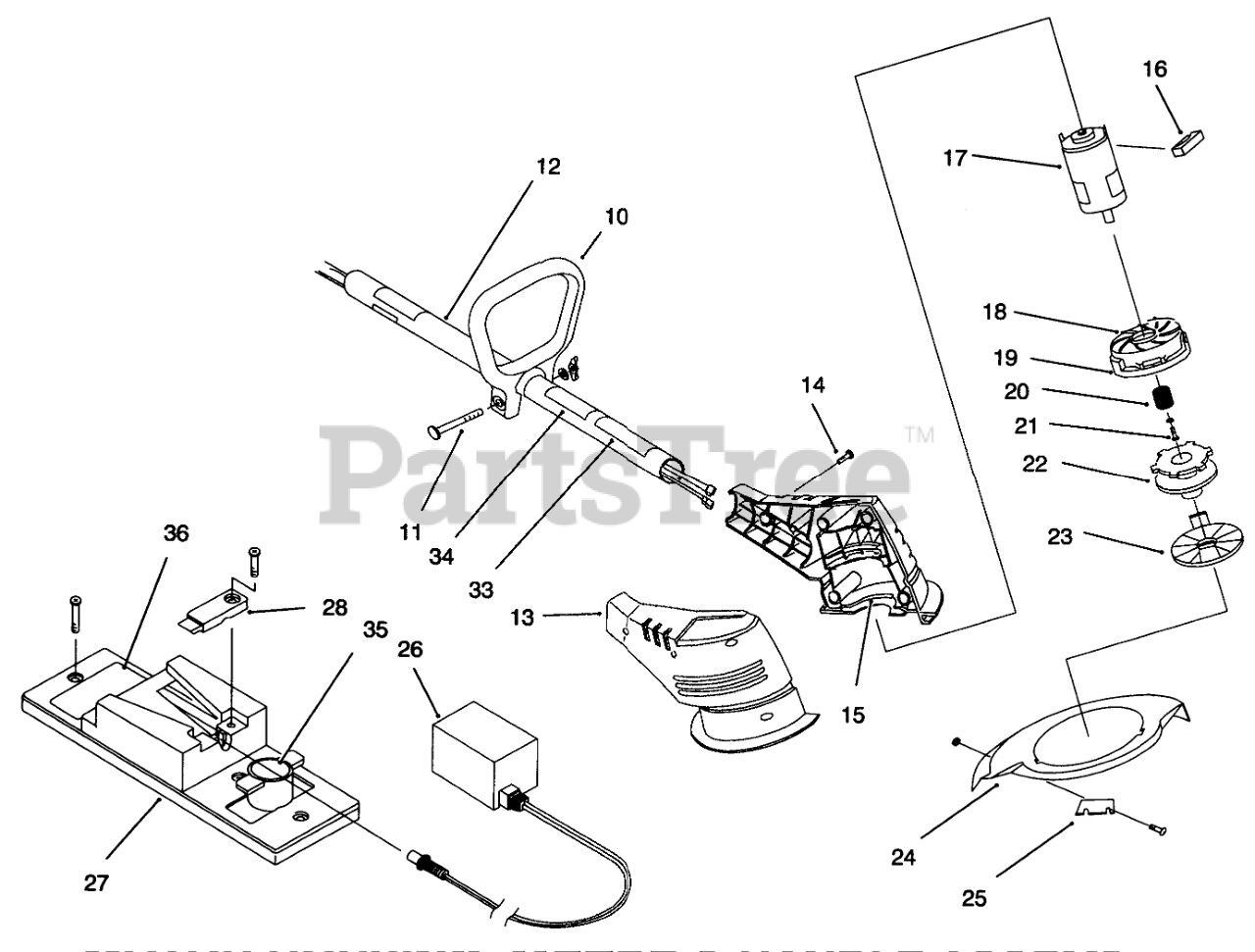

MOTOR HOUSING, MOTOR & HANDLE ASSEMBLY Parts Diagram

  • Title

10

Toro 145819

D-HANDLE

$

$

Not available

11

Toro 181587

HARDWARE - D-HANDLE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 180367

ASSEMBLY - BOOM

$

$

Not available

13

Toro 181496

HOUSING - MOTOR

$

$

Not available

14

Toro 181482

SCREW - HOUSING

$

$

Not available

15

Toro 180369

SUPPORTS - MOTOR (3)

$

$

Not available

16

Toro 180370

BLOCK - ANTI-ROTATION

$

$

Not available

17

Toro 180371

MOTOR

$

$

Not available

18

Toro 180372

Outer Spool and Eyelet (Incl. Ref. #19)

$

$

Not available

19

Toro 180373

EYELET

$

$

Not available

20

Toro 180374

SPRING

$9.99

$

Usually ships in 3-6 days

0

21

Toro 180375

SCREW & WASHER

$

$

Not available

22

Toro 92-3292

Inner Reel and .065 Line (15 ft.)

$

$

Not available

Toro 180117

MONOFLAIL LINE (50 FT)

Note: Not illustrated

$

$

Not available

23

Toro 180376

COVER - REEL

$

$

Not available

24

Toro 180293

Guard and Blade Assembly (Inc. Ref. #25)

$72.99

$

Usually ships in 3-6 days

0

25

Toro 180377

ASSEMBLY - BLADE

$14.99

$

Usually ships in 3-6 days

0

26

Toro 180294

CHARGER - BATTERY

$

$

Not available

27

Toro 180295

ASSEMBLY - WALL STATION

$

$

Not available

28

Toro 180378

WALL STATION CLAMP/SCREW

$

$

Not available

33

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

34

Toro 50925

DECAL - UL SAFETY WARNING

$5.99

$

Usually ships in 3-6 days

0

35

Toro 51245

DECAL - TORO LOGO

$

$

Not available

36

Toro 50965

Decal-Caution

$

$

Not available

Toro 180327

Cutting Head Assembly (Incl. Ref. #18-23)

Note: Not illustrated

$85.99

$

Usually ships in 3-6 days

0
