51560 C (CL 710) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

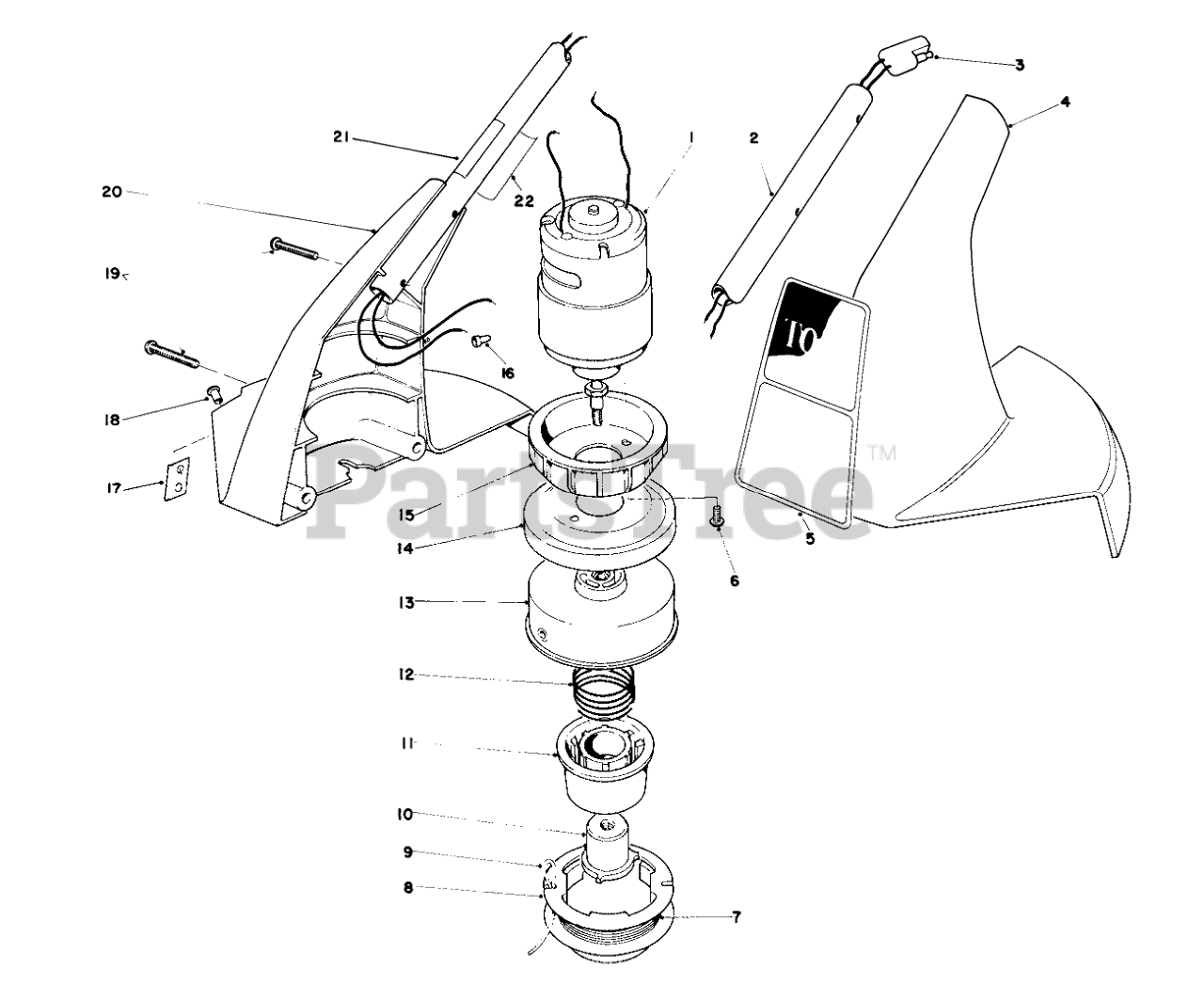

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-3170

MOTOR ASM

$

$

Not available

2

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

3

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

4

Toro 33-6560

Housing-L.H.

$

$

Not available

5

Toro 64-2390

DECAL - MOTOR HSG CSA

$

$

Not available

6

Toro 52-3280

Screw

$

$

Not available

7

Toro 88375

Cutting Line (12- .05 Dia.)

$

$

Currently unavailable

8

Toro 34-9870

CAP-SPOOL

$13.99

$

In Stock, only 1 left!

0

9

Toro 88311

Cutting Line (30- .05 Dia.)

$

$

Currently unavailable

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$29.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

Spring
(Superseded to 29-8230)

$8.99

$

In Stock, only 2 left!

0

13

Toro 33-9760

Drum w/Eyelet

$

$

Not available

14

Toro 33-9730

DRUM CUP

$

$

Not available

15

Toro 33-9740

Casting-Heat Sink

$

$

Not available

16

Toro 218-511

Connector

$

$

Not available

17

Knife Blade

$

$

Not available

18

Rivet

$

$

Not available

19

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

20

Toro 33-6760

R.H. Motor Housing (Incl. Ref. #17 & 18)

$

$

Not available

21

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

22

Toro 40-2850

Decal

$

$

Not available

Toro 34-1160

Loose Parts

$

$

Not available
