51560 C (CL 710) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) Motor Housing Assembly Parts Diagram

String Trimmer, Electric

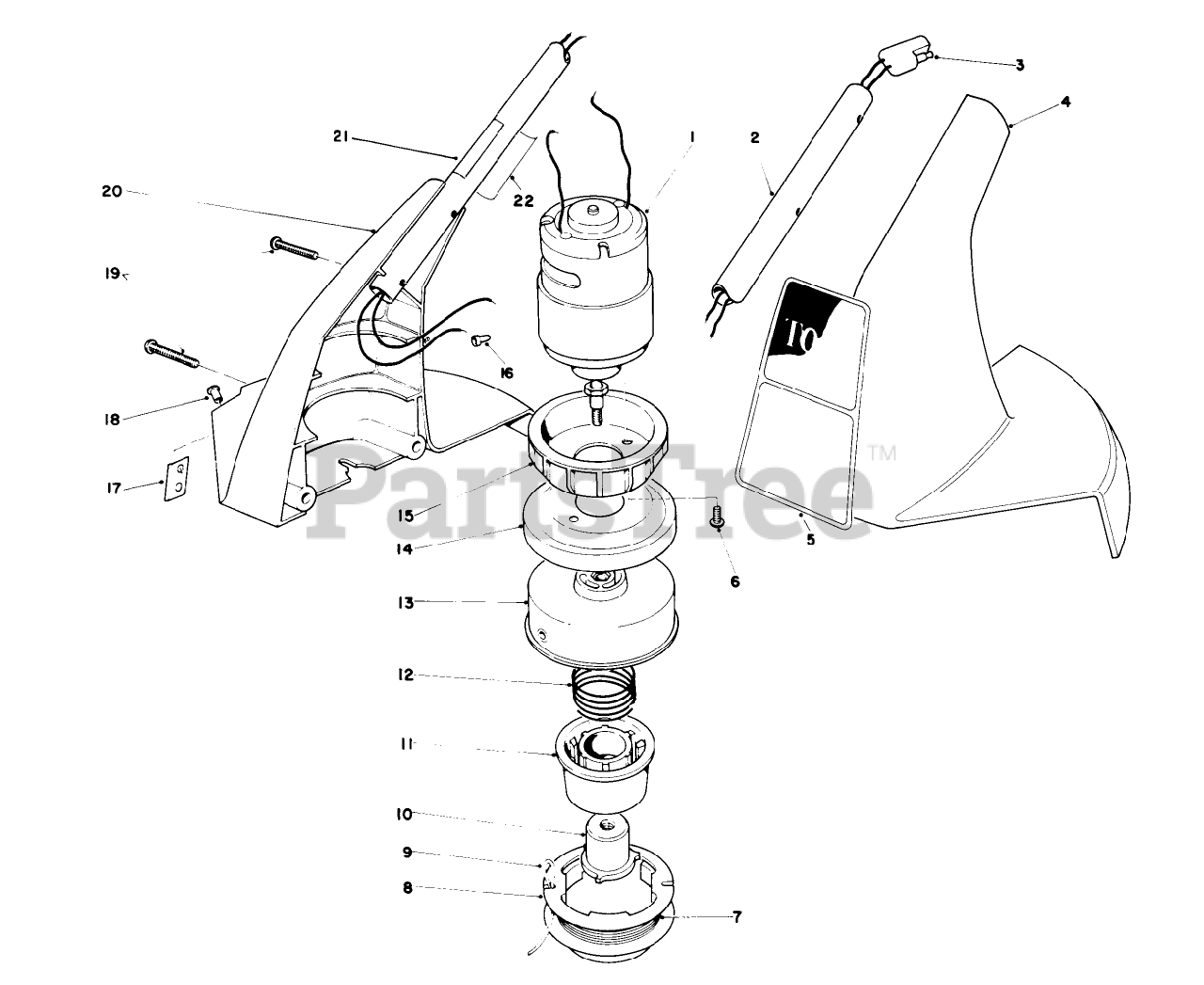

Motor Housing Assembly Parts Diagram

  • Title

1

Toro 62-3170

DISCONTINUED

$

$

Not available

2

Toro 33-6660

DISCONTINUED

$

$

Not available

3

Toro 33-6720

DISCONTINUED

$

$

Not available

4

Toro 33-6560

DISCONTINUED

$

$

Not available

5

Toro 64-2390

DISCONTINUED

$

$

Not available

6

Toro 52-3280

DISCONTINUE

$

$

Not available

7

Toro 88375

Cutting Line (12- .05 Dia.)

$

$

Currently unavailable

8

Toro 34-9870

CAP-SPOOL

$18.99

$

Usually ships in 3-6 days

0

9

Toro 88311

Cutting Line (30- .05 Dia.)

$

$

Currently unavailable

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$38.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

See Supercession: 29-8230
(Superseded to 29-8230)

$10.99

$

In Stock, only 1 left!

0

13

Toro 33-9760

DISCONTINUED

$

$

Not available

14

Toro 33-9730

DISCONTINUED

$

$

Not available

15

Toro 33-9740

DISCONTINUE

$

$

Not available

16

Toro 218-511

CONNECTOR SCREW

$

$

Not available

17

Knife Blade

$

$

Not available

18

Rivet

$

$

Not available

19

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

20

Toro 33-6760

DISCONTINUED

$

$

Not available

21

Toro 34-3270

DISCONTINUED

$

$

Not available

22

Toro 40-2850

DISCONTINUED

$

$

Not available

Toro 34-1160

DISCONTINUED

$

$

Not available
