51568 - Toro Quiet Blower Vacuum (SN: 099000001 - 099100000) (1999) Blowervac Assembly Parts Diagram

Quiet Blower Vacuum

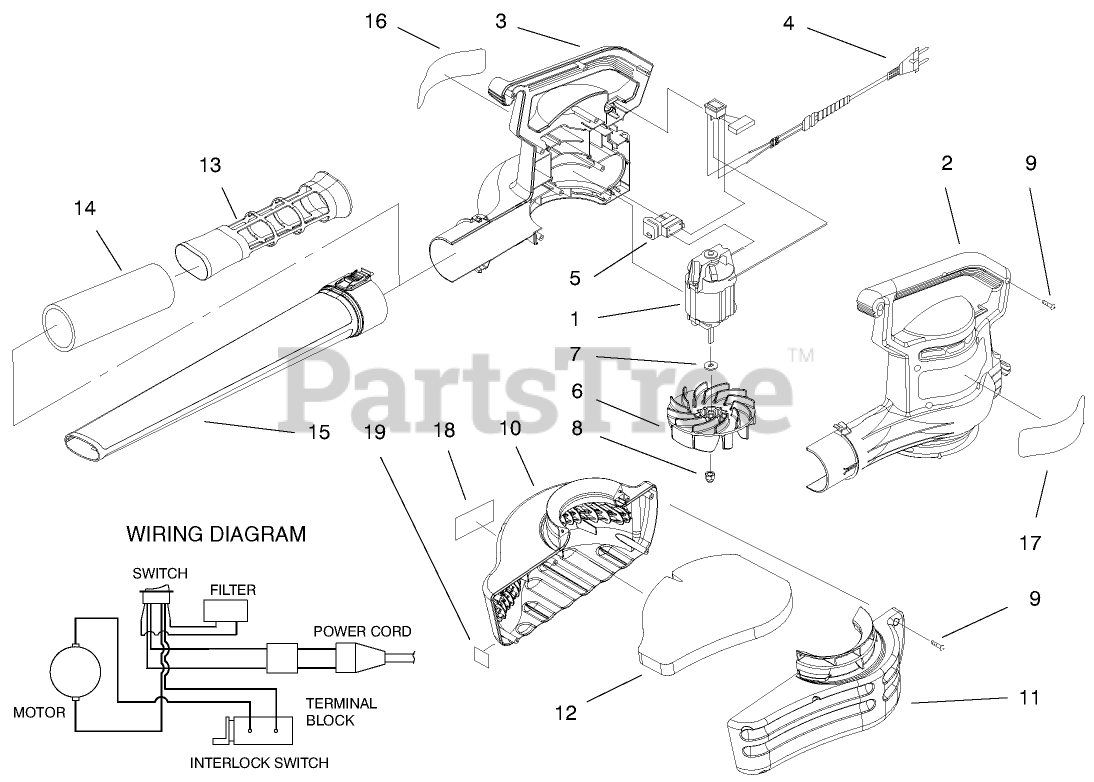

Blowervac Assembly Parts Diagram

  • Title

1

Toro 98-3162

MOTOR - 2.25" STACK 230V

$

$

Not available

2

Toro 93-8719

DISCONTINUED

$

$

Not available

3

Toro 93-8720

HOUSING, RH - 230V BLOWER

$

$

Not available

4

Toro 93-8745

DISCONTINUED

$

$

Not available

4

Toro 94-3179

WASHER-SPRING

$

$

Currently unavailable

5

Toro 93-0598

DISCONTINUED

$

$

Not available

6

Toro 98-3150

See Supercession: 100-9068
(Superseded to 100-9068)

$43.99

$

In Stock, Qty 10

0

7

Toro 93-0585

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

8

Toro 93-9993

DISCONTINUED

$

$

Not available

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 98-3157

See Supercession: 100-1223
(Superseded to 100-1223)

$

$

Not available

11

Toro 98-3158

See Supercession: 100-1223
(Superseded to 100-1223)

$

$

Not available

12

Toro 98-3174

FOAM - INLET

$

$

Not available

13

Toro 98-3156

INSERT - QUIET

$

$

Not available

14

Toro 98-3159

DISCONTINUED

$

$

Not available

15

Toro 98-3151

DISCONTINUED
(Superseded to 93-0571)

$

$

Not available

16

Toro 93-0579

DISCONTINUED

$

$

Not available

17

Toro 93-9916

DISCONTINUE - NSP

$

$

Not available

17

Toro 99-2854

DISCONTINUED

$

$

Not available

18

Toro 98-3173

DISCONTINUED

$

$

Not available

19

Toro 98-3176

DISCONTINUED

$

$

Not available
