5157 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

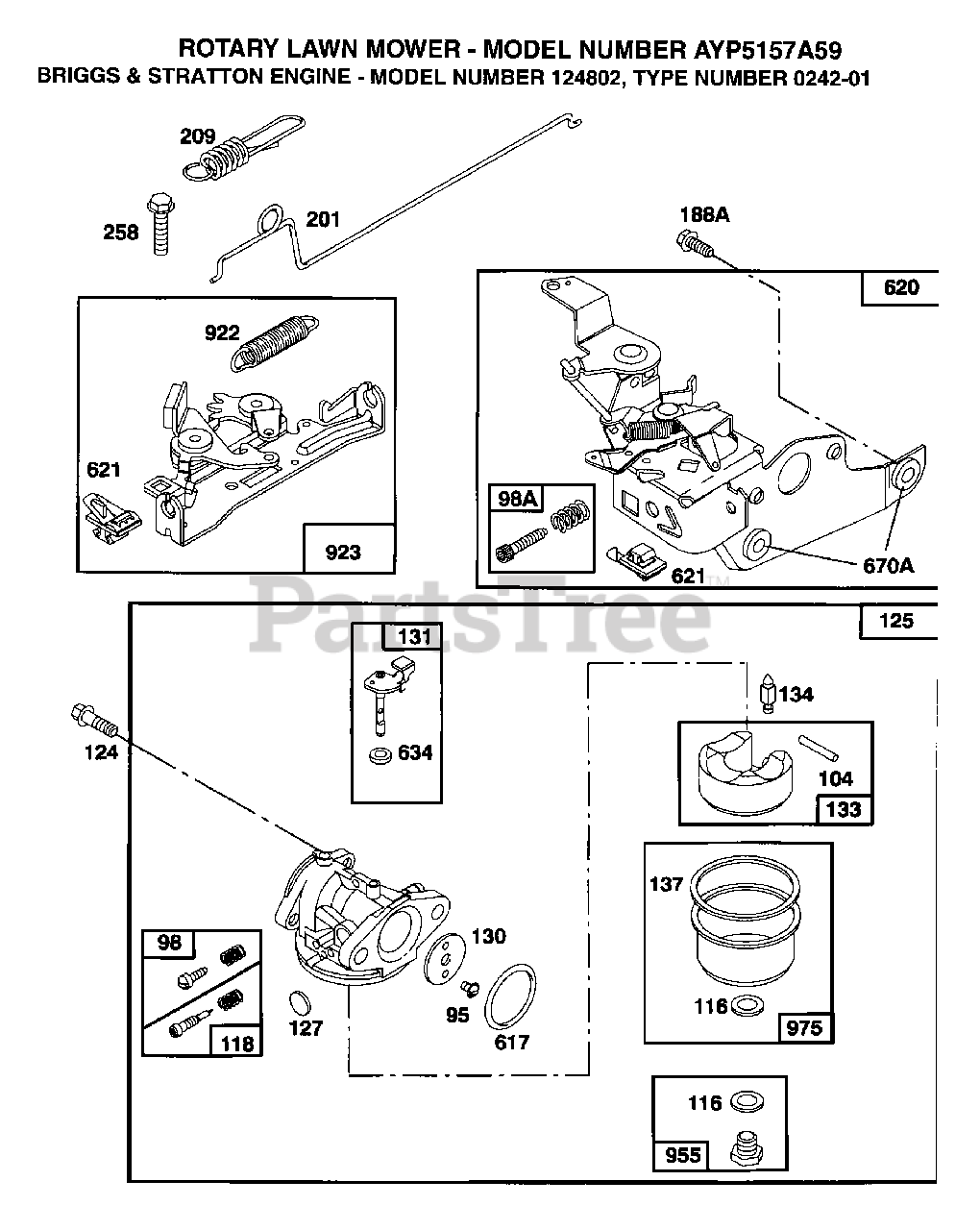

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

SCREW IDLE ADJ

$7.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 493280

SCREW ASSY SPEED ADJ

$8.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, only 1 left!

0

116

REFER TO IMAGE

$

$

Not available

118

Briggs & Stratton 493765

VALVE AND SPRING NEEDLE

$14.99

$

In Stock, only 1 left!

0

124

Briggs & Stratton 94525

SCREW, CARBURETOR MOUNTING
(Superseded to 691688)

$4.49

$

In Stock, Qty 5

0

125

Briggs & Stratton 496114

CARB ASSY

$

$

Not available

127

REFER TO IMAGE

$

$

Not available

130

Briggs & Stratton 223470

VALVE THROTTLE
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

SHAFT, THROTTLE

$16.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 7

0

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

REFER TO IMAGE

$

$

Not available

188A

Briggs & Stratton 94644

SCREW, HEX HEAD
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

Briggs & Stratton 496117

GASKET SET

$40.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493762

CARB OVERHAUL KIT
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

201

Briggs & Stratton 262579

LINK, GOVERNOR
(Superseded to 691829)

$8.49

$

In Stock, only 2 left!

0

209

Briggs & Stratton 262660

SPRING, GOVERNOR
(Superseded to 691834)

$11.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94512

SCREW, HEX HEAD
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 495975

BRKT ASSY, CARB CONTROL
(Superseded to 692021)

$57.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

REFER TO IMAGE

$

$

Not available

670A

Briggs & Stratton 493823

SPACER, BRACKET

$6.49

$

In Stock, only 2 left!

0

922

Briggs & Stratton 262640

SPRING, BRAKE
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

BRAKE ASSEMBLY
(Superseded to 796387)

$

$

Not available

955

Briggs & Stratton 493637

SCREW, FUEL BOWL, STANDARD

$17.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$6.49

$

In Stock, Qty 7

0
