51586 - Toro Power Sweep Blower (SN: 099100001 - 099499999) (1999) POWER SWEEP BLOWER ASSEMBLY Parts Diagram

Power Sweep Blower

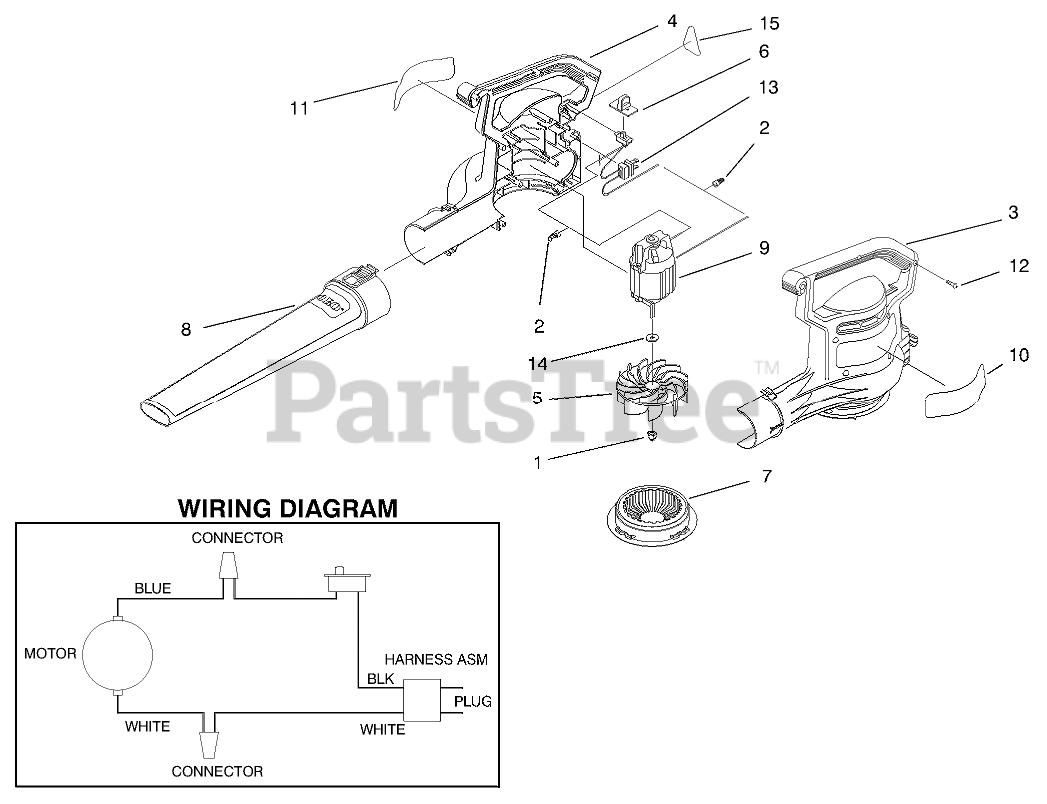

POWER SWEEP BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

3

Toro 100-2453

HOUSING-LH
(Superseded to 100-2459)

$68.99

$

Usually ships in 3-6 days

0

4

Toro 100-2452

Housing-RH
(Superseded to 100-2459)

$68.99

$

Usually ships in 3-6 days

0

5

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

6

Toro 93-0565

COVER-SWITCH

$

$

Not available

7

Toro 94-9320

COVER - INLET

$6.49

$

Usually ships in 3-6 days

0

8

Toro 93-0571

TUBE - BLOWER SHORT

$

$

Not available

9

Toro 98-3172

MOTOR - 1.00" STACK

$

$

Not available

10

Toro 95-3019

DECAL - POWER SWEEP

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100-2466

Decal-Label

$

$

Currently unavailable

12

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

14

Toro 93-0585

WASHER

$1.49

$

In Stock, Qty 8

0

15

Toro 95-5106

DECAL - INFORMATION

$

$

Not available
