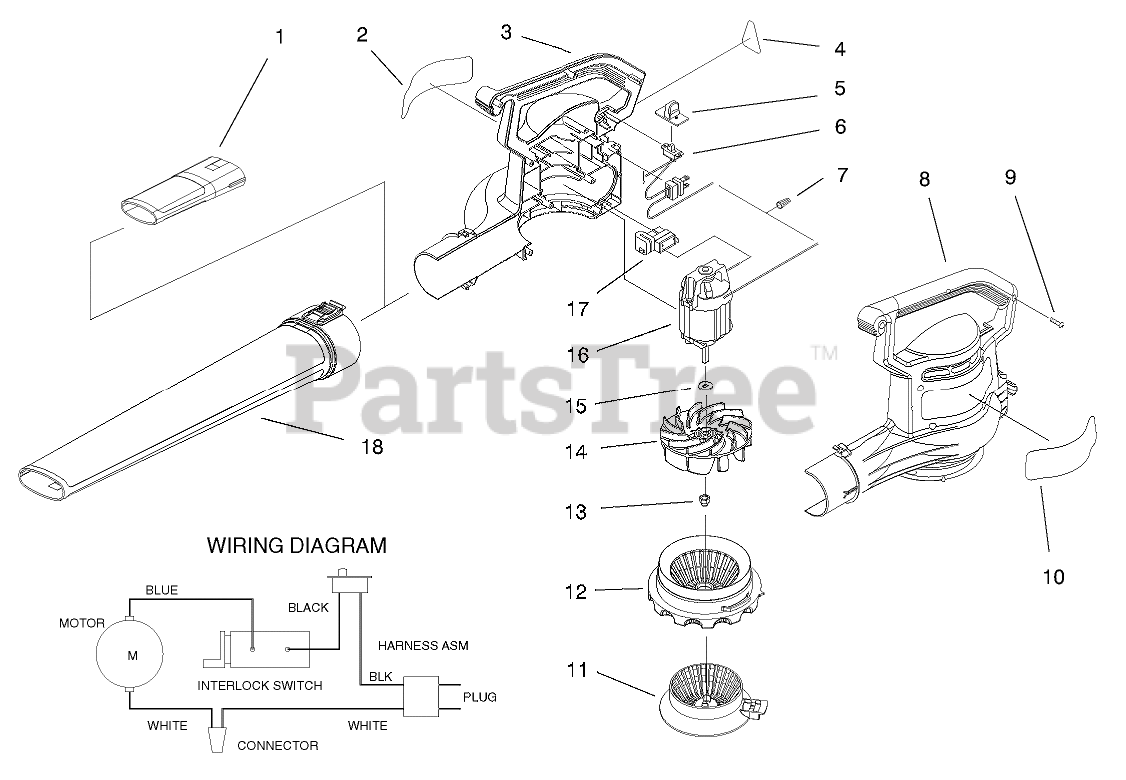

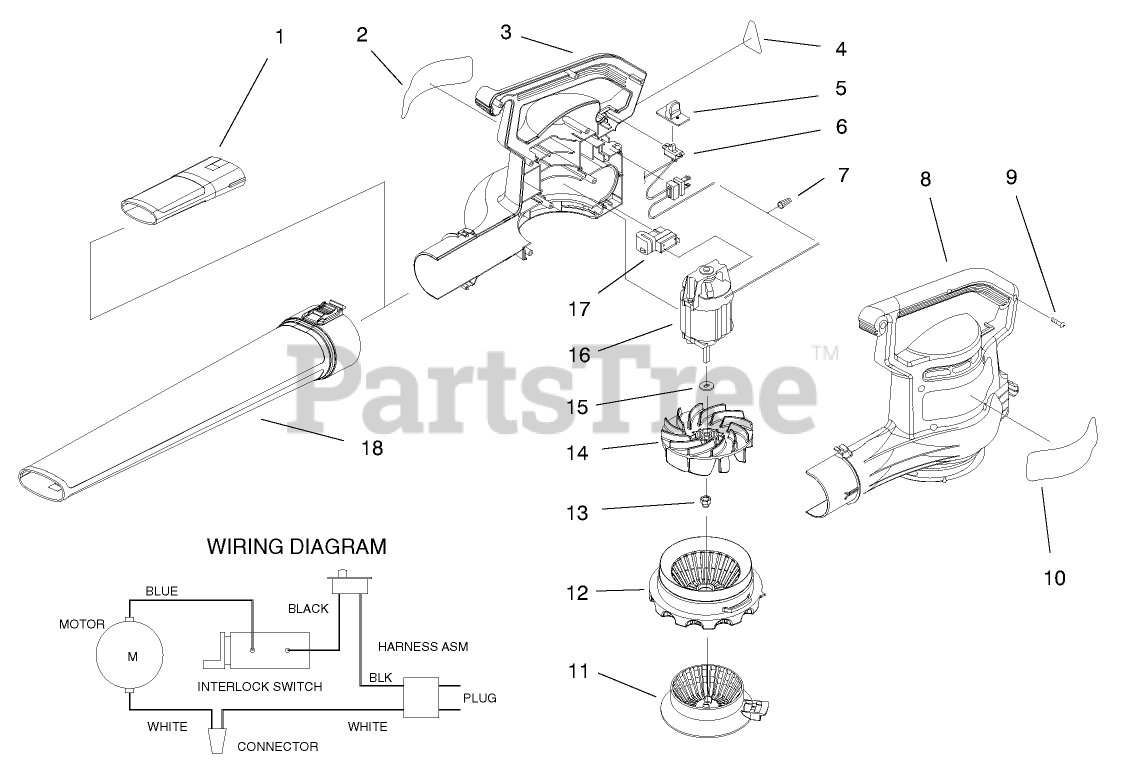

51587 - Toro Super Blower Vacuum (SN: 099000001 - 099100000) (1999) > Parts Diagrams (2) > FIRST PAGE

INSERT - TUBE

Part# 98-3152

OEM Warranty Repair Part for Toro

DECAL, LOGO, SUPRBLWR

Part# 93-0579

OEM Warranty Repair Part for Toro

HOUSING, RH (BLACK)

Part# 93-0563

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

DECAL - INFORMATION

Part# 95-5106

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

COVER - SWITCH, RED

Part# 93-0599

OEM Warranty Repair Part for Toro

HARNESS ASSEMBLY

Part# 93-0578

OEM Warranty Repair Part for Toro

CONNECTOR-NUT, WIRE

Part# 73-6570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

HOUSING, LH (BLACK)

Part# 93-0561

OEM Warranty Repair Part for Toro

SCREW-PPH

Part# 94-4496

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

LABEL STOCK-BLOWERS

Part# 98-3187 (Superseded to 100-2462) 

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

CHOKE - AIR, RED

Part# 98-3155

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Cover-Inlet

Part# 98-3153 (Superseded to 100-9050) 

OEM Warranty Repair Part for Toro

NUT-HEX

Part# 73-5380 (Superseded to 114-9015) 

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

IMPELLER - BLOWER

Part# 98-3150 (Superseded to 100-9068) 

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

WASHER

Part# 93-0585

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

MOTOR - ELECTRIC, 120 V

Part# 98-3171

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

SWITCH, INTERLOCK

Part# 93-0567

OEM Warranty Repair Part for Toro

TUBE-BLOWER LONG

Part# 98-3151 (Superseded to 93-0571) 

Note: Included in tube assembly No. 98-3170

OEM Warranty Repair Part for Toro
