51587 - Toro Super Blower Vacuum (SN: 099500000 - 099999999) (1999) Blowervac Assembly Parts Diagram

Super Blower Vacuum

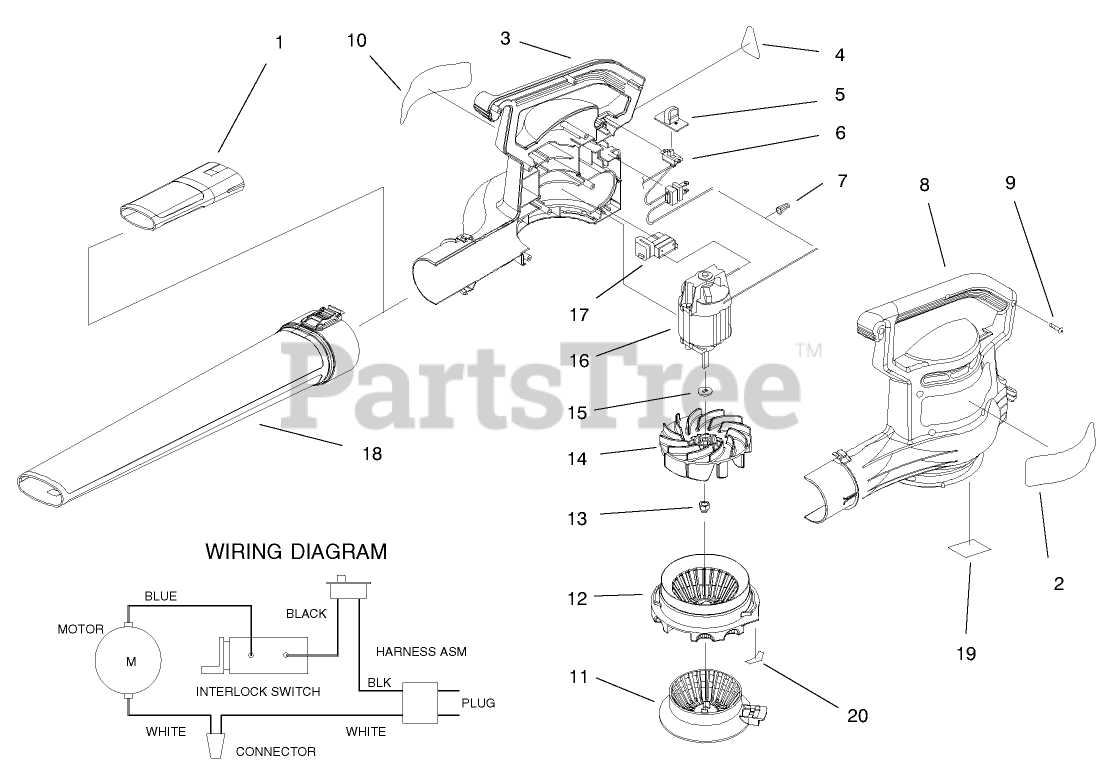

Blowervac Assembly Parts Diagram

  • Title

1

Toro 98-3152

DISCONTINUED

$

$

Not available

2

Toro 93-0579

DISCONTINUED

$

$

Not available

3

Toro 100-2450

See Supercession: 100-2458
(Superseded to 100-2458)

$

$

Not available

4

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

5

Toro 93-0599

DISCONTINUED

$

$

Not available

6

Toro 93-0578

DISCONTINUED

$

$

Not available

7

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

8

Toro 100-2451

See Supercession: 100-2458
(Superseded to 100-2458)

$

$

Not available

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-2463

DECAL-SERIAL, SUPERBLOWER

$

$

Not available

11

Toro 98-3155

CHOKE - AIR, RED

$8.99

$

Usually ships in 3-6 days

0

12

Toro 100-2468

See Supercession: 100-9050
(Superseded to 100-9050)

$

$

Not available

13

Toro 73-5380

See Supercession: 114-9015
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 8

0

14

Toro 98-3150

See Supercession: 100-9068
(Superseded to 100-9068)

$43.99

$

In Stock, Qty 10

0

15

Toro 93-0585

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

16

Toro 98-3171

MOTOR - ELECTRIC, 120 V

$389.99

$

Usually ships in 3-6 days

0

17

Toro 95-3286

SWITCH - INTERLOCK

$21.99

$

Usually ships in 3-6 days

0

18

Toro 98-3151

DISCONTINUED
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

19

Toro 100-2464

DECAL-ALIGNMENT, HOUSING

$

$

Not available

20

Toro 100-2470

DISCONTINUED

$

$

Not available
