51589 - Toro Quiet Blower Vacuum (SN: 200000001 - 200999999) (2000) BLOWERVAC ASSEMBLY Parts Diagram

Quiet Blower Vacuum

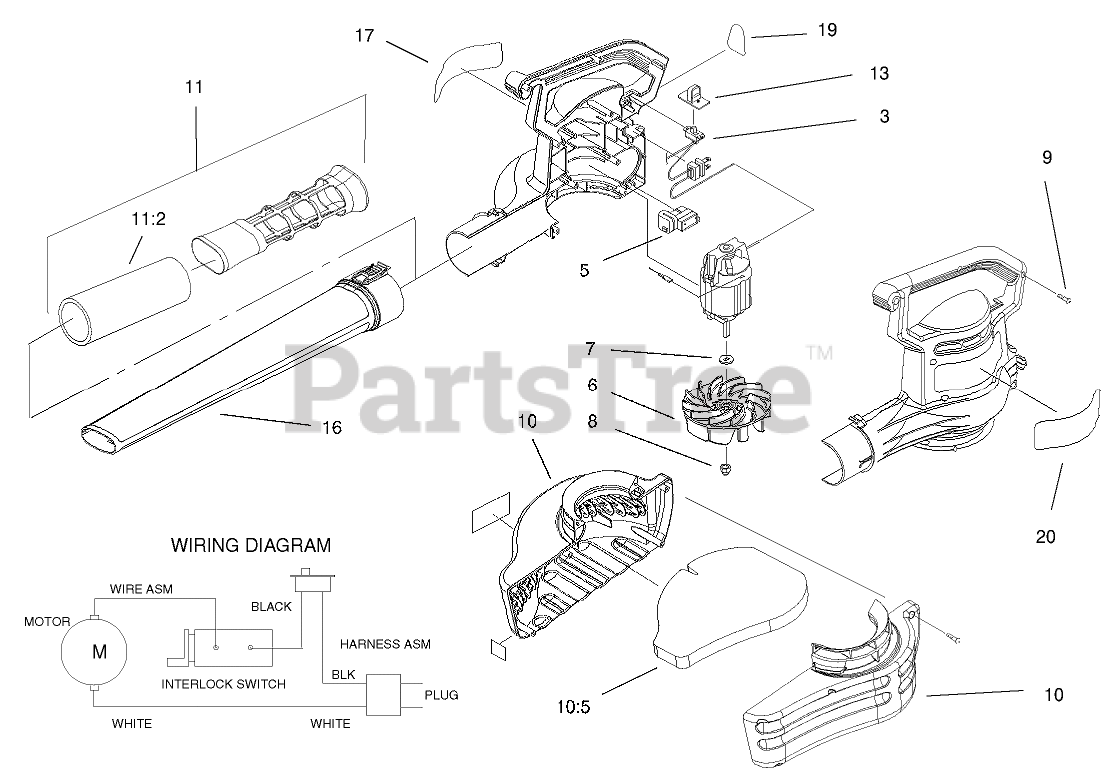

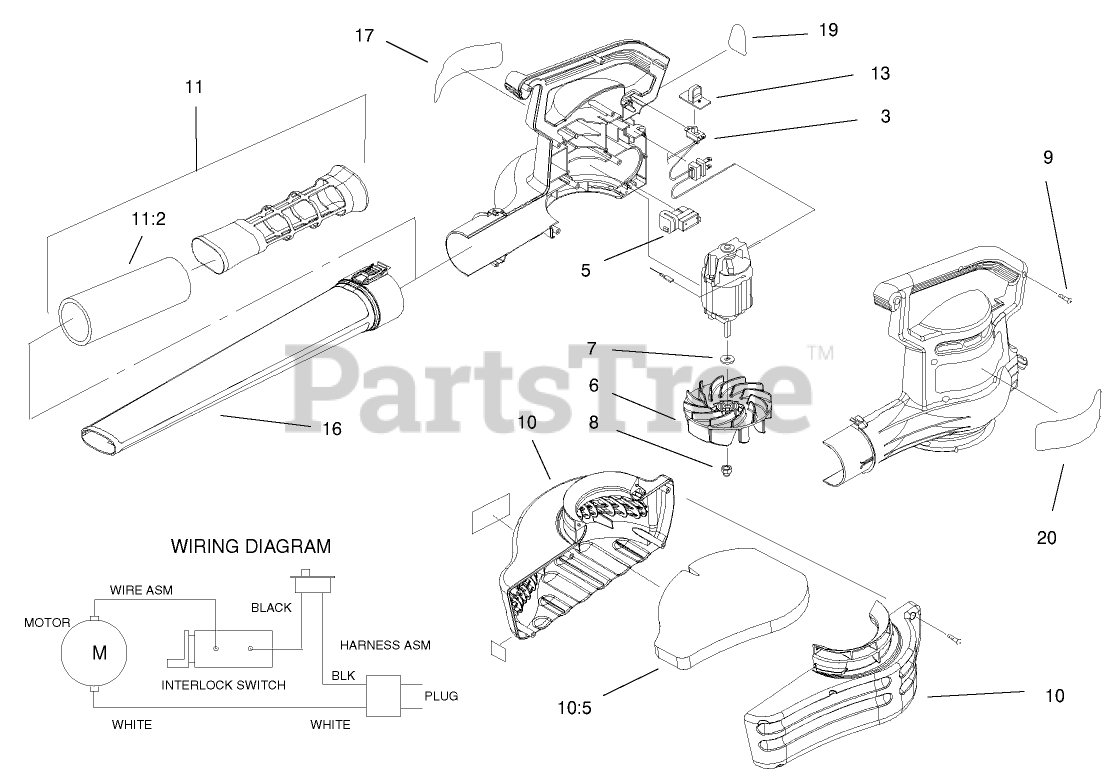

BLOWERVAC ASSEMBLY Parts Diagram

  • Title

3

Toro 100-9053

WIRE HARNESS

$

$

Not available

5

Toro 95-3286

SWITCH - INTERLOCK

$17.99

$

Usually ships in 3-6 days

0

6

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$34.99

$

In Stock, Qty 20+

0

7

Toro 93-0585

WASHER

$1.49

$

In Stock, Qty 8

0

8

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-1223

ASM-QUIETECH INLET COVER

$

$

Not available

10:5

Toro 98-3174

FOAM - INLET

$

$

Not available

11

Toro 100-1224

ASM-Quietech Tube Insert

$

$

Currently unavailable

11:2

Toro 98-3159

FOAM - INSERT

$

$

Not available

16

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

$

$

Not available

17

Toro 100-2462

DECAL - WARNING

$

$

Not available

19

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

20

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available
