51598 (225) - Lawn-Boy Ultra Blower Vacuum (SN: 230000001 - 230999999) (2003) VACUUM TUBE AND BAG ASSEMBLY Parts Diagram

Ultra Blower Vacuum

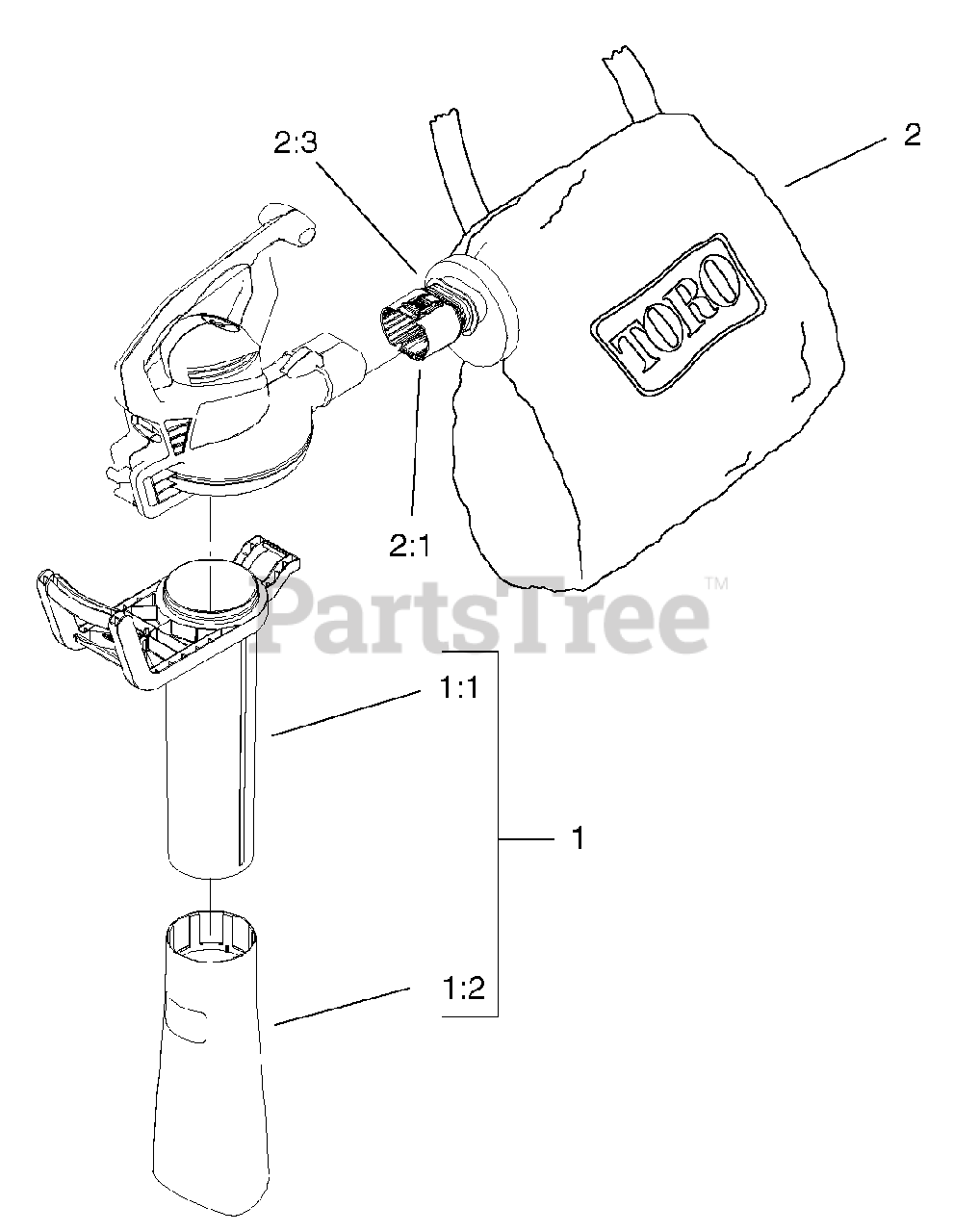

VACUUM TUBE AND BAG ASSEMBLY Parts Diagram

  • Title
1

Vac Tube ASM

Note: Not serviced separately

$

$

Not available

1:1

Lawn-Boy 100-9066

TUBE-VAC, UPPER
(Superseded to 104-3844)

$

$

Not available

1:2

Lawn-Boy 100-9074

TUBE-VAC, LOWER
(Superseded to 104-3844)

$

$

Not available

2

Lawn-Boy 104-3809

BAG ASM
(Superseded to 106-6025)

$123.99

$

Usually ships in 3-6 days

0

2:1

Lawn-Boy 100-9065

COLLAR-BAG

$

$

Not available

2:3

Lawn-Boy 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0
