51603 (TC 300) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) CARBURETOR ASSEMBLY NO. 45-1840 Parts Diagram

String Trimmer

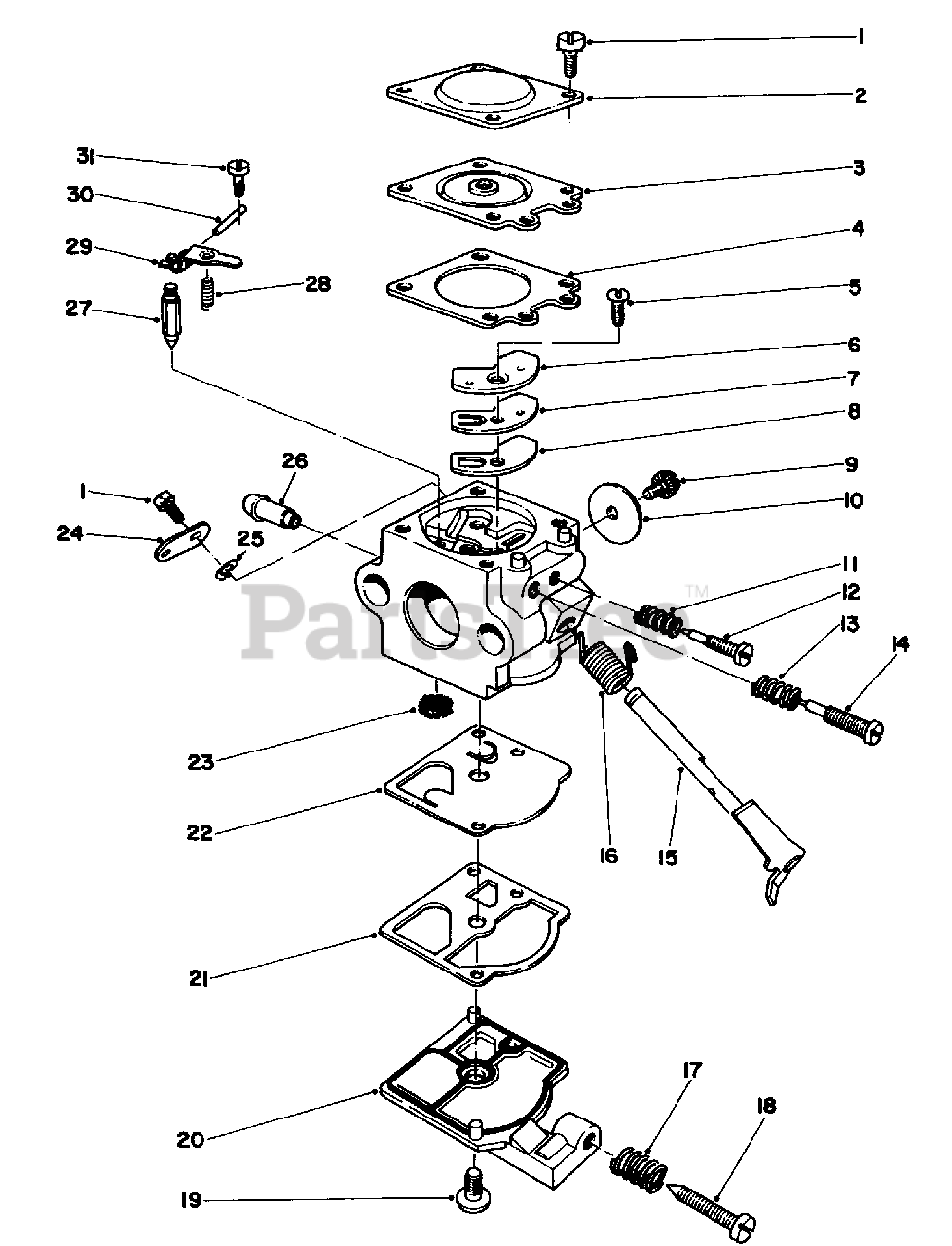

CARBURETOR ASSEMBLY NO. 45-1840 Parts Diagram

  • Title

1

Lawn-Boy 41-1070

Screw-Metering Cover & Throttle Lever

$

$

Not available

2

Lawn-Boy 41-1060

Cover-Metering Diaphragm

$

$

Not available

3

Lawn-Boy 41-1050

Diaphragm Assembly-Metering

$

$

Not available

4

Lawn-Boy 41-1040

Gasket-Metering Diaphragm

$

$

Not available

5

Lawn-Boy 41-1110

Screw-Circuit Plate

$

$

Not available

6

Lawn-Boy 41-1100

Plate Assembly-Circuit

$

$

Not available

7

Lawn-Boy 41-1090

Diaphragm-Circuit Check Valve

$

$

Not available

8

Lawn-Boy 41-1080

Gasket-Circuit Plate

$

$

Not available

9

Lawn-Boy 46-4680

Screw-Throttle Valve
(Superseded to 45-2780)

$

$

Not available

10

Lawn-Boy 34-6730

Valve-Throttle

$

$

Not available

11

Lawn-Boy 41-0860

Spring-Needle (Idle)

$

$

Not available

12

Lawn-Boy 41-0810

Needle-Idle

$

$

Not available

13

Lawn-Boy 41-0820

Spring-Needle (Hi)

$

$

Not available

14

Lawn-Boy 41-0850

Needle Hi Speed

$

$

Not available

15

Lawn-Boy 46-4660

Shaft Assembly-Throttle

$

$

Not available

16

Lawn-Boy 41-0720

Spring-Throttle Lever

$

$

Not available

17

Lawn-Boy 46-4700

Spring-Idle Screw

$

$

Not available

18

Lawn-Boy 46-4690

Screw-Idle Adjust

$

$

Not available

19

Lawn-Boy 41-0700

Screw-Pump Cover

$

$

Not available

20

Lawn-Boy 464650

Cover-Fuel Pump

$

$

Currently unavailable

21

Lawn-Boy 41-0920

Gasket-Fuel Pump

$

$

Not available

22

Lawn-Boy 41-0710

Diaphragm-Fuel Pump
(Superseded to 62-5800)

$

$

Not available

23

Lawn-Boy 46-4720

Screen-Fuel Inlet

$

$

Not available

24

Lawn-Boy 46-4380

Lever-Throttle

$

$

Not available

25

Lawn-Boy 46-4370

Ring-Throttle Retainer

$

$

Not available

26

Lawn-Boy 46-4710

Fitting Fuel Inlet

$

$

Not available

27

Lawn-Boy 41-1010

Valve-Inlet Needle

$

$

Not available

28

Lawn-Boy 34-6790

Spring-Metering Lever

$

$

Not available

29

Lawn-Boy 41-0880

Lever-Metering

$

$

Not available

30

Lawn-Boy 41-1020

Pin-Metering Lever

$

$

Not available

31

Lawn-Boy 41-1030

Screw-Metering Pin

$

$

Not available

Lawn-Boy 46-4740

Kit-OEM Repair (Incl. Ref. #1, 5, 9 & 11 -14, 16, 23, 27-31)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-4750

Kit-KWIK Repair (Incl. Ref. #1, 34, 7-9, 21-23 & 27-30)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 41-8040

Kit-Gasket/Diaphragm (Incl. Ref.#3,4,8,7, 21 & 22)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-4730

Kit Screen & Clip

Note: Not Illustrated

$

$

Not available
