51603 (TC 300) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

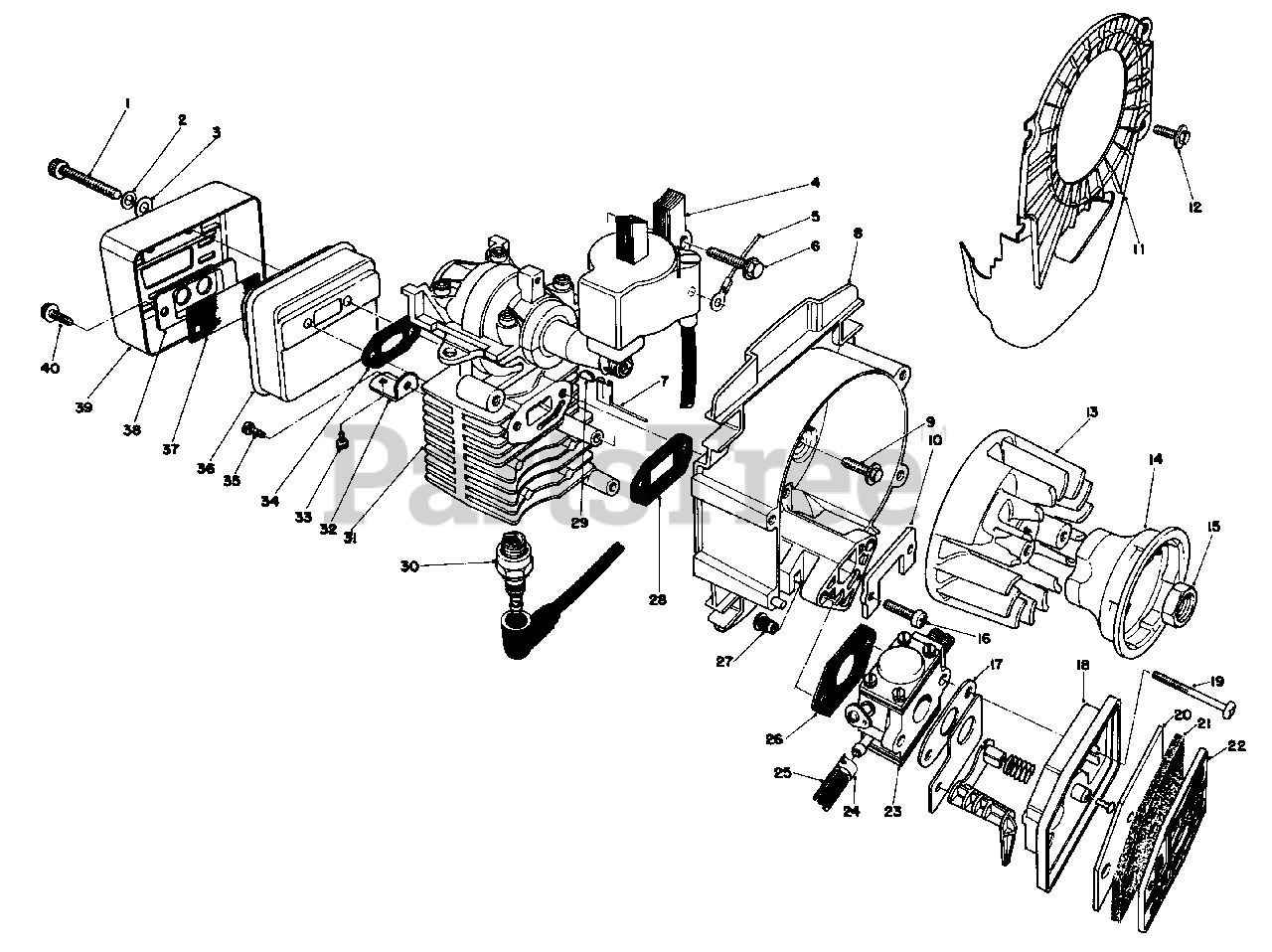

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 45-1450

Screw Muffler

$

$

Not available

2

Lawn-Boy 3253-17

Lockwasher

$0.99

$

In Stock, Qty 14

0

3

Lawn-Boy 3256-51

Flatwasher

$0.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 45-0230

CDI Module

$

$

Not available

5

Lawn-Boy 45-0610

Wire, Ground/Switch

$

$

Not available

6

Lawn-Boy 45-0640

Screw CDI

$

$

Not available

7

Lawn-Boy 45-0620

Wire, Coil/Switch

$

$

Not available

8

Lawn-Boy 45-2020

Backing Plate Assembly (Incl. Ref. #31)

$

$

Not available

9

Lawn-Boy 45-0710

Screw, Backing Plate
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 45-0540

Plate, Stress

$

$

Not available

11

Lawn-Boy 45-1850

Cooling Shroud

$

$

Not available

12

Lawn-Boy 45-0630

Screw, Shroud

$

$

Not available

13

Lawn-Boy 45-0240

Flywheel

$

$

Not available

14

Lawn-Boy 45-0130

Cup, Starter

$

$

Not available

15

Lawn-Boy 3220-5

Nut, Flywheel

$1.99

$

In Stock, Qty 13

0

16

Lawn-Boy 45-0700

Screw, Intake

$

$

Not available

17

Lawn-Boy 45-1910

Gasket, Choke

$

$

Not available

18

Lawn-Boy 45-1980

Choke & Spitback Cup Assembly

$

$

Not available

19

Lawn-Boy 45-1800

Screw, Carburetor

$

$

Not available

20

Lawn-Boy 45-1880

Filter, Felt

$

$

Not available

21

Lawn-Boy 45-1890

Filter, Foam

$

$

Not available

22

Lawn-Boy 45-1900

Cover, Filter

$15.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 45-1840

Carburetor
(Superseded to 45-2870)

$

$

Not available

24

Lawn-Boy 2412-80

Clamp, Fuel Line

$5.49

$

In Stock, only 1 left!

0

25

Lawn-Boy 45-1920

Hose, Fuel Line
(Superseded to 46-4830)

$

$

Not available

26

Lawn-Boy 45-1790

Gasket, Carburetor
(Superseded to 45-3060)

$9.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 45-2110

Insert Threaded

$

$

Not available

28

Lawn-Boy 45-1960

Gasket, Intake
(Superseded to 45-2990)

$8.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 45-0470

Key Flywheel

$

$

Not available

30

Lawn-Boy 45-0320

Spark Plug

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 45-2210

Short Block

$

$

Not available

32

Lawn-Boy 45-1500

Tab, Heat Shield

$

$

Not available

33

Lawn-Boy 45-1530

Screw, Heat Shield/Tab

$

$

Not available

34

Lawn-Boy 45-1950

Gasket, Exhaust

$5.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 45-1280

Screw, Tab Cylinder

$

$

Not available

36

Lawn-Boy 45-1270

Muffler Assembly (Incl. Ref. #37,38 & 40)

$

$

Not available

37

Lawn-Boy 45-1210

Screen, Spark Arrestor
(Superseded to 45-2390)

$

$

Not available

38

Lawn-Boy 45-1190

Plate, Muffler Outlet

$

$

Not available

39

Lawn-Boy 45-1360

Heat Shield, Muffler

$

$

Not available

40

Lawn-Boy 32140-102

Screw, Outlet Plate

$

$

Not available

Lawn-Boy 221-723

Engine Complete

Note: Not Illustrated

$

$

Not available
