51603 (TC 300) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE HOUSING ASSEMBLY Parts Diagram

String Trimmer

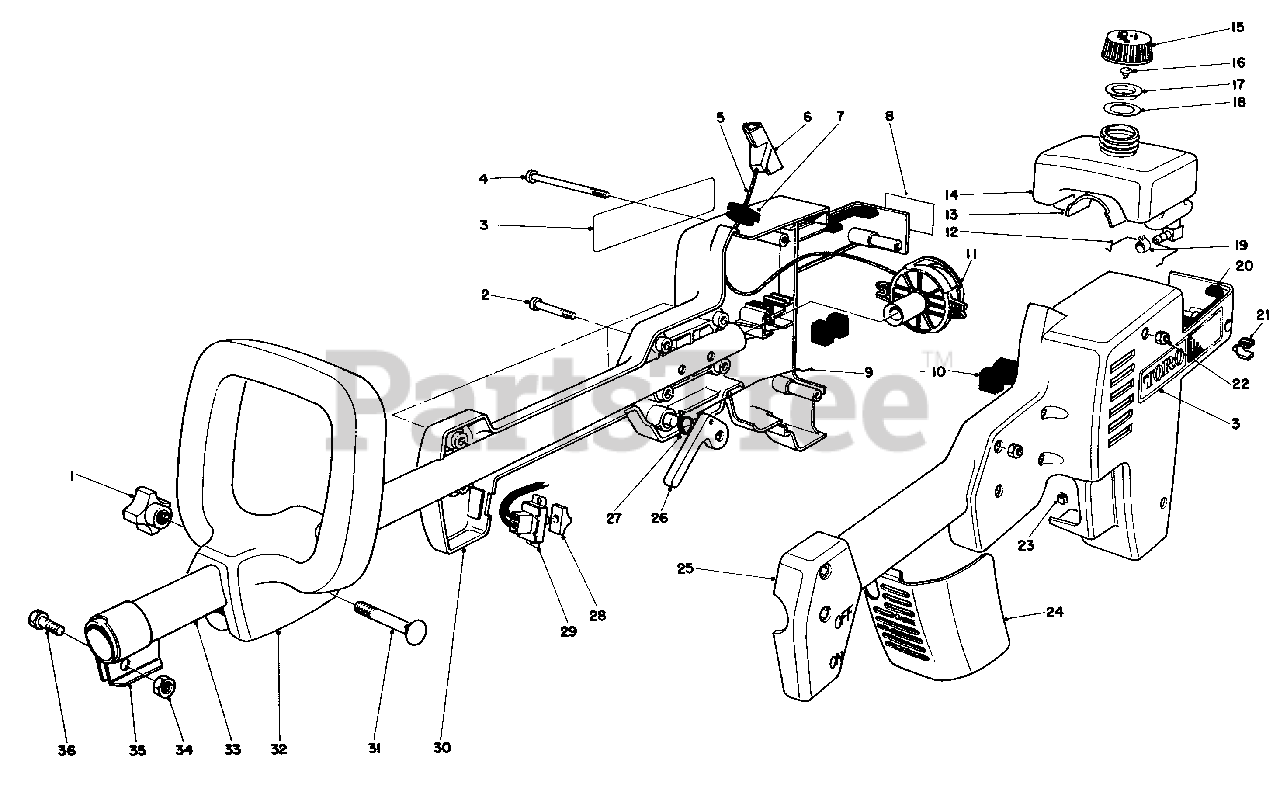

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 42-5890

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 3250-23

Cross Recess Pan Hd. Machine Screw

$2.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 444530

Decal-Toro TC300

$

$

Currently unavailable

4

Lawn-Boy 3250-22

Cross Recess Pan Hd. Machine Screw

$4.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 45-1590

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

6

Lawn-Boy 38-6570

Handle-Starter

$

$

Not available

7

Lawn-Boy 45-1580

Bushing-Rope

$

$

Not available

8

Lawn-Boy 424250

Decal-Hot Surface

$

$

Currently unavailable

9

Lawn-Boy 44-7430

Link-Throttle

$

$

Not available

10

Lawn-Boy 42-5660

Mount-Isolation

$

$

Not available

11

Lawn-Boy 45-0190

Starter Assembly (Incl. Ref. #5-7)

$

$

Not available

12

Lawn-Boy 42-6230

Clip-Crankcase Pad

$

$

Not available

13

Lawn-Boy 42-6240

Pad-Crankcase

$

$

Not available

14

Lawn-Boy 42-5600

Tank-Gas

$

$

Not available

15

Lawn-Boy 42-5880

Gas Cap Assembly (Incl. Ref. #16-18)
(Superseded to 52-3610)

$25.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 42-5760

Valve-Umbrella/Combination
(Superseded to 42-5600)

$

$

Not available

17

Lawn-Boy 42-5680

Insert Gas Cap

$

$

Not available

18

Lawn-Boy 42-5910

Gasket-Gas Cap
(Superseded to 80-4730)

$

$

Not available

19

Lawn-Boy 2412-80

Clamp-Fuel Line

$5.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 42-5590

Bumper-Gas Tank

$

$

Not available

21

Lawn-Boy 424040

Grommet

$

$

Currently unavailable

22

Lawn-Boy 3296-2

Locknut

$2.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 249-32

S-Clip

$

$

Not available

24

Lawn-Boy 44-6720

Cover-Air Cleaner

$

$

Not available

25

Lawn-Boy 44-6520

Housing-Engine L.H.

$

$

Not available

26

Lawn-Boy 42-5630

Lever Throttle

$

$

Not available

27

Lawn-Boy 42-5640

Spring-Torsion

$32.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 218-507

Cover-Switch

$

$

Not available

29

Lawn-Boy 42-6000

Switch

$17.99

$

In Stock, Qty 10

0

30

Lawn-Boy 11-2279

Housing Engine R.H. (Incl. Ref. #8)

$

$

Not available

31

Lawn-Boy 3-7253

Bolt Carriage
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 42-5550

Handle-Secondary

$

$

Not available

33

Lawn-Boy 42-5570

Tube-Upper Shaft Housing

$

$

Not available

34

Lawn-Boy 3296-29

Locknut

$2.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 42-5830

Clamp-Pole

$

$

Not available

36

Lawn-Boy 322-3

Capscrew

$0.99

$

In Stock, Qty 20+

0
