51603 (TC 300) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) SHAFT & TUBE ASSEMBLY Parts Diagram

String Trimmer

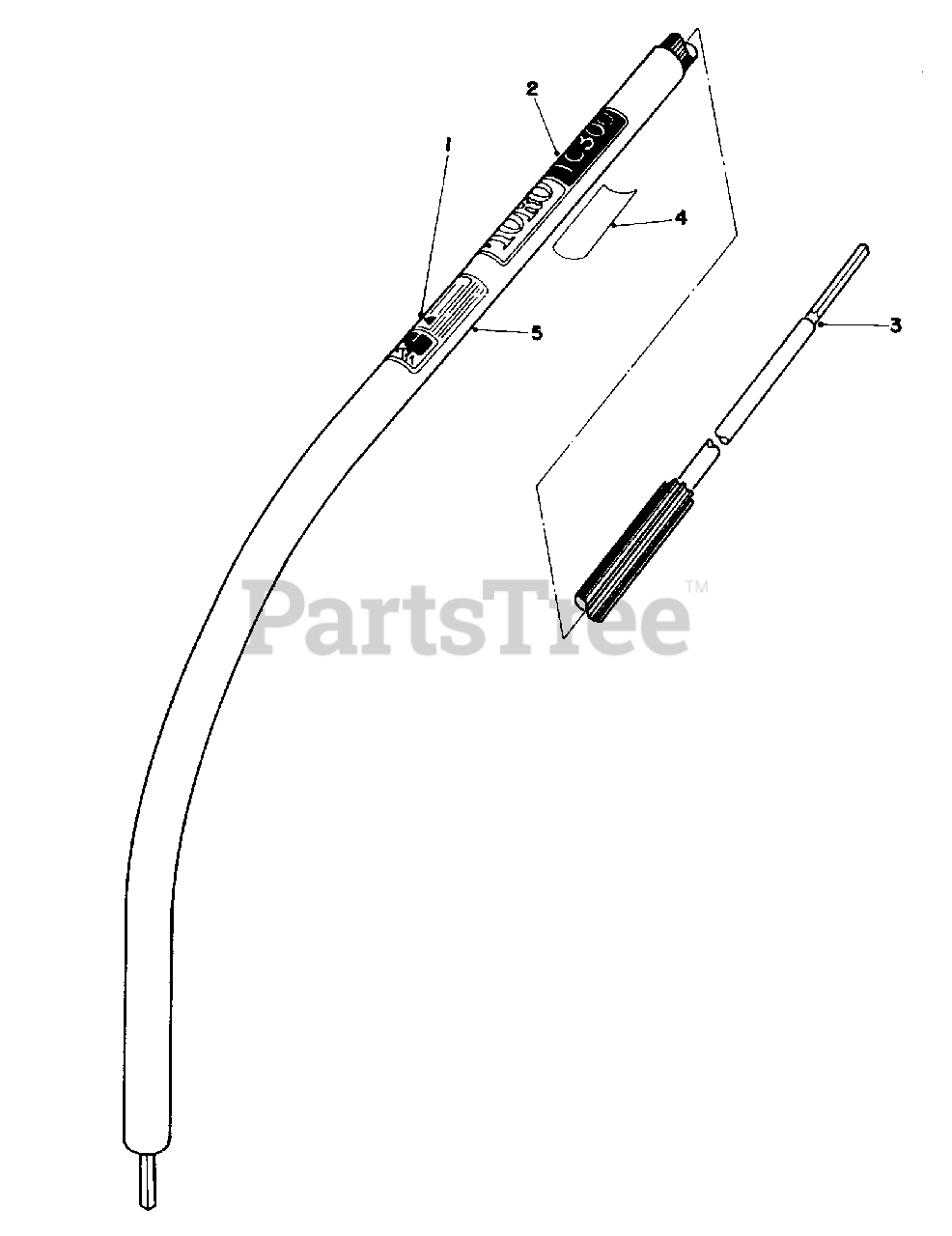

SHAFT & TUBE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 42-5850

Decal-Caution

$

$

Not available

2

Lawn-Boy 44-6530

Decal-Toro TC 300

$

$

Not available

3

Lawn-Boy 42-5700

Shaft-Flex

$

$

Not available

4

Lawn-Boy 34-3270

Replacenfnl Serial Plate

$

$

Not available

5

Lawn-Boy 11-1519

Tube-Lower Shaft Housing (Incl. Ref. #2)

$

$

Not available
