51604 (TC 400) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) ENGINE HOUSING ASSEMBLY Parts Diagram

String Trimmer

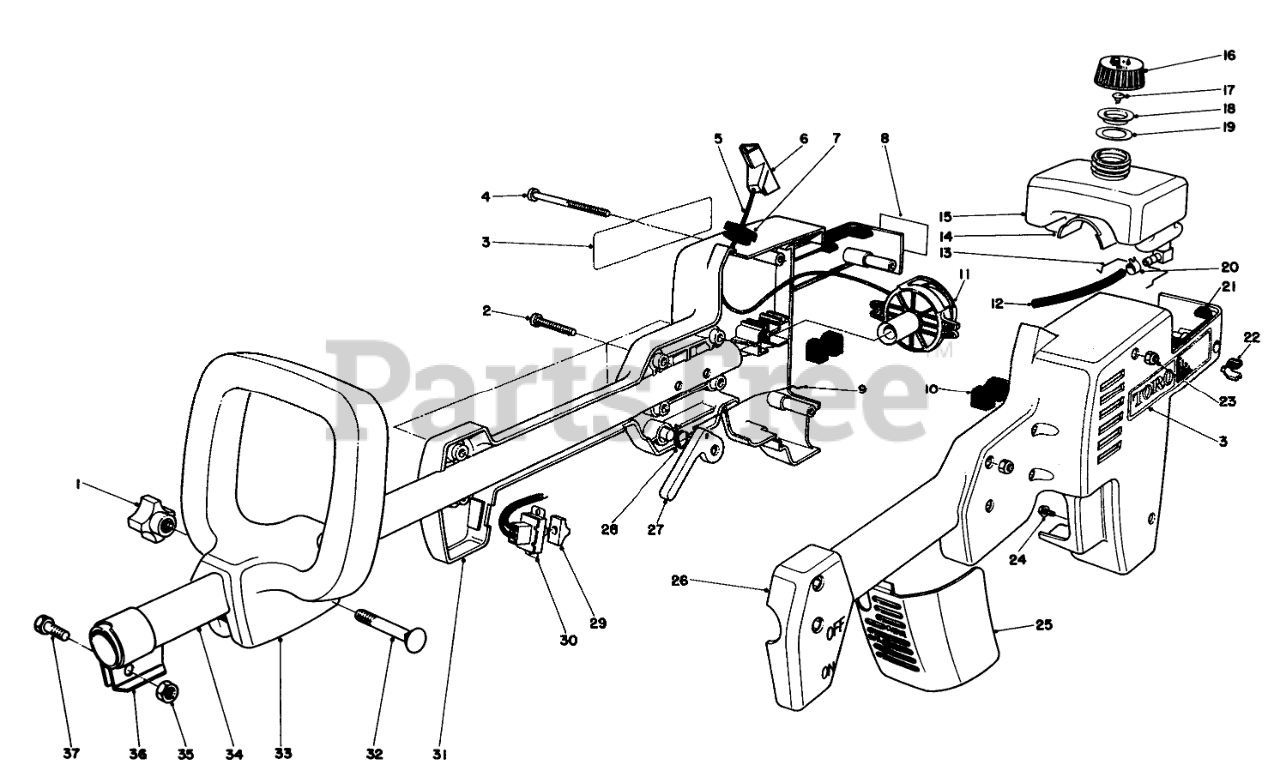

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 42-5890

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

2

Toro 46-9780

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

3

Toro 44-6610

Decal

$

$

Not available

4

Toro 46-9770

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

5

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

6

Toro 38-6570

Handle

$

$

Not available

7

Toro 45-1580

Bushing Rope

$

$

Not available

8

Toro 42-6250

Decal-Hot
(Superseded to 53-7190)

$

$

Not available

9

Toro 44-7430

Link-Throttle

$

$

Not available

10

Toro 42-5660

Isolation Mount

$

$

Not available

11

Toro 45-1730

Recoil Assy. (Incl. Ref. #5-7)

$

$

Not available

12

Toro 464830

Gas Line

$

$

Currently unavailable

13

Toro 42-6230

Clip-Crankcase Pad

$

$

Not available

14

Toro 42-6240

Crankcase Pad

$

$

Not available

15

Toro 42-5600

GAS TANK

$

$

Not available

16

Toro 42-5880

Gas Cap Assy. (Incl. Ref. #17-19)
(Superseded to 52-3610)

$25.99

$

Usually ships in 3-6 days

0

17

Toro 42-5760

Valve
(Superseded to 42-5600)

$

$

Not available

18

Toro 42-5680

Insert

$

$

Not available

19

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

20

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

21

Toro 42-5590

Bumper-Gas Tank

$

$

Not available

22

Toro 42-6040

Grommet

$

$

Not available

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

25

Toro 44-6720

Cover-Air Cleaner

$

$

Not available

26

Toro 44-6520

Housing Engine L.H.

$

$

Not available

27

Toro 42-5630

Lever Throttle

$

$

Not available

28

Toro 42-5640

TORSION SPRING

$32.99

$

Usually ships in 3-6 days

0

29

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

30

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

31

Toro 11-2279

Housing-Engine R.H. (Incl. Ref. #8)

$

$

Not available

32

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 20+

0

33

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

34

Toro 44-7500

Tube-Upper Shaft

$

$

Not available

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 42-5830

Clamp-Pole

$

$

Not available

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
