51604 (TC 400) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) SHAFT & TUBE ASSEMBLY Parts Diagram

String Trimmer

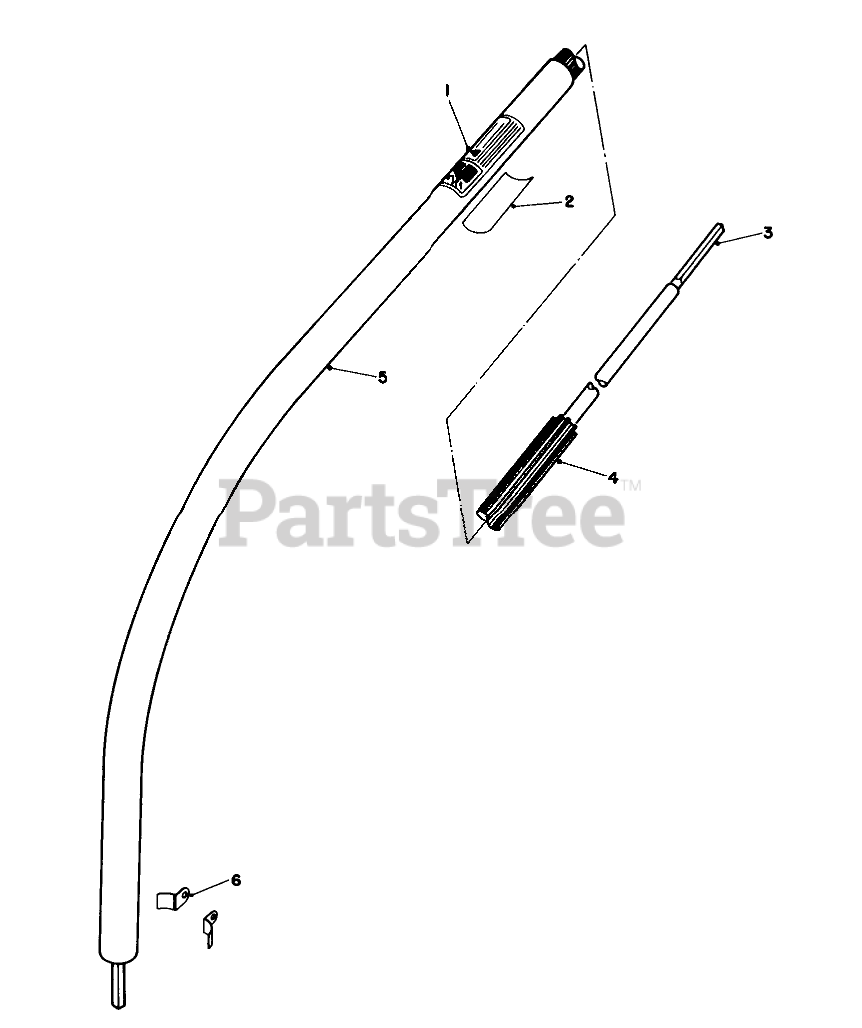

SHAFT & TUBE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

2

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

3

Toro 47-5471

Shaft-Flex Assembly (Incl. Ref. #4)

$

$

Not available

4

Casing-Flex Shaft

$

$

Not available

5

Toro 11-4849

Tube-Lower Shaft Assembly (Incl. Ref. #1)

$

$

Not available

6

Toro 46-9890

LOWER TUBE RETAINER

$

$

Not available
