51604 (TC 400) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) Trimmer Head Assembly Parts Diagram

String Trimmer

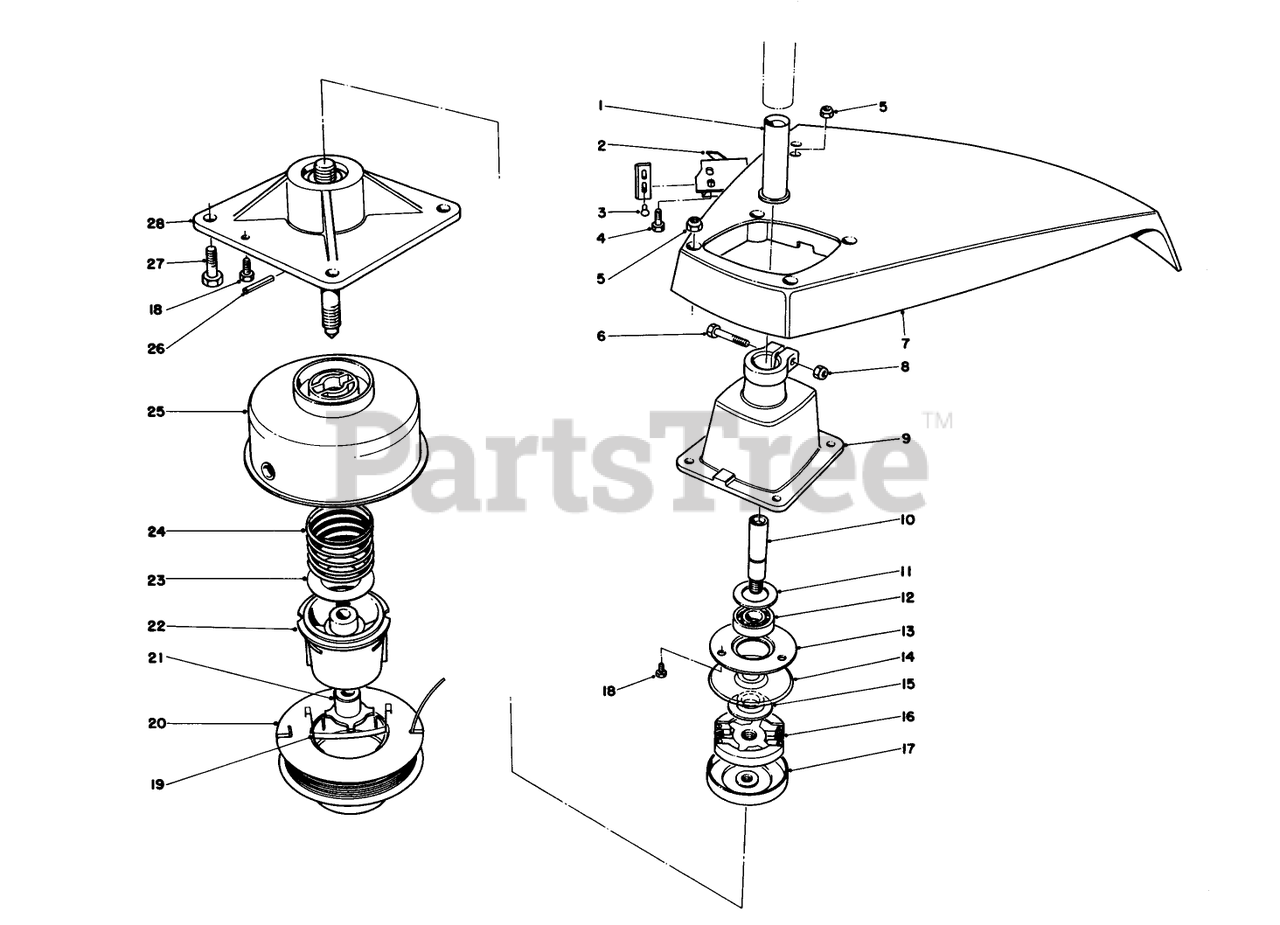

Trimmer Head Assembly Parts Diagram

  • Title

1

Toro 44-6640

INSERT-POLE END

$

$

Not available

2

Toro 42-5920

DISCONTINUED

$

$

Not available

3

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

4

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

6

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 17

0

7

Toro 44-6650

DISCONTINUED

$

$

Not available

8

Toro 329642

Nut

$

$

Currently unavailable

9

Toro 46-6720

DISCONTINUED

$

$

Not available

10

Toro 44-6590

DISCONTINUED

$

$

Not available

11

Toro 44-6620

DISCONTINUED

$

$

Not available

12

Toro 251-294

See Supercession: 49-2410
(Superseded to 49-2410)

$55.99

$

Usually ships in 3-6 days

0

13

Toro 44-6680

DISCONTINUED

$

$

Not available

14

Toro 46-6700

DISCONTINUED

$

$

Not available

15

Toro 44-6670

DISCONTINUED

$

$

Not available

16

Toro 44-6660

DISCONTINUED

$

$

Not available

17

Toro 44-2640

DISCONTINUED

$

$

Not available

18

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 12

0

19

Toro 33-8940

DISCONTINUED

$

$

Not available

20

Toro 434990

Prewound Spool (.080)

$

$

Currently unavailable

Toro 43-5000

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

21

Toro 42-6050

DRIVER

$

$

Not available

22

Toro 33-6230

SPOOL CORE

$

$

Not available

23

Toro 325642

Washer

$

$

Currently unavailable

24

Toro 29-7130

SPRING COMPRESSION

$

$

Not available

25

Toro 42-5950

DRUM/EYELET

$

$

Not available

26

Toro 32121-95

See Supercession: 32121-108
(Superseded to 32121-108)

$7.49

$

In Stock, only 1 left!

0

27

Toro 3290-332

DISCONTINUED

$

$

Not available

28

Toro 44-9940

DISCONTINUED

$

$

Not available
