51606 (TC 600) - Toro String Trimmer (SN: 002000001 - 002999999) (1982) ACCESSORY KIT NO. 44-9870 (OPTIONAL) Parts Diagram

String Trimmer

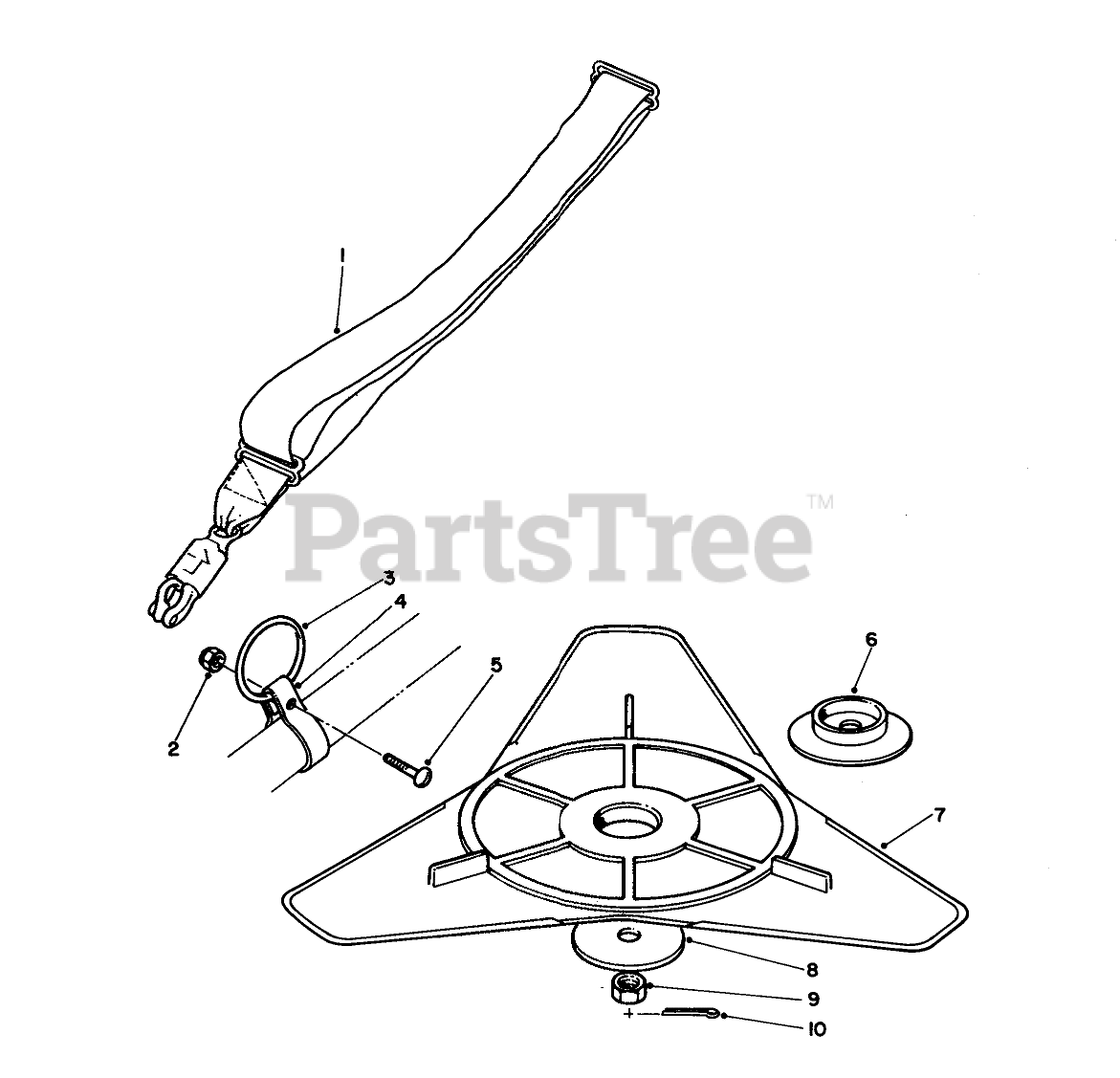

ACCESSORY KIT NO. 44-9870 (OPTIONAL) Parts Diagram

  • Title

1

Toro 46-2950

Shoulder Strap

$

$

Not available

2

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

3

Ring

$

$

Not available

4

Clamp

$

$

Not available

Toro 46-2690

Clamp & Ring Kit (Incl. Ref. #2-5)

Note: Not illustrated

$

$

Not available

5

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, Qty 17

0

6

Toro 41-6890

Adapter-Blade
(Superseded to 41-4440)

Note: Note: Used with steel blades only.

$100.99

$

Usually ships in 3-6 days

0

7

Toro 46-2790

FLEX BLADE PKG

$113.99

$

Usually ships in 3-6 days

0

8

Toro 41-4430

WASHER

$

$

Not available

9

Toro 41-5410

NUT

$9.49

$

Usually ships in 3-6 days

0

10

Toro 41-5330

Split Pin
(Superseded to 327-23)

$6.49

$

Usually ships in 3-6 days

0

Toro 41-4440

Blade Adapter Kit (Incl. Ref. #6, 9-10)

Note: Not illustrated

$100.99

$

Usually ships in 3-6 days

0
