51607 (TC 700) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) ENGINE ASSEMBLY Parts Diagram

String Trimmer

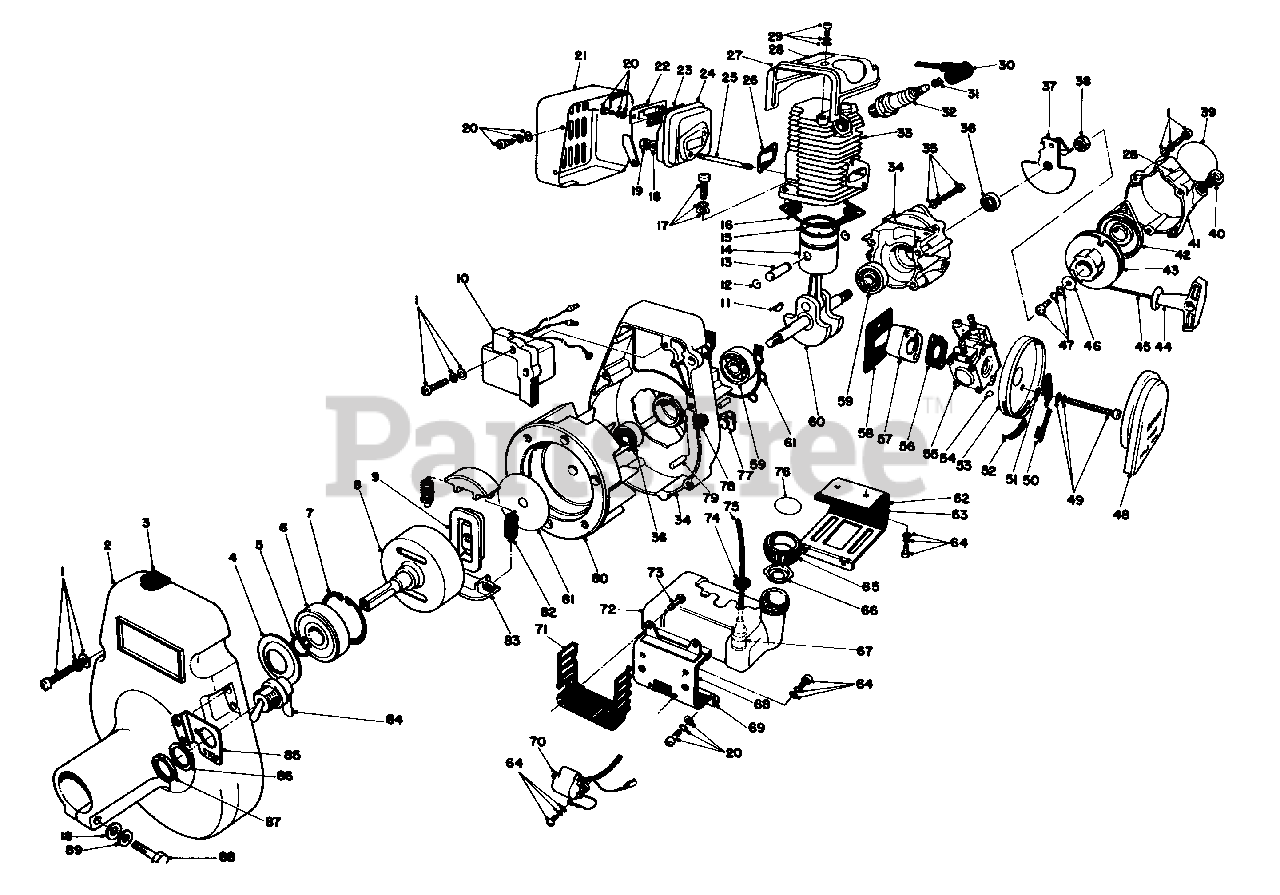

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 41-5170

Screw with Washer & Lockwasher

$

$

Not available

2

Lawn-Boy 46-4020

Fan Cover

$

$

Not available

3

Lawn-Boy 46-4010

Plug

$

$

Not available

4

Lawn-Boy 34-7810

Stopper

$

$

Not available

5

Lawn-Boy 41-5550

Retaining Ring

$

$

Not available

6

Lawn-Boy 43-9820

Ball Bearing

$

$

Not available

7

Lawn-Boy 41-5580

Retaining Ring

$

$

Not available

8

Lawn-Boy 34-7740

Clutch Drum

$

$

Not available

9

Lawn-Boy 43-9810

Clutch Boss

$

$

Not available

10

Lawn-Boy 46-4000

Ignition Module

$

$

Not available

11

Lawn-Boy 41-6160

Woodruff Key

$

$

Not available

12

Lawn-Boy 41-0160

Circlip, Piston Pin

$

$

Not available

13

Lawn-Boy 46-3830

Piston Pin

$

$

Not available

14

Lawn-Boy 43-9320

Piston

$

$

Not available

15

Lawn-Boy 41-0070

Piston Ring

$

$

Not available

16

Lawn-Boy 43-9340

Gasket, Cylinder Base
(Superseded to 63-5070)

$

$

Not available

17

Lawn-Boy 41-5290

Screw with Washer & Lockwasher

$

$

Not available

18

Lawn-Boy 41-5440

Washer

$

$

Not available

19

Lawn-Boy 46-3840

Locknut
(Superseded to 41-4250)

$

$

Not available

20

Lawn-Boy 41-5160

Screw with Washer & Lockwasher

$

$

Not available

21

Lawn-Boy 43-9450

Muffler Cover

$

$

Not available

22

Lawn-Boy 43-9440

Lid-Muffler

$

$

Not available

23

Lawn-Boy 43-9430

Screen

$

$

Not available

24

Lawn-Boy 43-9420

Muffler Body

$

$

Not available

25

Lawn-Boy 43-9390

Stud Bolt

$

$

Not available

26

Lawn-Boy 43-9410

Gasket, Muffler

$

$

Not available

27

Lawn-Boy 43-9370

Cylinder Cover

$

$

Not available

28

Lawn-Boy 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

29

Lawn-Boy 41-5190

Screw with Washer & Lockwasher

$

$

Not available

30

Lawn-Boy 41-2520

Cap-Spark Plug

$

$

Not available

31

Lawn-Boy 41-2510

Coil-Spring-Plug Cap

$

$

Not available

32

Spark Plug (CJ-8)

Note: Obtain Locally

$

$

Not available

33

Lawn-Boy 43-9350

Cylinder

$

$

Not available

34

Lawn-Boy 46-3800

Crankcase Set

$

$

Not available

35

Lawn-Boy 41-5260

Screw with Washer & Lockwasher

$

$

Not available

36

Lawn-Boy 43-9290

Oil Seal

$

$

Not available

37

Lawn-Boy 43-9510

Ratchet Assembly

$

$

Not available

38

Lawn-Boy 41-5390

Nut

$

$

Not available

39

Lawn-Boy 33-8340

Decal

$

$

Not available

40

Lawn-Boy 46-3870

Rope Guide

$

$

Not available

41

Lawn-Boy 46-3880

Starter Case

$

$

Not available

42

Lawn-Boy 34-7900

Rewind Spring

$

$

Not available

43

Lawn-Boy 43-9540

Recoil Drum

$

$

Not available

44

Lawn-Boy 34-7930

Starter Handle

$

$

Not available

45

Lawn-Boy 34-7910

Starter Rope
(Superseded to 65-3270)

$

$

Not available

46

Lawn-Boy 46-3860

Washer

$

$

Not available

47

Lawn-Boy 41-5150

Screw with Lockwasher

$

$

Not available

48

Lawn-Boy 46-3960

Air Filter

$

$

Not available

49

Lawn-Boy 34-8610

Screw with Washer & Lockwasher

$

$

Not available

50

Lawn-Boy 43-9720

Choke Shutter

$

$

Not available

51

Lawn-Boy 41-3610

Spacer

$

$

Not available

52

Lawn-Boy 43-9710

Grommet

$

$

Not available

53

Lawn-Boy 43-9700

Case-Air Cleaner

$

$

Not available

54

Lawn-Boy 46-3950

Clip-Fuel Pipe

$

$

Not available

55

Lawn-Boy 46-3940

Carburetor Assembly

$

$

Not available

56

Lawn-Boy 46-3930

Gasket
(Superseded to 43-9620)

$

$

Not available

57

Lawn-Boy 43-9610

Insulator

$

$

Not available

58

Lawn-Boy 46-3920

Gasket

$20.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 41-5670

Bearing

$

$

Not available

60

Lawn-Boy 46-3790

Crankshaft Assembly

$

$

Not available

Lawn-Boy 43-9240

Needle Bearing (Incl. with Ref.#60)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 43-9250

Spacer-Piston Pin (Incl. with Ref. #60)

Note: Not Illustrated

$

$

Not available

61

Lawn-Boy 43-9200

Gasket-Crankcase
(Superseded to 63-5070)

$

$

Not available

62

Lawn-Boy 43-9560

Bracket-Fuel Tank

$

$

Not available

63

Lawn-Boy 43-9670

Cushion

$

$

Not available

64

Lawn-Boy 34-8520

Screw with Washer & Lockwasher
(Superseded to 47-6450)

$

$

Not available

65

Lawn-Boy 41-1630

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

66

Lawn-Boy 46-3910

Check Valve

$

$

Not available

67

Lawn-Boy 43-9660

Fuel Strainer

$

$

Not available

68

Lawn-Boy 43-9260

Cushion

$

$

Not available

69

Lawn-Boy 46-3820

Bracket-Fuel Tank

$

$

Not available

70

Lawn-Boy 46-3980

Ignition Coil

$

$

Not available

71

Lawn-Boy 43-9380

Dust Filter

$

$

Not available

72

Lawn-Boy 43-9590

Fuel Tank

$

$

Not available

73

Lawn-Boy 34-8630

Self Tapping Screw

$

$

Not available

74

Lawn-Boy 41-1880

Grommet

$

$

Not available

75

Lawn-Boy 41-1820

Fuel Pipe
(Superseded to 41-1830)

$

$

Not available

76

Lawn-Boy 46-3900

Decal Fuel Mix

$

$

Not available

77

Lawn-Boy 46-3970

Cord Holder

$

$

Not available

78

Lawn-Boy 46-3810

Grommet

$

$

Not available

79

Lawn-Boy 41-0330

Pin-Knock

$

$

Not available

80

Lawn-Boy 46-3990

Flywheel

$

$

Not available

81

Lawn-Boy 43-9780

Side Plate

$

$

Not available

82

Lawn-Boy 41-2790

Clutch Spring

$

$

Not available

83

Lawn-Boy 41-2710

Clutch Shoe

$

$

Not available

84

Lawn-Boy 43-9850

Switch (Incl. Ref. #86 & 87)

$53.99

$

Usually ships in 3-6 days

0

85

Lawn-Boy 43-9870

Bracket-Switch

$

$

Not available

86

Washer

$

$

Not available

87

Nut

$

$

Not available

88

Lawn-Boy 43-9860

Bolt

$

$

Not available

89

Lawn-Boy 41-5490

Lockwasher
(Superseded to 71-1150)

$

$

Not available

Lawn-Boy 43-9400

Muffler Assembly

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-3850

Recoil Starter Assembly

Note: Not Illustrated

$

$

Not available

Lawn-Boy 43-9940

Cap Assembly-Fuel Tank

Note: Not Illustrated

$

$

Not available

Lawn-Boy 41-6810

Tool Kit, Optional

Note: Not Illustrated

$

$

Not available
