51607 (TC 700) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

String Trimmer

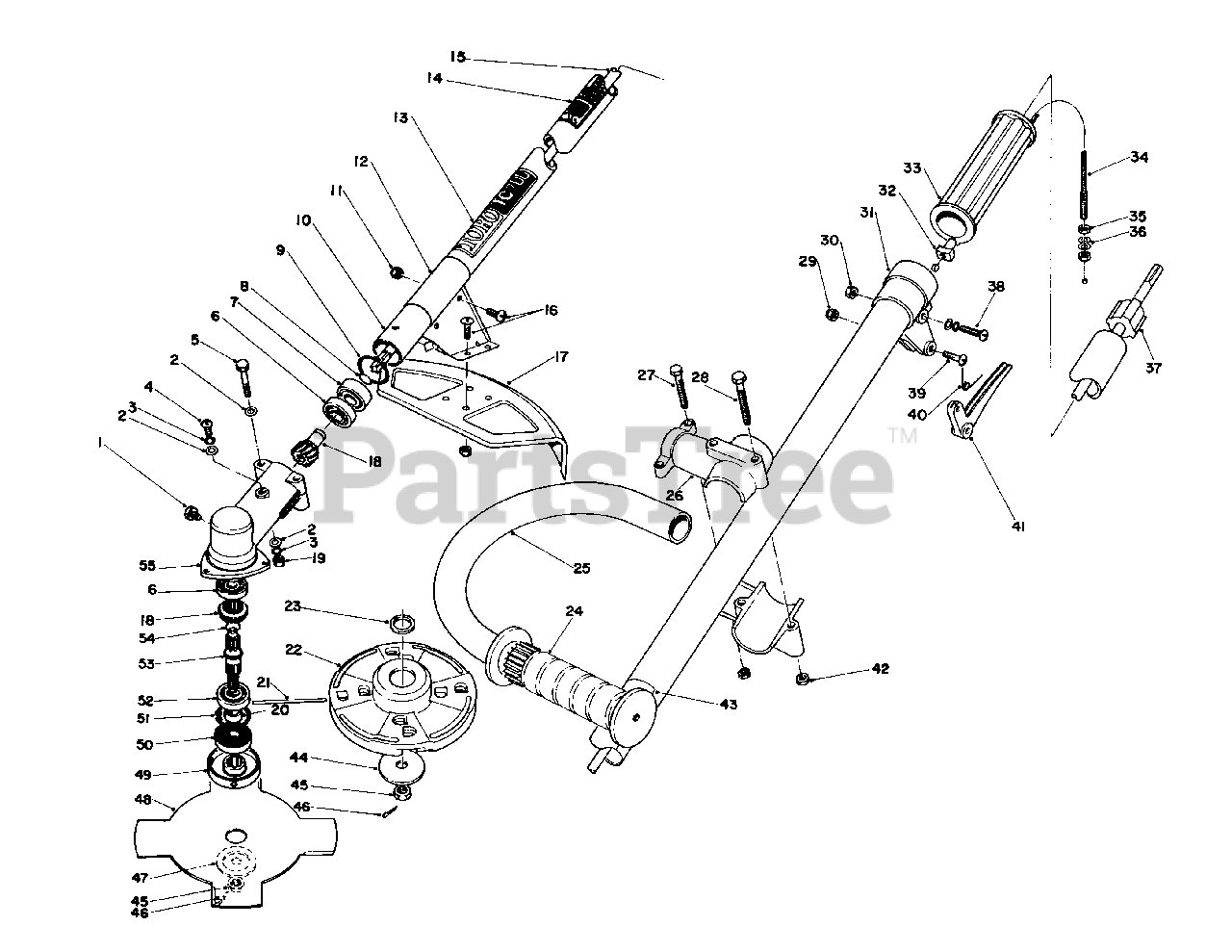

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 46-4140

Bolt

$

$

Not available

2

Lawn-Boy 41-5440

Washer

$

$

Not available

3

Lawn-Boy 41-5490

Spring Washer
(Superseded to 71-1150)

$

$

Not available

4

Lawn-Boy 41-5080

Screw

$

$

Not available

5

Lawn-Boy 46-4150

Bolt

$

$

Not available

6

Lawn-Boy 46-4130

Ball Bearing

$

$

Not available

7

Lawn-Boy 46-4120

Ball Bearing

$

$

Not available

8

Lawn-Boy 46-4110

Circlip

$

$

Not available

9

Lawn-Boy 46-4100

Circlip

$

$

Not available

10

Lawn-Boy 46-4040

Housing Assembly

$

$

Not available

11

Lawn-Boy 3296-12

Locknut

$1.49

$

In Stock, Qty 12

0

12

Lawn-Boy 44-9880

Bracket-Shield

$

$

Not available

13

Lawn-Boy 44-6710

Decal-TC 700

$

$

Not available

14

Lawn-Boy 44-9950

Decal

$

$

Not available

15

Lawn-Boy 46-4030

Shaft-Drive

$

$

Not available

16

Lawn-Boy 3251-2

Screw-Machine Rd. Hd.

$0.99

$

In Stock, Qty 5

0

17

Lawn-Boy 41-4650

Shield

$

$

Not available

18

Lawn-Boy 46-4160

Gear Set

$

$

Not available

19

Lawn-Boy 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

20

Lawn-Boy 46-4200

Spacer

$

$

Not available

21

Lawn-Boy 44-6890

Filament Line Pkg. (24 Pcs.)
(Superseded to 47-2260)

$199.99

$

Usually ships in 3-6 days

0

Lawn-Boy 44-9830

.105" Line (100 Pcs.) Optional
(Superseded to 47-2260)

Note: Not Illustrated

$199.99

$

Usually ships in 3-6 days

0

Lawn-Boy 42-0580

.130" Line (100 Pcs.) Optional

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2730

.105" Line (1 Lb. Pkg. 235 Ft.) Optional

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2740

.130" Line (3 Lb. Pkg. 450 Ft.) Optional

Note: Not Illustrated

$

$

Not available

22

Lawn-Boy 46-2810

Cutter Head (Incl. #23)

$

$

Not available

23

Lawn-Boy 44-6950

Spacer-Cutter Head

$

$

Not available

24

Lawn-Boy 235-24

Hand Grip

$

$

Not available

25

Lawn-Boy 44-7530

Tube-"J" Handle

$

$

Not available

26

Lawn-Boy 44-7520

Clamp-"J" Handle

$

$

Not available

27

Lawn-Boy 3251-13

Screw-Machine Rd. Hd.

$

$

Not available

28

Lawn-Boy 3251-10

Screw-Machine Rd. Hd.

$

$

Not available

29

Lawn-Boy 414250

Nut

$

$

Currently unavailable

30

Lawn-Boy 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

31

Lawn-Boy 464080

Bracket, Trigger

$

$

Currently unavailable

32

Lawn-Boy 41-3440

Spacer

$

$

Not available

33

Lawn-Boy 464060

Grip

$

$

Currently unavailable

34

Lawn-Boy 464070

Throttle Cable

$

$

Currently unavailable

35

Lawn-Boy 41-5380

Nut

$

$

Not available

36

Lawn-Boy 41-5450

Washer
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 464050

Bushing

$

$

Currently unavailable

38

Lawn-Boy 41-5260

Screw

$

$

Not available

39

Lawn-Boy 41-3460

Screw

$

$

Not available

40

Lawn-Boy 41-3430

Spring-Return

$

$

Not available

41

Lawn-Boy 41-3350

Throttle-Trigger

$

$

Not available

42

Lawn-Boy 3296-12

Locknut

$1.49

$

In Stock, Qty 12

0

43

Lawn-Boy 42-5850

Decal-Warning

$

$

Not available

44

Lawn-Boy 41-4430

Plate-Washer

$

$

Not available

45

Lawn-Boy 41-5410

Nut

$7.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 41-5330

Cotter Pin
(Superseded to 327-23)

$5.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 41-4440

Blade Adapter Kit (Incl. Ref. #45 & 46)

$81.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 44-9850

Brush Blade
(Superseded to 51-1240)

$

$

Not available

49

Lawn-Boy 46-2320

Plate-Blade Fixing

$

$

Not available

50

Lawn-Boy 46-4210

Oil Seal

$

$

Not available

51

Lawn-Boy 41-5580

Circlip

$

$

Not available

52

Lawn-Boy 41-5660

Ball Bearing

$

$

Not available

53

Lawn-Boy 46-4190

Shaft-P.T.O.

$

$

Not available

54

Lawn-Boy 46-4180

Circlip

$

$

Not available

55

Lawn-Boy 46-4170

Gear Housing

$

$

Not available

Lawn-Boy 46-4090

Gear Housing Assembly

Note: Not Illustrated

$

$

Not available
