51608 (TC 800) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1982) DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

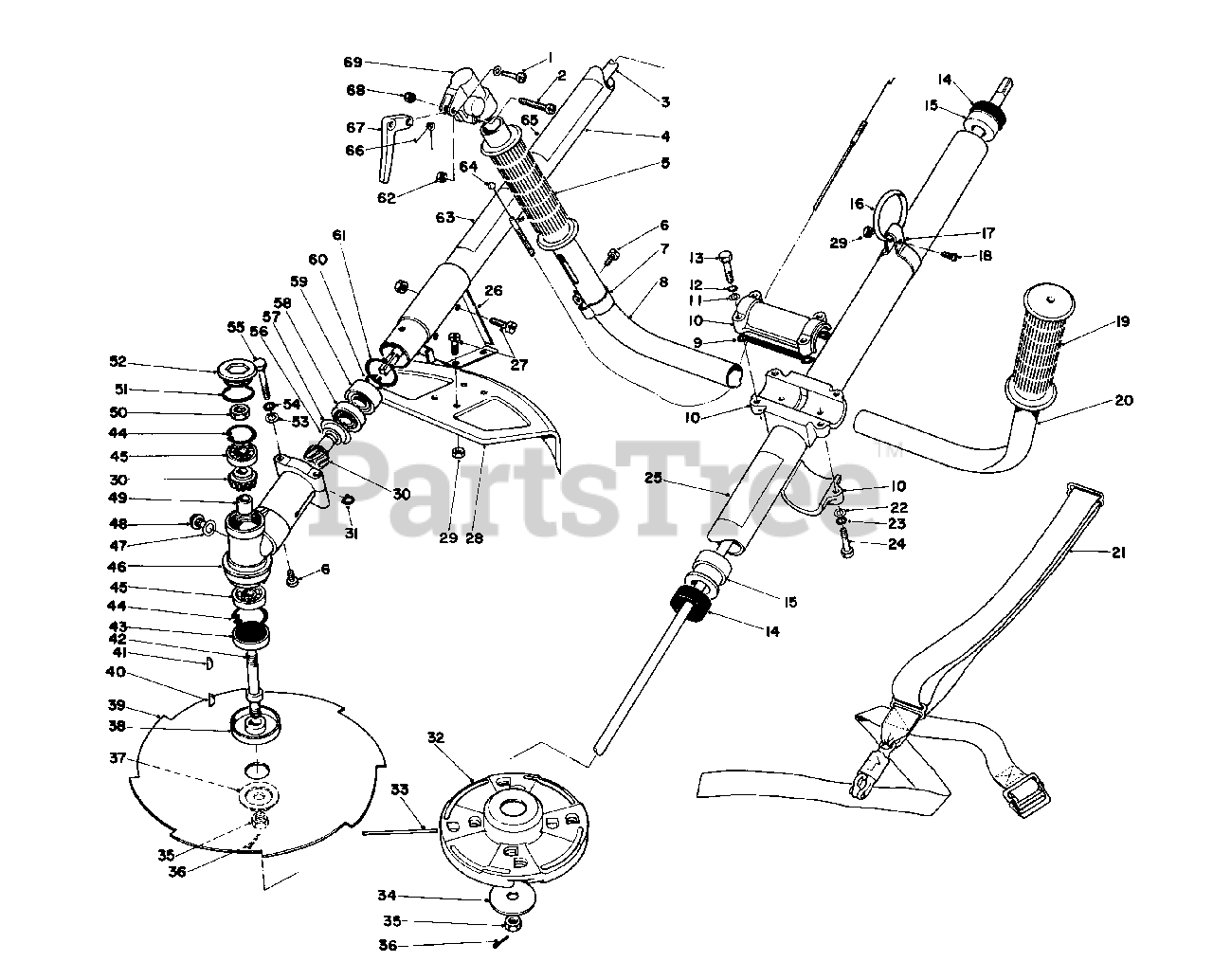

DRIVE SHAFT & TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 41-3460

Screw

$

$

Not available

2

Lawn-Boy 46-4390

Screw w/Washer

$

$

Not available

3

Lawn-Boy 41-4270

Shaft, Driving

$

$

Not available

4

Lawn-Boy 41-4360

Housing Drive Shaft (Incl. Ref. #25 & 26)

$

$

Not available

5

Lawn-Boy 235-25

Right Hand Grip

$

$

Not available

6

Lawn-Boy 41-5190

Screw

$

$

Not available

7

Lawn-Boy 41-3450

Clamp

$

$

Not available

8

Lawn-Boy 44-6840

Handle R.H.

$

$

Not available

9

Lawn-Boy 41-4240

Shim Washer

$

$

Not available

10

Lawn-Boy 41-4200

Bracket Assembly, Handle (Incl. Ref. #9-13 & 22-24)

$

$

Not available

11

Lawn-Boy 41-5440

Washer

$

$

Not available

12

Lawn-Boy 41-5490

Spring Washer
(Superseded to 71-1150)

$

$

Not available

13

Lawn-Boy 41-4810

Bolt

$

$

Not available

14

Lawn-Boy 41-4310

Bushing

$

$

Not available

15

Lawn-Boy 41-4320

Ring

$

$

Not available

16

Lawn-Boy 44-7540

Ring-Harness

$

$

Not available

17

Lawn-Boy 44-2430

Clamp-Harness

$16.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 3251-3

Screw

$0.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 235-24

Left Hand Grip

$

$

Not available

20

Lawn-Boy 44-6850

Handle L.H.

$

$

Not available

21

Lawn-Boy 46-2960

Shoulder Strap, Deluxe
(Superseded to 682075)

$

$

Not available

Lawn-Boy 46-2950

Shoulder Strap (Optional)

Note: Not Illustrated

$

$

Not available

22

Lawn-Boy 41-5450

Washer
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 41-5500

Spring Washer

$

$

Not available

24

Lawn-Boy 41-4860

Bolt

$

$

Not available

25

Lawn-Boy 44-9950

Decal-Warning

$

$

Not available

26

Lawn-Boy 44-9890

Bracket Shield

$

$

Not available

27

Lawn-Boy 3251-2

Screw

$0.99

$

In Stock, Qty 5

0

28

Lawn-Boy 41-4650

Head Guard

$

$

Not available

29

Lawn-Boy 3296-12

Locknut

$1.49

$

In Stock, Qty 12

0

30

Lawn-Boy 41-4380

Gear Set

$

$

Not available

31

Lawn-Boy 41-4370

Spacer

$

$

Not available

32

Lawn-Boy 46-2810

Cutter Head

$

$

Not available

33

Lawn-Boy 44-6890

.105 Filament Line, Pkg. of 24
(Superseded to 47-2260)

$199.99

$

Usually ships in 3-6 days

0

Lawn-Boy 44-9830

.105 Filament Line, Pkg. of 100 (Optional)
(Superseded to 47-2260)

Note: Not Illustrated

$199.99

$

Usually ships in 3-6 days

0

Lawn-Boy 46-2730

.105 Filament Line 1 lb. pkg./235 ft. (optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 42-0580

.130 Filament Line, Pkg. of 100 (optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2740

.130 Filament Line 31 lb. pkg./450 ft. (optional)

Note: Not Illustrated

$

$

Not available

34

Lawn-Boy 41-4430

Plate, Nylon Head

$

$

Not available

35

Lawn-Boy 41-5410

Nut

$7.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 3272-3

Cotter Pin

$2.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 41-4440

Blade Adapter Kit (Incl. Ref. #35 & 36)(optional)

$81.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 41-4420

Plate, Blade Fixing

$

$

Not available

39

Lawn-Boy 40-3160

8 Tooth Blade

$

$

Not available

Lawn-Boy 40-3170

80 Tooth Blade
(Superseded to 51-1250)

Note: Not Illustrated

$96.99

$

Usually ships in 3-6 days

0

Lawn-Boy 43-6890

4 Tooth Blade (optional)

Note: Not Illustrated

$

$

Not available

40

Lawn-Boy 41-4490

Woodruff Key

$

$

Not available

41

Lawn-Boy 41-0210

Woodruff Key

$

$

Not available

42

Lawn-Boy 41-4400

Shaft, Power Take Off

$

$

Not available

43

Lawn-Boy 41-0270

Oil Seal

$

$

Not available

44

Lawn-Boy 41-5570

Circlip

$

$

Not available

45

Lawn-Boy 41-5650

Ball Bearing

$

$

Not available

46

Lawn-Boy 41-4520

Housing, Gear

$

$

Not available

Lawn-Boy 41-6580

Gear Housing Assembly (Incl. Ref. #6, 30-31, 34-38 & 40-52)

Note: Not Illustrated

$

$

Currently unavailable

47

Lawn-Boy 41-4580

Gasket

$

$

Not available

48

Lawn-Boy 41-4570

Plug

$

$

Not available

49

Lawn-Boy 41-4450

Spacer

$

$

Not available

50

Lawn-Boy 41-5400

Nut

$

$

Not available

51

Lawn-Boy 41-4560

'O'-Ring

$

$

Not available

52

Lawn-Boy 41-4550

Lid, Gear Housing

$

$

Not available

53

Lawn-Boy 41-5440

Washer

$

$

Not available

54

Lawn-Boy 41-5490

Spring Washer
(Superseded to 71-1150)

$

$

Not available

55

Lawn-Boy 41-4820

Bolt

$

$

Not available

56

Lawn-Boy 41-4470

Washer

$

$

Not available

57

Lawn-Boy 41-4460

Washer

$

$

Not available

58

Lawn-Boy 41-5600

Ball Bearing

$

$

Not available

59

Lawn-Boy 41-5620

Ball Bearing

$

$

Not available

60

Lawn-Boy 41-5550

Circlip

$

$

Not available

61

Lawn-Boy 41-5560

Circlip

$

$

Not available

62

Lawn-Boy 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

63

Lawn-Boy 44-6810

Decal-TC800

$

$

Not available

64

Lawn-Boy 44-3280

Throttle Cabel

$

$

Currently unavailable

65

Lawn-Boy 42-5850

Decal-Warning

$

$

Not available

66

Lawn-Boy 41-3420

Return Spring

$

$

Not available

67

Lawn-Boy 41-3340

Throttle Trigger

$

$

Not available

68

Lawn-Boy 41-4250

Locknut

$

$

Not available

69

Lawn-Boy 41-3310

Bracket, Throttle Trigger

$

$

Not available

Lawn-Boy 41-6550

Throttle Lever Assembly (Incl. Ref. #1, 2, 62 & 66-69)

Note: Not Illustrated

$

$

Not available
