51613 (TC 350) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) CARBURETOR ASSEMBLY NO. 45-2870 Parts Diagram

String Trimmer

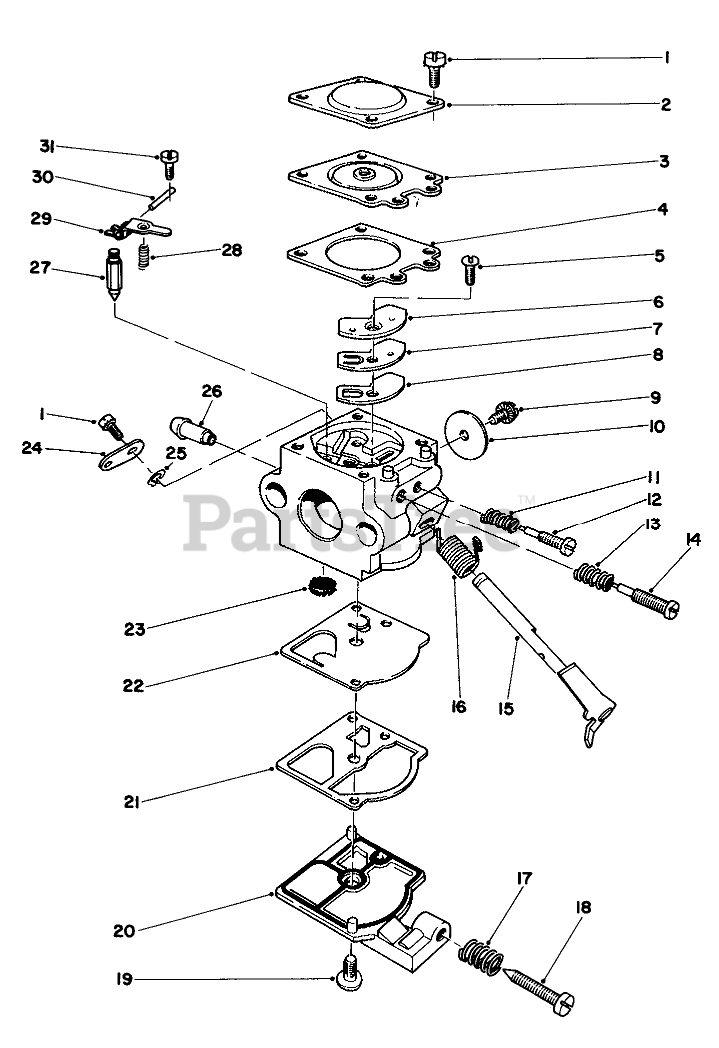

CARBURETOR ASSEMBLY NO. 45-2870 Parts Diagram

  • Title

1

Toro 41-1070

Screw

$

$

Not available

2

Toro 41-1060

Cover, Diaphragm

$

$

Not available

3

Toro 41-1050

METERING DIAPHRAGM

$

$

Not available

4

Toro 41-1040

Gasket, Diaphragm

$

$

Not available

5

Toro 41-1110

Screw-Circuit Plate

$

$

Not available

6

Toro 41-1100

Plate, Circuit

$

$

Not available

7

Toro 41-1090

Diaphragm Circuit Plate

$

$

Not available

8

Toro 41-1080

Gasket-Circuit Plate

$

$

Not available

9

Toro 46-4680

Screw-Throttle Valve
(Superseded to 45-2780)

$

$

Not available

10

Toro 47-5430

Valve-Throttle

$

$

Not available

11

Toro 41-0860

Spring, Needle

$

$

Not available

12

Toro 41-0810

Needle-Idle

$

$

Not available

13

Toro 41-0820

Spring, HS Needle

$

$

Not available

14

Toro 41-0850

Needle, HS

$

$

Not available

15

Toro 46-4660

Shaft Assembly-Throttle

$

$

Not available

16

Toro 41-0720

Spring-Throttle Lever

$

$

Not available

17

Toro 46-4700

Spring-Idle Screw

$

$

Not available

18

Toro 46-4690

Screw-Idle Adjust

$

$

Not available

19

Toro 41-0700

Screw

$

$

Not available

20

Toro 45-3170

Cover-Fuel Pump

$

$

Not available

21

Toro 41-0920

PUMP GASKET

$

$

Not available

22

Toro 41-0710

Diaphragm Fuel Pump
(Superseded to 62-5800)

$

$

Not available

23

Toro 46-4720

Inlet Screen

$

$

Not available

24

Toro 46-4380

Lever-Throttle

$

$

Not available

25

Toro 46-4370

Ring-Throttle Retainer

$

$

Not available

26

Toro 47-5420

Fitting Fuel Inlet

$

$

Not available

27

Toro 41-1010

INLET NEEDLE VALVE

$

$

Not available

28

Toro 34-6790

METERING LEVER SPRING

$

$

Not available

29

Toro 41-0880

Lever Metering

$

$

Not available

30

Toro 41-1020

Metering Lever Pin

$

$

Not available

31

Toro 41-1030

Screw-Metering Pin

$

$

Not available

Toro 46-4740

Kit-OEM Repair (Incl. Ref. #1, 5, 9 & 11-14, 16, 23, 27-31)

Note: Not illustrated

$

$

Not available

Toro 46-4750

Kit-KWIK Repair (Incl. Ref. #1, 34, 7-9, 21-23 & 27-30)

Note: Not illustrated

$

$

Not available

Toro 41-8040

Kit-Gasket/Diaphragm (Incl. Ref. #3, 4, 8, 7, 21 & 22)

Note: Not illustrated

$

$

Not available

Toro 464730

Kit Screen & Clip

Note: Not illustrated

$

$

Currently unavailable

1

Toro 45-1450

MUFFLER SCREW

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

3

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 45-1530

Screw-Heat Shield

$

$

Not available

5

Toro 45-1500

Tab Shield

$

$

Not available

6

Toro 45-1950

EXHAUST GASKET

$5.49

$

Usually ships in 3-6 days

0

7

Muffler Assembly

Note: Note: Order Muffler Kit No.45-2630.

$

$

Not available

8

Toro 45-2390

Arrester-Spark

$

$

Not available

9

Toro 45-1190

MUFFLER OUTLET PLATE

$

$

Not available

10

Toro 45-1360

MUFFLER SHIELD

$

$

Not available

11

Toro 32140-102

Screw-Outlet

$

$

Not available
