51613 (TC 350) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) Carburetor Assembly No. 45-2870 Parts Diagram

String Trimmer

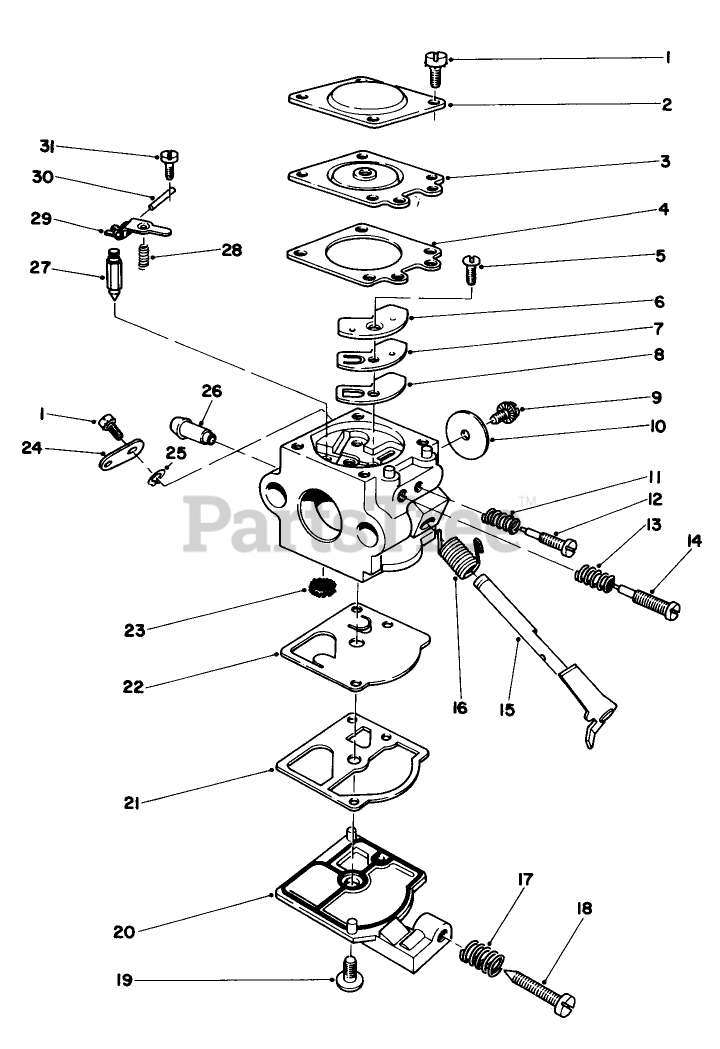

Carburetor Assembly No. 45-2870 Parts Diagram

  • Title

1

Toro 41-1070

DISCONTINUED

$

$

Not available

2

Toro 41-1060

DISCONTINUE

$

$

Not available

3

Toro 41-1050

DISCONTINUED

$

$

Not available

4

Toro 41-1040

DISCONTINUED

$

$

Not available

5

Toro 41-1110

DISCONTINUED

$

$

Not available

6

Toro 41-1100

DISCONTINUED

$

$

Not available

7

Toro 41-1090

DISCONTINUED

$

$

Not available

8

Toro 41-1080

DISCONTINUED

$

$

Not available

9

Toro 46-4680

See Supercession: 45-2780
(Superseded to 45-2780)

$

$

Not available

10

Toro 47-5430

DISCONTINUED

$

$

Not available

11

Toro 41-0860

DISCONTINUED

$

$

Not available

12

Toro 41-0810

DISCONTINUED

$

$

Not available

13

Toro 41-0820

DISCONTINUED

$

$

Not available

14

Toro 41-0850

DISCONTINUED

$

$

Not available

15

Toro 46-4660

DISCONTINUED

$

$

Not available

16

Toro 41-0720

DISCONTINUED

$

$

Not available

17

Toro 46-4700

DISCONTINUED

$

$

Not available

18

Toro 46-4690

DISCONTINUED

$

$

Not available

19

Toro 41-0700

DISCONTINUED

$

$

Not available

20

Toro 45-3170

DISCONTINUED

$

$

Not available

21

Toro 41-0920

DISCONTINUED

$

$

Not available

22

Toro 41-0710

See Supercession: 62-5800
(Superseded to 62-5800)

$

$

Not available

23

Toro 46-4720

DISCONTINUE

$

$

Not available

24

Toro 46-4380

DISCONTINUE

$

$

Not available

25

Toro 46-4370

DISCONTINUED

$

$

Not available

26

Toro 47-5420

DISCONTINUED

$

$

Not available

27

Toro 41-1010

DISCONTINUED

$

$

Not available

28

Toro 34-6790

DISCONTINUED

$

$

Not available

29

Toro 41-0880

DISCONTINUED

$

$

Not available

30

Toro 41-1020

DISCONTINUED

$

$

Not available

31

Toro 41-1030

DISCONTINUED

$

$

Not available

Toro 46-4740

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 46-4750

DISCONTINUE

Note: Not illustrated

$

$

Not available

Toro 41-8040

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 464730

Kit Screen Clip

Note: Not illustrated

$

$

Currently unavailable

1

Toro 45-1450

DISCONTINUED

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 45-1530

DISCONTINUED X-REF

$

$

Not available

5

Toro 45-1500

DISCONTINUED

$

$

Not available

6

Toro 45-1950

EXHAUST GASKET

$

$

Not available

7

Muffler Assembly

Note: Note: Order Muffler Kit No.45-2630.

$

$

Not available

8

Toro 45-2390

DISCONTINUED

$

$

Not available

9

Toro 45-1190

DISCONTINUED

$

$

Not available

10

Toro 45-1360

DISCONTINUED

$

$

Not available

11

Toro 32140-102

DISCONTINUED

$

$

Not available
