51613 (TC 350) - Toro String Trimmer (SN: 004000001 - 004999999) (1984) Engine Housing Assembly Parts Diagram

String Trimmer

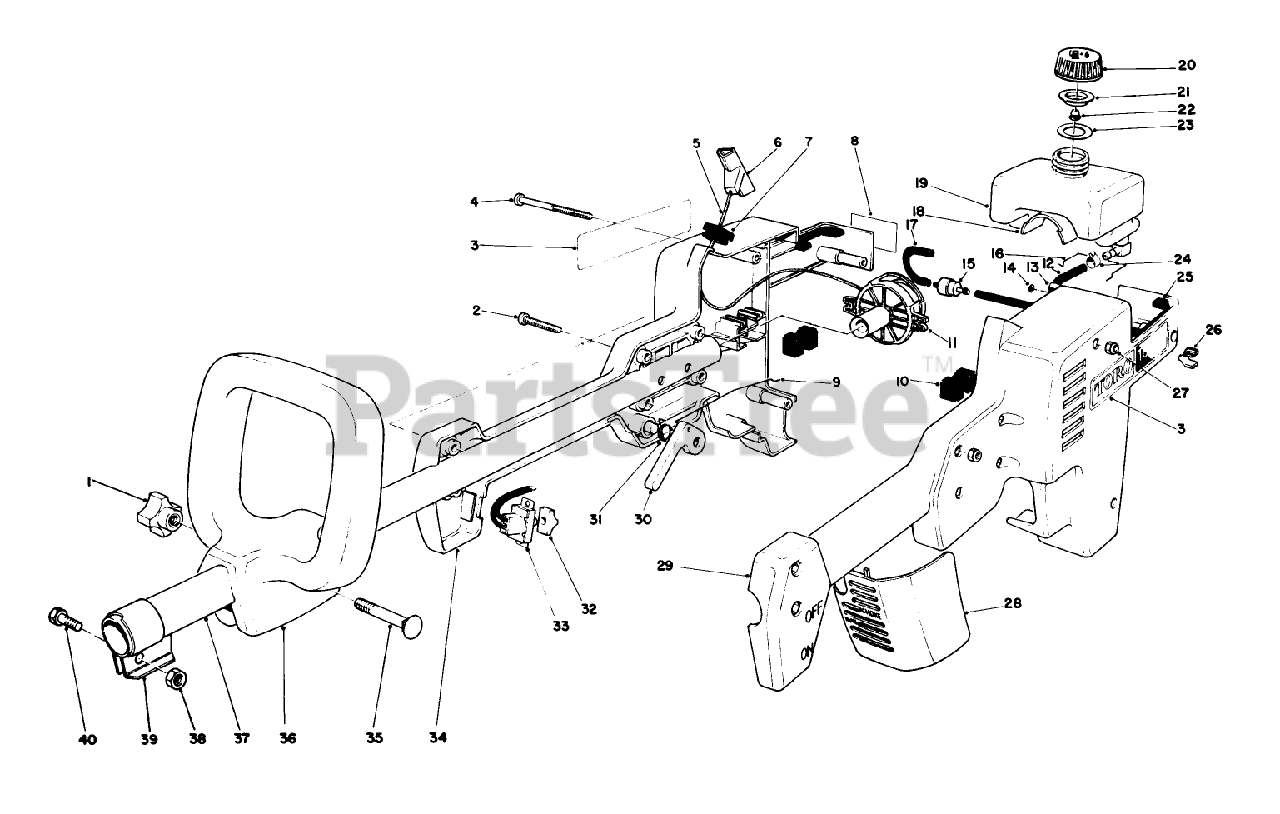

Engine Housing Assembly Parts Diagram

  • Title

1

Toro 42-5890

See Supercession: 98-7134
(Superseded to 98-7134)

$3.49

$

In Stock, Qty 17

0

2

Toro 46-9780

DISCONTINUED

$

$

Not available

3

Toro 46-9970

DISCONTINUED

$

$

Not available

4

Toro 46-9770

DISCONTINUED

$

$

Not available

5

Toro 34-7910

DISCONTINUED
(Superseded to 65-3270)

$

$

Not available

6

Toro 38-6570

DISCONTINUED

$

$

Not available

7

Toro 45-1580

DISCONTINUED

$

$

Not available

8

Toro 42-6250

DISCONTINUED
(Superseded to 53-7190)

$

$

Not available

9

Toro 44-7430

DISCONTINUED

$

$

Not available

10

Toro 42-5660

DISCONTINUED

$

$

Not available

11

Toro 45-1730

DISCONTINUED

$

$

Not available

12

Toro 51-1180

DISCONTINUED

$

$

Not available

13

Toro 2412-88

DISCONTINUED

$

$

Not available

14

Toro 3290-447

Retainer-Push On

$

$

Currently unavailable

15

Toro 51-1190

DISCONTINUED

$

$

Not available

16

Toro 42-6230

DISCONTINUED

$

$

Not available

17

Toro 51-1170

DISCONTINUED

$

$

Not available

18

Toro 42-6240

DISCONTINUED

$

$

Not available

19

Toro 42-5600

DISCONTINUED

$

$

Not available

20

Toro 52-3610

GAS CAP ASM

$32.99

$

Usually ships in 3-6 days

0

21

Insert-Gas Cap

$

$

Not available

22

Valve-Umbrella/Check

$

$

Not available

23

Toro 42-5910

DISCONTINUED
(Superseded to 80-4730)

$

$

Not available

24

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

25

Toro 42-5590

DISCONTINUED

$

$

Not available

26

Toro 42-6040

DISCONTINUED

$

$

Not available

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

28

Toro 44-6720

DISCONTINUED

$

$

Not available

29

Toro 51-1160

DISCONTINUED

$

$

Not available

30

Toro 42-5630

DISCONTINUED

$

$

Not available

31

Toro 42-5640

TORSION SPRING

$36.99

$

Usually ships in 3-6 days

0

32

Toro 218-507

DISCONTINUED

$

$

Not available

33

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

34

Toro 51-1150

DISCONTINUED

$

$

Not available

35

Toro 3-7253

See Supercession: 3230-6
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 7

0

36

Toro 42-5550

DISCONTINUED

$

$

Not available

37

Toro 42-5570

DISCONTINUED

$

$

Not available

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 42-5830

DISCONTINUED

$

$

Not available

40

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
