51616 (TC 650) - Toro String Trimmer (SN: 003000001 - 003999999) (1983) SPARK ARRESTER MUFFLER KIT NO. 45-2630 Parts Diagram

String Trimmer

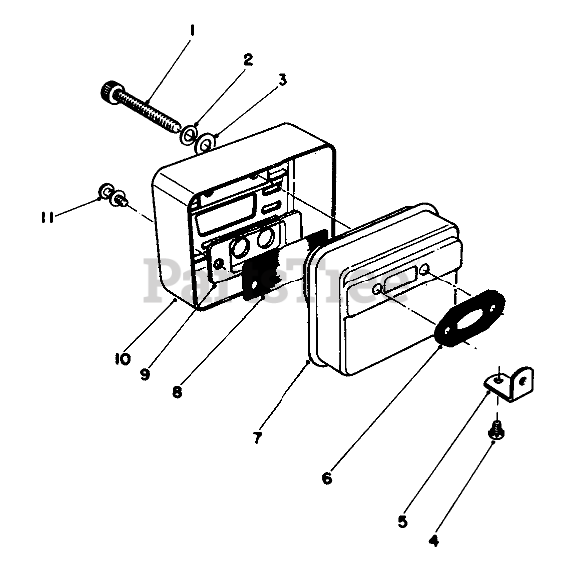

SPARK ARRESTER MUFFLER KIT NO. 45-2630 Parts Diagram

  • Title

1

Toro 45-1450

MUFFLER SCREW

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 45-1530

Screw-Heat Shield

$

$

Not available

5

Toro 45-1500

Tab Shield

$

$

Not available

6

Toro 45-1950

EXHAUST GASKET

$

$

Not available

7

Muffler Assembly

Note: Note: Order Muffler Kit 45-2630.

$

$

Not available

8

Toro 45-2390

Arrester-Spark

$

$

Not available

9

Toro 45-1190

MUFFLER OUTLET PLATE

$

$

Not available

10

Toro 46-1360

Heat Shield

$

$

Currently unavailable

11

Toro 32140-102

Screw-Outlet

$

$

Not available
