51616 (TC 650) - Toro String Trimmer (SN: 004000001 - 004999999) (1984) ENGINE HOUSING ASSEMBLY Parts Diagram

String Trimmer

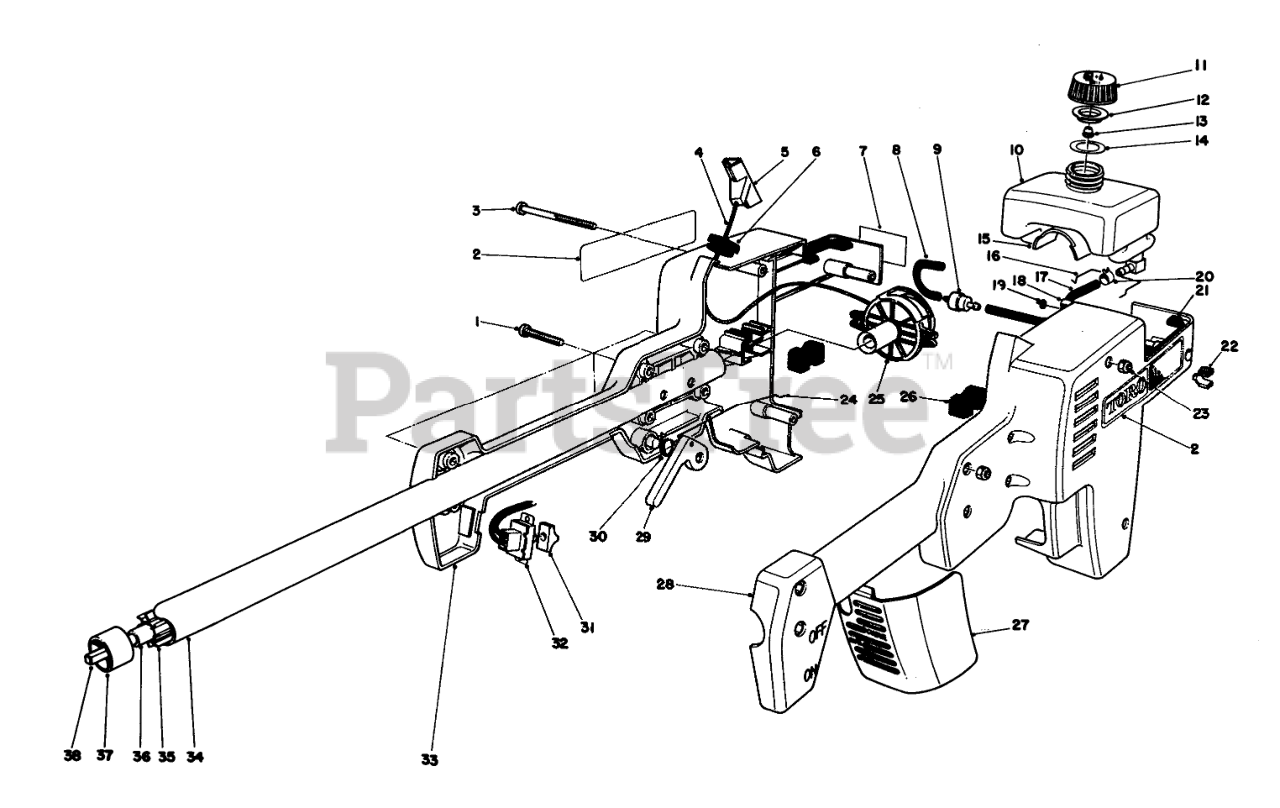

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9780

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

2

Toro 474690

Decal-TC650

$

$

Currently unavailable

3

Toro 46-9770

Screw-Machine Cross Recess Pan Hd.

$

$

Not available

4

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

5

Toro 38-6570

Handle

$

$

Not available

6

Toro 45-1580

Bushing Rope

$

$

Not available

7

Toro 42-6250

Decal-Hot
(Superseded to 53-7190)

$

$

Not available

8

Toro 51-1170

Gas Line

$

$

Not available

9

Toro 51-1190

FUEL FILTER

$

$

Not available

10

Toro 42-5600

GAS TANK

$

$

Not available

11

Toro 52-3610

Gas Cap Assembly (Incl . Ref. #12-14)

$25.99

$

Usually ships in 3-6 days

0

12

Insert-Gas Cap

$

$

Not available

13

Valve-Umbrella/Check

$

$

Not available

14

Toro 42-5910

Gasket
(Superseded to 80-4730)

$

$

Not available

15

Toro 42-6240

Crankcase Pad

$

$

Not available

16

Toro 42-6230

Clip-Crankcase Pad

$

$

Not available

17

Toro 51-1180

Gas Line

$

$

Not available

18

Toro 2412-88

Clamp Cable

$

$

Not available

19

Toro 3290-447

Retainer-Push On

$

$

Currently unavailable

20

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

21

Toro 42-5590

Bumper-Gas Tank

$

$

Not available

22

Toro 42-6040

Grommet

$

$

Not available

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 44-7430

Link-Throttle

$

$

Not available

25

Toro 45-1730

Recoil Assembly (Incl. Ref. #4-6)

$

$

Not available

26

Toro 42-5660

Isolation Mount

$

$

Not available

27

Toro 44-6720

Cover-Air Cleaner

$

$

Not available

28

Toro 51-1160

Housing Engine L.H.

$

$

Not available

29

Toro 42-5630

Lever Throttle

$

$

Not available

30

Toro 42-5640

TORSION SPRING

$32.99

$

Usually ships in 3-6 days

0

31

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

32

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

33

Toro 11-2279

Housing-Engine R.H. (Incl. Ref. #7)

$

$

Not available

34

Toro 46-9540

Tube-Upper

$

$

Not available

35

Toro 47-2820

Spacer-Shaft

$

$

Not available

36

Toro 47-2770

Casing-Shaft

$

$

Not available

37

Toro 524850

Retaining-Casing

$

$

Currently unavailable

38

Toro 47-2720

Flexshaft

$

$

Not available
