51620 - Toro 31cc Curved Shaft Trimmer (SN: 039000001 - 039999999) (1993) Engine Assembly Model No. 51620 Parts Diagram

31cc Curved Shaft Trimmer

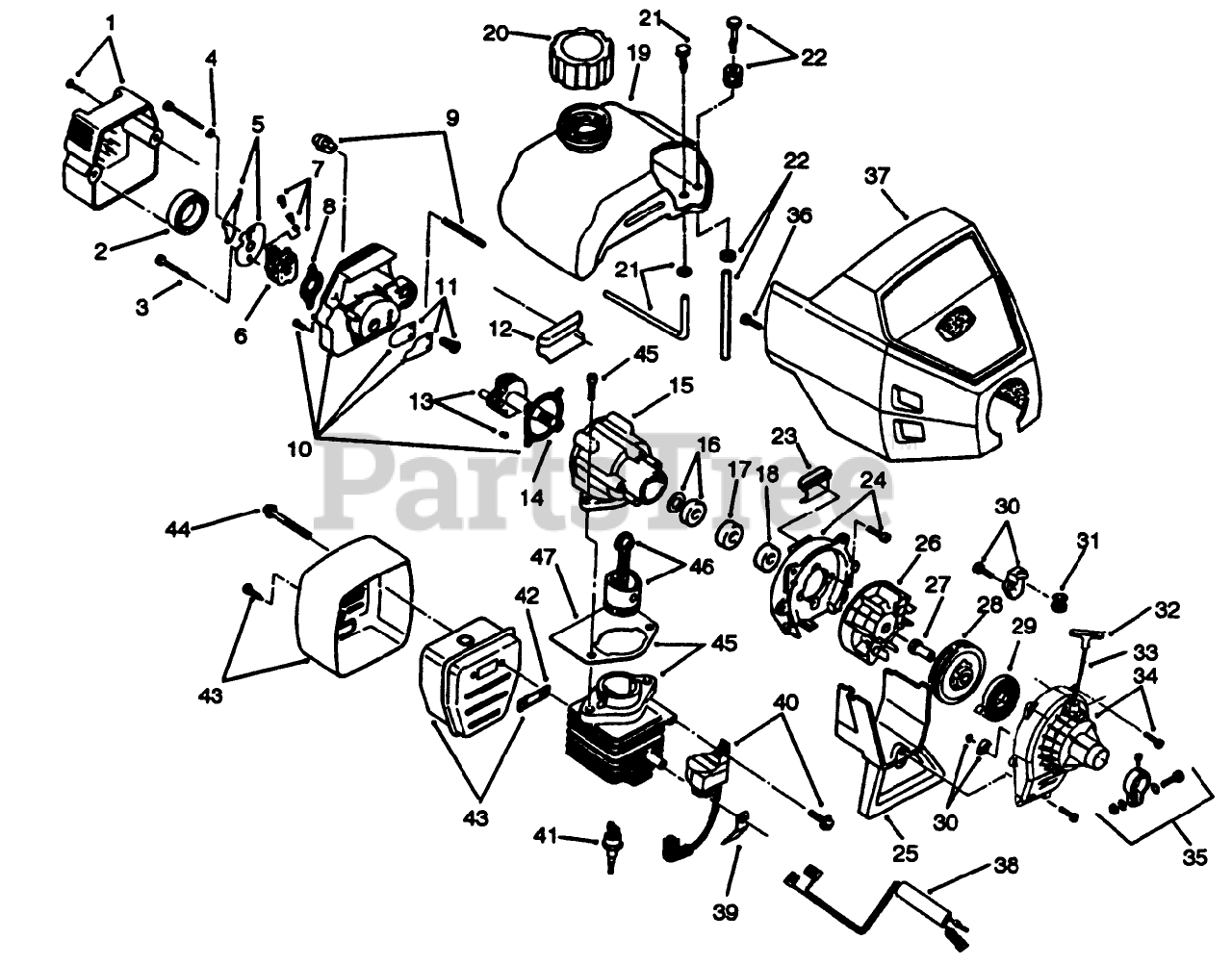

Engine Assembly Model No. 51620 Parts Diagram

  • Title

1

Toro 92-3200

CARB/AIR CLEANER ASM

$54.99

$

Usually ships in 3-6 days

0

2

Toro 92-3201

AIR CLEANER FILTER

$

$

Not available

3

Toro 92-3202

CARB MTG SCREW ASM

$

$

Not available

4

Toro 92-3203

DISCONTINUED

$

$

Not available

5

Toro 92-3204

DISCONTINUED

$

$

Not available

6

Toro 180527

DISCONTINUED
(Superseded to 181621)

$

$

Not available

7

Toro 682048

THROTTLE ADJ ASM

$

$

Not available

8

Toro 610675

CARB.GASKET

$7.49

$

In Stock, only 1 left!

0

9

Toro 683974

DISCONTINUED

$

$

Not available

10

Toro 92-3206

CARB MOUNT ASM

$

$

Not available

11

Toro 684195

DISCONTINUED

$

$

Not available

12

Toro 612134

REAR MOUNTING PAD

$

$

Not available

13

Toro 92-3216

DISCONTINUED

$

$

Not available

14

Toro 612115

DISCONTINUED

$

$

Not available

15

Toro 92-3205

CRANKCASE SERVICE ASM

$

$

Not available

16

Toro 682041

INNER BEARING ASM

$

$

Not available

17

Toro 610309

SEAL

$

$

Not available

18

Toro 610308

OUTER BEARING

$

$

Not available

19

Toro 92-3234

DISCONTINUED

$

$

Not available

20

Toro 92-3215

DISCONTINUED

$

$

Not available

21

Toro 683976

FUEL RETURN LINE ASM

$

$

Not available

22

Toro 682039

FUEL LINE ASM

$

$

Not available

23

Toro 145308

FRONT MOUNTING PAD

$

$

Not available

24

Toro 683065

SHROUD ASM

$86.99

$

Usually ships in 3-6 days

0

25

Toro 683078

See Supercession: 153403
(Superseded to 153403)

$58.99

$

Usually ships in 3-6 days

0

26

Toro 153624

See Supercession: 180929
(Superseded to 180929)

$

$

Not available

27

Toro 610303

SQUARE DRIVE NUT

$

$

Not available

28

Toro 683856

DISCONTINUED

$

$

Not available

29

Toro 613102

RECOIL SPRING

$

$

Not available

30

Toro 682546

See Supercession: 153644
(Superseded to 153644)

$

$

Not available

31

Toro 611061

DISCONTINUED

$

$

Not available

32

Toro 610300

See Supercession: 181079
(Superseded to 181079)

$

$

Not available

33

Toro 613103

DISCONTINUED

$

$

Not available

34

Toro 683064

DISCONTINUED

$

$

Not available

35

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

36

Toro 92-3213

DISCONTINUED

$

$

Not available

37

Toro 92-3238

ENGINE COVER ASM

$

$

Not available

38

Toro 92-3239

DISCONTINUED

$

$

Not available

39

Toro 92-3223

DISCONTINUED

$

$

Not available

40

Toro 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

41

Toro 92-3210

DISCONTINUED

$

$

Not available

42

Toro 610672

See Supercession: 180980
(Superseded to 180980)

$8.49

$

In Stock, only 1 left!

0

43

Toro 92-3209

MUFFLER ASM

$99.99

$

Usually ships in 3-6 days

0

44

Toro 147575

MUFFLER MTG BOLT ASM

$

$

Not available

45

Toro 684448

See Supercession: 181622
(Superseded to 181622)

$

$

Not available

46

Toro 684449

See Supercession: 753-04367
(Superseded to 753-04367)

$

$

Not available

47

Toro 610674

DISCONTINUED

$

$

Not available

Toro 92-3211

ENGINE GASKET KIT

Note: Not illustrated

$

$

Not available

Toro 180529

DISCONTINUED
(Superseded to 181526)

Note: Not illustrated

$

$

Not available

Toro 153309

DISCONTINUED
(Superseded to 181069)

Note: Not illustrated

$

$

Not available

Toro 180530

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 92-3212

SHORT BLOCK ASM

Note: Not illustrated

$

$

Not available

Toro 610676

FLYWHEEL KEY (10-PK)

Note: Not illustrated

$

$

Not available

Toro 92-3289

DISCONTINUED

Note: Not illustrated

$

$

Not available
