51620 - Toro 31cc Curved Shaft Trimmer (SN: 039000001 - 039999999) (1993) Engine Assembly Model No. 51638 51653 Parts Diagram

31cc Curved Shaft Trimmer

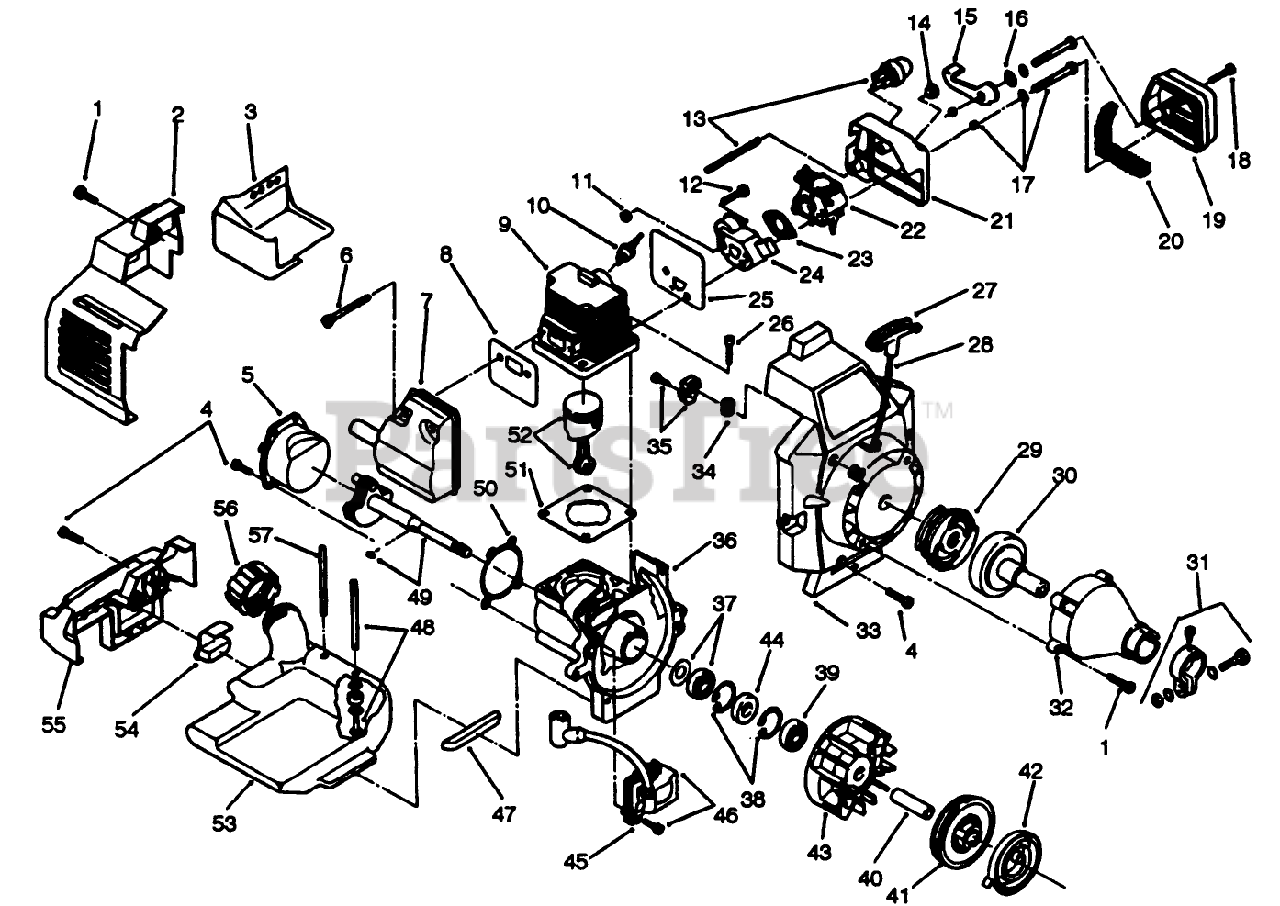

Engine Assembly Model No. 51638 51653 Parts Diagram

  • Title

1

Toro 145888

DISCONTINUED

$

$

Not available

2

Toro 92-3273

DISCONTINUED

$

$

Not available

3

Toro 180211

HEAT SHIELD

$

$

Not available

4

Toro 180212

DISCONTINUED

$

$

Not available

5

Toro 180213

CRANKCASE CAP

$

$

Not available

6

Toro 180214

MUFFLER MOUNTING SCREWS

$

$

Not available

7

Toro 180215

DISCONTINUED

$

$

Not available

8

Toro 180216

DISCONTINUED

$

$

Not available

9

Toro 180235

DISCONTINUED

$

$

Not available

10

Toro 92-3210

DISCONTINUED

$

$

Not available

11

Toro 180217

DISCONTINUED

$

$

Not available

12

Toro 180218

SPACER SCREW SET

$

$

Not available

13

Toro 683974

DISCONTINUED

$

$

Not available

14

Toro 92-3281

SWITCH PLUG

$

$

Not available

15

Toro 180225

CHOKE LEVER

$

$

Not available

16

Toro 180226

WAVEY WASHER

$

$

Not available

17

Toro 180533

CARB MOUNTING ASM

$

$

Not available

18

Toro 180230

See Supercession: 683070
(Superseded to 68-3070)

$

$

Not available

19

Toro 180229

DISCONTINUED

$

$

Not available

20

Toro 180228

DISCONTINUED

$

$

Not available

21

Toro 180223

DISCONTINUE

$

$

Not available

22

Toro 180529

DISCONTINUED
(Superseded to 181526)

$

$

Not available

23

Toro 612113

DISCONTINUED

$

$

Not available

24

Toro 180532

CARBURETOR SPACER ASM

$

$

Not available

25

Toro 180220

CYL/CARB SPACER GASKET

$

$

Not available

26

Toro 180221

SCREW

$

$

Not available

27

Toro 610300

See Supercession: 181079
(Superseded to 181079)

$

$

Not available

28

Toro 613103

DISCONTINUED

$

$

Not available

29

Toro 153591

See Supercession: 181598
(Superseded to 181598)

$

$

Not available

30

Toro 180232

CLUTCH DRUM ASM

$

$

Not available

31

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

32

Toro 180231

DISCONTINUED

$

$

Not available

33

Toro 92-3274

DISCONTINUED

$

$

Not available

34

Toro 611061

DISCONTINUED

$

$

Not available

35

Toro 153644

PULLEY RETAINER ASM

$

$

Not available

36

Toro 180249

DISCONTINUED

$

$

Not available

37

Toro 682041

INNER BEARING ASM

$

$

Not available

38

Toro 682040

DISCONTINUED

$

$

Not available

39

Toro 610308

OUTER BEARING

$

$

Not available

40

Toro 145918

DISCONTINUED

$

$

Not available

41

Toro 180535

DISCONTINUED

$

$

Not available

42

Toro 613102

RECOIL SPRING

$

$

Not available

43

Toro 153624

See Supercession: 180929
(Superseded to 180929)

$

$

Not available

44

Toro 610309

SEAL

$

$

Not available

45

Toro 92-3223

DISCONTINUED

$

$

Not available

46

Toro 180238

MODULE ASM

$

$

Not available

47

Toro 180239

DISCONTINUED

$

$

Not available

48

Toro 180244

DISCONTINUED

$

$

Not available

49

Toro 180245

POWER SHAFT ASM

$

$

Not available

50

Toro 180246

CRANKCASE CAP GASKET

$

$

Not available

51

Toro 180236

CYLINDER GASKET

$

$

Not available

52

Toro 180534

PISTON & ROD ASM

$

$

Not available

53

Toro 180240

DISCONTINUED

$

$

Not available

54

Toro 180241

REAR FUEL TANK PAD

$

$

Not available

55

Toro 180536

DISCONTINUED

$

$

Not available

56

Toro 180000

DISCONTINUED

$

$

Not available

57

Toro 180243

DISCONTINUED

$

$

Not available

Toro 180247

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 153308

See Supercession: 180602
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 153309

DISCONTINUED
(Superseded to 181069)

Note: Not illustrated

$

$

Not available

Toro 180537

PISTON RING SET

Note: Not illustrated

$

$

Not available

Toro 180248

SHORT BLOCK ASM

Note: Not illustrated

$

$

Not available

Toro 610676

FLYWHEEL KEY (10-PK)

Note: Not illustrated

$

$

Not available
