51620 - Toro 31cc Curved Shaft Trimmer (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY MODEL NO. 51620 Parts Diagram

31cc Curved Shaft Trimmer

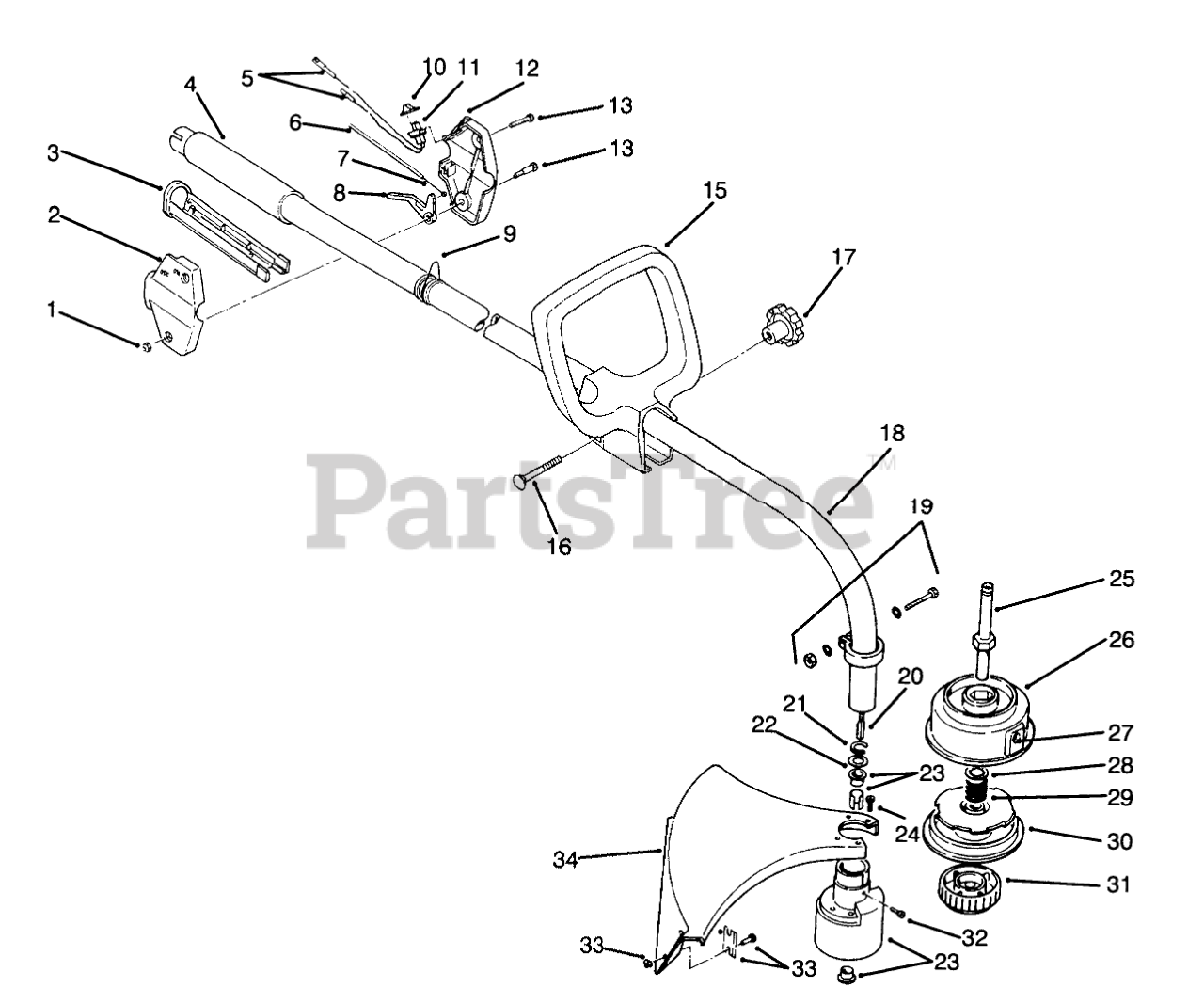

HANDLE ASSEMBLY MODEL NO. 51620 Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

2

Toro 92-6516

HOUSING RH

$

$

Not available

3

Toro 53-7290

TROUGH 1"

$

$

Not available

4

Toro 53-7120

GRIP - RUBBER

$

$

Not available

5

Toro 92-3239

LEAD WIRE ASM

$

$

Not available

6

Toro 614144

Assy.-Throttle Cable
(Superseded to 181582)

$

$

Not available

7

Toro 92-3272

THROTTLE CABLE

$

$

Not available

8

Toro 53-7270

THROTTLE LEVER

$

$

Not available

9

Tecumseh 610327

Clip-Shoulder Strap

$

$

Currently unavailable

10

Toro 218-557

SWITCH COVER

$

$

Not available

11

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

12

Toro 92-6515

HOUSING LH

$

$

Not available

13

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

15

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

16

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 9

0

17

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

18

Toro 92-3271

DRIVE SHAFT HSG ASM

$

$

Not available

19

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

20

Toro 682064

Drive Shaft
(Superseded to 92-3236)

$

$

Not available

21

Toro 145570

RETAINING RING

$

$

Not available

22

Toro 145567

WASHER

$

$

Not available

23

Toro 153312

BUSHING HSG ASM

$

$

Not available

24

Toro 180531

GUARD MTG SCREW ASM

$3.49

$

Usually ships in 3-6 days

0

25

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

26

Toro 153619

OUTER SPOOL EYELET ASM

$54.99

$

Usually ships in 3-6 days

0

27

Toro 145566

EYELET

$

$

Not available

28

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

29

Tecumseh 610317

SPRING

$

$

Currently unavailable

30

Tecumseh 610318

REEL - INNER

$

$

Currently unavailable

31

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

32

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

33

Toro 682061

Assembly-Blade (Incl. 2 Screws/2 Nuts)

$24.99

$

In Stock, only 1 left!

0

34

Toro 683274

Assembly-Guard & Blade (Incl. Ref. #33)

$

$

Not available

Tecumseh 610375

LOOP LINE

Note: Not illustrated

$

$

Currently unavailable

Toro 153577

Assy-Spool & Line 30ft.
(Superseded to 88192)

Note: Not illustrated

$27.99

$

In Stock, only 3 left!

0

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not illustrated

$

$

Not available

Toro 683223

Assembly-Cutting Head (Incl. Ref. No. 19, 21-34)
(Superseded to 683059)

Note: Not illustrated

$

$

Not available
