51628 (TC 1800) - Lawn-Boy String Trimmer (SN: 000000001 - 000999999) (1990) CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

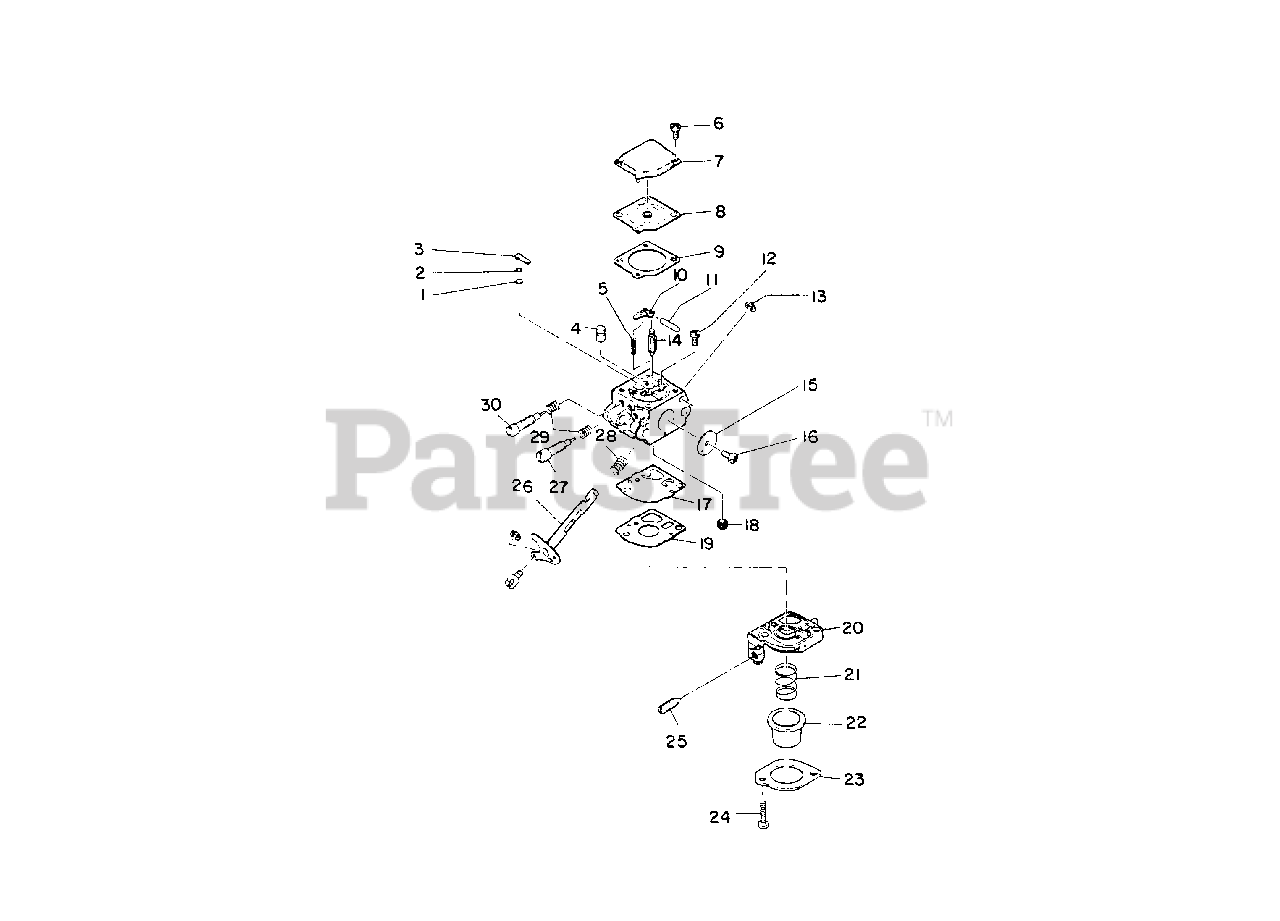

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 72-1480

Valve Check

$

$

Not available

2

Lawn-Boy 72-1470

Retainer-Check Valve

$

$

Not available

3

Lawn-Boy 72-1460

Plug-Welch

$

$

Not available

4

Lawn-Boy 72-1490

Nozzle Ass'y-Check Valve

$

$

Not available

5

Lawn-Boy 72-1500

Spring

$

$

Not available

6

Lawn-Boy 72-1420

Screw

$

$

Not available

7

Lawn-Boy 72-1430

Cover

$

$

Not available

8

Lawn-Boy 72-1440

Diaphram-Metering

$

$

Not available

9

Lawn-Boy 72-1450

Gasket

$

$

Not available

10

Lawn-Boy 72-1510

Lever-Metering

$

$

Not available

11

Lawn-Boy 72-1520

Pin-Metering

$

$

Not available

12

Lawn-Boy 72-1540

Screw

$

$

Not available

13

Lawn-Boy 72-1550

Ring-E

$

$

Not available

14

Lawn-Boy 72-1530

Valve-Inlet Needle

$

$

Not available

15

Lawn-Boy 72-1560

Valve-Throttle

$

$

Not available

16

Lawn-Boy 72-1570

Screw

$

$

Not available

17

Lawn-Boy 72-1590

Diaphram-Pump

$

$

Not available

18

Lawn-Boy 72-1580

Strainer

$

$

Not available

19

Lawn-Boy 72-1600

Gasket

$

$

Not available

20

Lawn-Boy 72-1610

Base Assembly-Primer (Incl. Ref. #25)

$

$

Not available

21

Lawn-Boy 72-1630

Spring

$

$

Not available

22

Lawn-Boy 72-1640

Primer

$

$

Not available

23

Lawn-Boy 72-1650

Retainer-Primer

$

$

Not available

24

Lawn-Boy 72-1620

Screw

$

$

Not available

25

Screw-Idle Adjustment

$

$

Not available

26

Lawn-Boy 72-1670

Shaft Throttle Assembly

$

$

Not available

27

Lawn-Boy 72-1690

Screw-Low Speed Adj.

$

$

Not available

28

Lawn-Boy 72-1680

Spring-Throttle

$

$

Not available

29

Lawn-Boy 72-1700

Spring

$

$

Not available

30

Lawn-Boy 72-1710

Screw-High Speed Adj.

$

$

Not available

Lawn-Boy 72-1720

Carburetor Repair Kit (Incl. Ref. #1-5, 9-14, 17, 19, 20, 29, 30)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 72-1380

Carburetor Assembly (Incl. Ref. #1-30)

Note: Not Illustrated

$

$

Not available
