51628 (TC 1800) - Toro String Trimmer (SN: 009000001 - 009999999) (1989)

String Trimmer

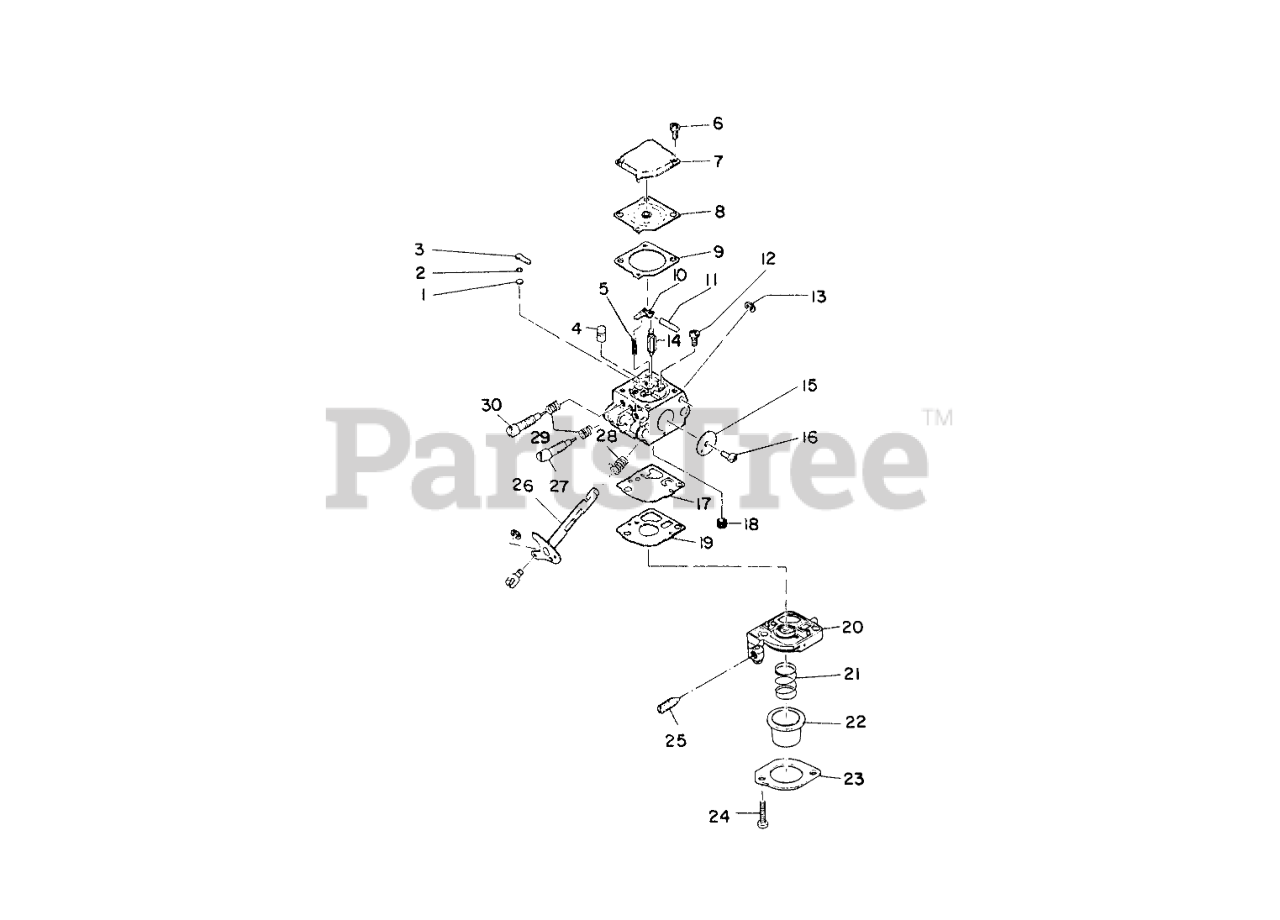

51628 (TC 1800) - Toro String Trimmer (SN: 009000001 - 009999999) (1989) > Parts Diagrams (7) > CARBURETOR ASSEMBLY

  • Title
72-1480

1

Valve Check

Part# 72-1480

OEM Warranty Repair Part for Toro

Not available

72-1470

2

Retainer-Check Valve

Part# 72-1470

OEM Warranty Repair Part for Toro

Not available

72-1460

3

Plug-Welch

Part# 72-1460

OEM Warranty Repair Part for Toro

Not available

72-1490

4

Nozzle Ass-y-Check Valve

Part# 72-1490

OEM Warranty Repair Part for Toro

Not available

72-1500

5

Spring

Part# 72-1500

OEM Warranty Repair Part for Toro

Not available

72-1420

6

Screw

Part# 72-1420

OEM Warranty Repair Part for Toro

Not available

72-1430

7

Cover

Part# 72-1430

OEM Warranty Repair Part for Toro

Not available

72-1440

8

Diaphram-Metering

Part# 72-1440

OEM Warranty Repair Part for Toro

Not available

72-1450

9

Gasket

Part# 72-1450

OEM Warranty Repair Part for Toro

Not available

72-1510

10

Lever-Metering

Part# 72-1510

OEM Warranty Repair Part for Toro

Not available

72-1520

11

Pin-Metering

Part# 72-1520

OEM Warranty Repair Part for Toro

Not available

72-1540

12

Screw

Part# 72-1540

OEM Warranty Repair Part for Toro

Not available

72-1550

13

Ring-E

Part# 72-1550

OEM Warranty Repair Part for Toro

Not available

72-1530

14

Valve-Inlet Needle

Part# 72-1530

OEM Warranty Repair Part for Toro

Not available

72-1560

15

Valve-Throttle

Part# 72-1560

OEM Warranty Repair Part for Toro

Not available

72-1570

16

Screw

Part# 72-1570

OEM Warranty Repair Part for Toro

Not available

72-1590

17

Diaphram-Pump

Part# 72-1590

OEM Warranty Repair Part for Toro

Not available

72-1580

18

Strainer

Part# 72-1580

OEM Warranty Repair Part for Toro

Not available

72-1600

19

Gasket

Part# 72-1600

OEM Warranty Repair Part for Toro

Not available

72-1610

20

Base Assembly-Primer (Incl. Ref. #25)

Part# 72-1610

OEM Warranty Repair Part for Toro

Not available

72-1630

21

Spring

Part# 72-1630

OEM Warranty Repair Part for Toro

Not available

72-1640

22

PRIMER

Part# 72-1640

OEM Warranty Repair Part for Toro

Not available

72-1650

23

Retainer-Primer

Part# 72-1650

OEM Warranty Repair Part for Toro

Not available

72-1620

24

Screw

Part# 72-1620

OEM Warranty Repair Part for Toro

Not available

25

Screw-Idle Adjustment

Part#

Not available

72-1670

26

Shaft Throttle Assembly

Part# 72-1670

OEM Warranty Repair Part for Toro

Not available

72-1690

27

Screw-Low Speed Adj.

Part# 72-1690

OEM Warranty Repair Part for Toro

Not available

72-1680

28

Spring-Throttle

Part# 72-1680

OEM Warranty Repair Part for Toro

Not available

72-1700

29

Spring

Part# 72-1700

OEM Warranty Repair Part for Toro

Not available

72-1710

30

Screw-High Speed Adj.

Part# 72-1710

OEM Warranty Repair Part for Toro

Not available

72-1720

Not available

72-1380

Carburetor Assembly (Incl. Ref. #1-30)

Part# 72-1380

OEM Warranty Repair Part for Toro

Not available
