51630 (1500) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

String Trimmer

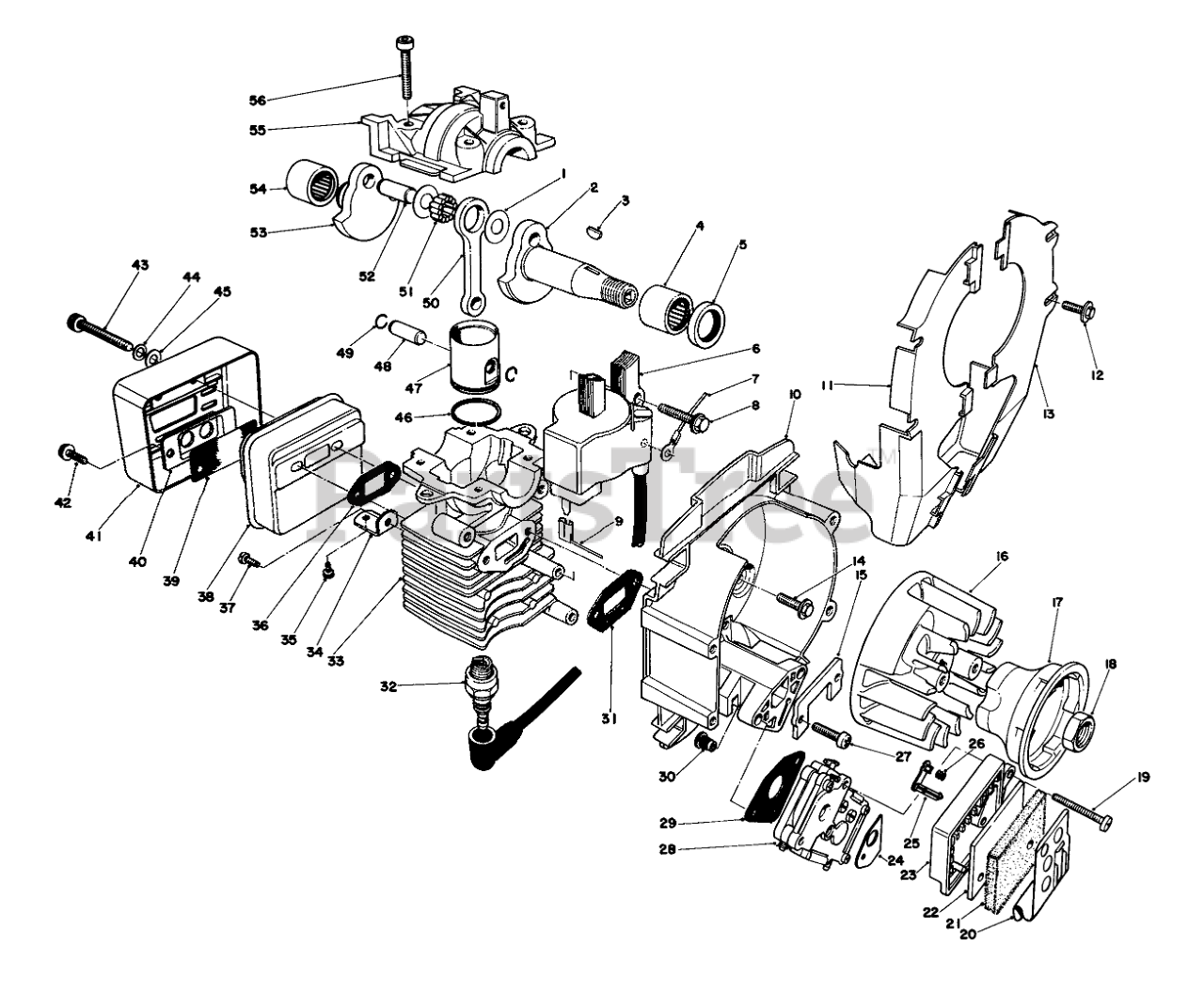

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro 11-0219

Crankshaft & Connecting Rod Assembly (Incl. Ref. #1-2 & 50-53)

$

$

Currently unavailable

3

Toro 45-0470

FLYWHEEL KEY

$

$

Not available

4

Toro 45-0490

Main Bearing-Open End

$

$

Currently unavailable

5

Toro 45-0440

Seal-Main Bearing

$

$

Currently unavailable

6

Toro 45-0230

CDI Module

$

$

Not available

7

Toro 45-0610

Wire-Ground/Switch

$

$

Not available

8

Toro 45-0640

Screw CDI

$

$

Not available

9

Toro 45-0620

Wire-Coil/Switch

$

$

Not available

10

Toro 45-0220

Backing Plate

$

$

Not available

11

Toro 45-0560

Cooling Shroud-Left Hand

$

$

Not available

12

Toro 45-0630

Screw-Shroud

$

$

Not available

13

Toro 45-0550

Cooling Shroud-Right Hand

$

$

Not available

14

Toro 45-0710

Screw
(Superseded to 32144-1)

$3.49

$

In Stock, Qty 20+

0

15

Toro 45-0540

Plate-Stress

$

$

Not available

16

Toro 45-0240

FIywheel

$

$

Not available

17

Toro 45-0130

Cup-Starter

$

$

Not available

18

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 9

0

19

Toro 45-0980

Screw-Carburetor

$

$

Not available

20

Toro 45-1520

Cover Air Cleaner

$

$

Not available

21

Toro 45-1030

Foam Air Cleaner

$

$

Not available

22

Toro 45-1610

Felt Air Cleaner

$

$

Not available

23

Toro 45-1290

Spit Back & Choke Assembly (Incl. Ref. #24-26)

$

$

Not available

24

Toro 45-0940

Choke Base Plate

$

$

Currently unavailable

25

Toro 45-1020

Choke Lever

$

$

Currently unavailable

26

Toro 45-0460

Spring

$

$

Currently unavailable

27

Toro 45-0700

Screw, Intake

$

$

Not available

28

Toro 45-1600

Carburetor Replacement Kit (Incl. Ref. #30)

$

$

Currently unavailable

29

Toro 45-0480

Gasket-Carburetor

$

$

Not available

30

Toro 45-1630

Insert Threaded

$

$

Not available

31

Toro 45-0260

Gasket-Intake

$

$

Not available

32

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 45-1540

Cylinder Assembly Kit (Incl. Ref. #31, 36 & 55-56)

$

$

Not available

34

Toro 45-1500

Tab Shield

$

$

Not available

35

Toro 45-1530

Screw-Heat Shield

$

$

Not available

36

Toro 45-0590

Gasket-Exhaust
(Superseded to 45-1950)

$5.49

$

Usually ships in 3-6 days

0

37

Toro 45-1280

Screw Shield Tab

$

$

Not available

38

Toro 45-1270

Muffler Kit (Incl. Ref. #3940 & 42)

$

$

Not available

39

Toro 45-1210

Spark Arrestor
(Superseded to 45-2390)

$

$

Not available

40

Toro 45-1190

MUFFLER OUTLET PLATE

$

$

Not available

41

Toro 45-1360

MUFFLER SHIELD

$

$

Not available

42

Toro 45-1460

Screw
(Superseded to 32140-102)

$

$

Not available

43

Toro 45-1450

MUFFLER SCREW

$

$

Not available

44

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

45

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 45-0340

Piston Ring

$

$

Currently unavailable

47

Toro 45-0650

Piston Assembly (Incl. Ref. #48)

$

$

Currently unavailable

48

Piston Pin

$

$

Not available

49

Toro 45-0850

Clip

$

$

Currently unavailable

50

Connecting Rod

$

$

Not available

51

Rollers-Crank Pin

$

$

Not available

52

Crankpin

$

$

Not available

53

Crankside-Stud

$

$

Not available

54

Toro 45-0040

Main Bearing-Closed End

$

$

Currently unavailable

55

Crank Case

$

$

Not available

56

Toro 45-0690

Screw-Cylinder & Crankcase

$

$

Currently unavailable

Toro 45-1390

Wrench-Starter Cup

Note: Not illustrated

$

$

Not available

Toro 45-1570

Helicoil Kit w/Drill & Tap

Note: Optional

$

$

Currently unavailable

Toro 45-1570

Helicoil Kit w/Drill & Tap

Note: Not illustrated

$

$

Currently unavailable

Toro 11-0209

Short Block Assembly (Incl. Ref. #1-5, 33 & 46-56)

Note: Not illustrated

$

$

Not available

Toro 45-1620

Carburetor Gasket & Diaphragm Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 221-696

Complete Engine Assembly

Note: Not illustrated

$

$

Currently unavailable
