51637 (TC 2010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) Cutter Head Assembly Parts Diagram

String Trimmer

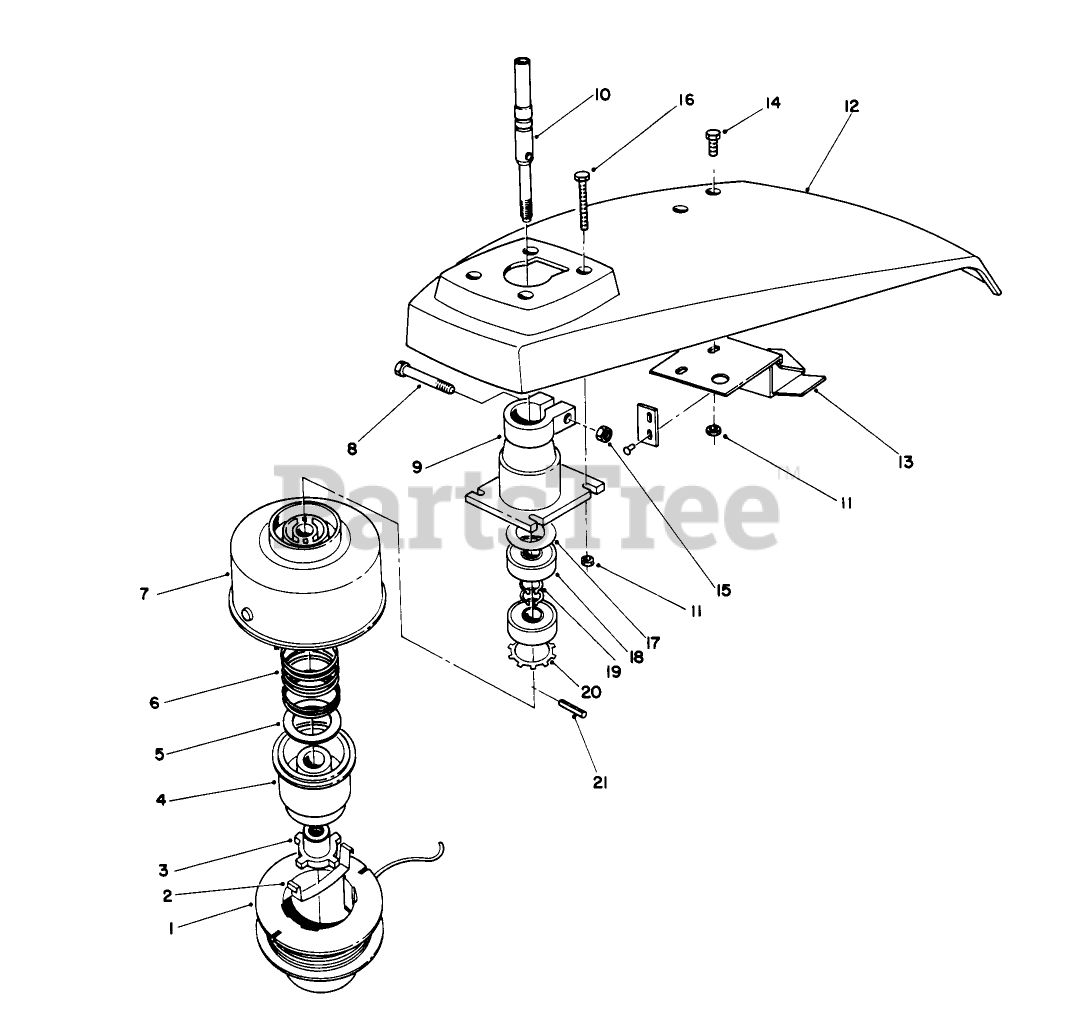

Cutter Head Assembly Parts Diagram

  • Title

1

Toro 83-4640

DISCONTINUED

$

$

Not available

2

Toro 33-8940

DISCONTINUED

$

$

Not available

3

Toro 42-6050

DRIVER

$

$

Not available

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 3256-42

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 29-7130

SPRING COMPRESSION

$

$

Not available

7

Toro 42-5950

DRUM/EYELET

$

$

Not available

8

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 17

0

9

Toro 42-5931

DISCONTINUE

$

$

Not available

10

Shaft-Power

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

12

Toro 52-5730

DISCONTINUED

$

$

Not available

13

Toro 42-5920

DISCONTINUED

$

$

Not available

14

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3290-501

See Supercession: 3290-360
(Superseded to 3290-360)

$5.99

$

Usually ships in 3-6 days

0

17

Toro 42-6030

FLAT WASHER

$

$

Not available

18

Toro 49-2410

BEARING-BALL

$55.99

$

Usually ships in 3-6 days

0

19

Toro 32151-65

RING-RETAINING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 42-5770

DISCONTINUED

$

$

Not available

21

Toro 32121-95

See Supercession: 32121-108
(Superseded to 32121-108)

$7.49

$

In Stock, only 1 left!

0

22

Line-Cutting .08 Dia. 38-

$

$

Not available

Toro 43-5000

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 83-4620

DISCONTINUED

Note: Not illustrated

$

$

Not available
