51637 (TC 2010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

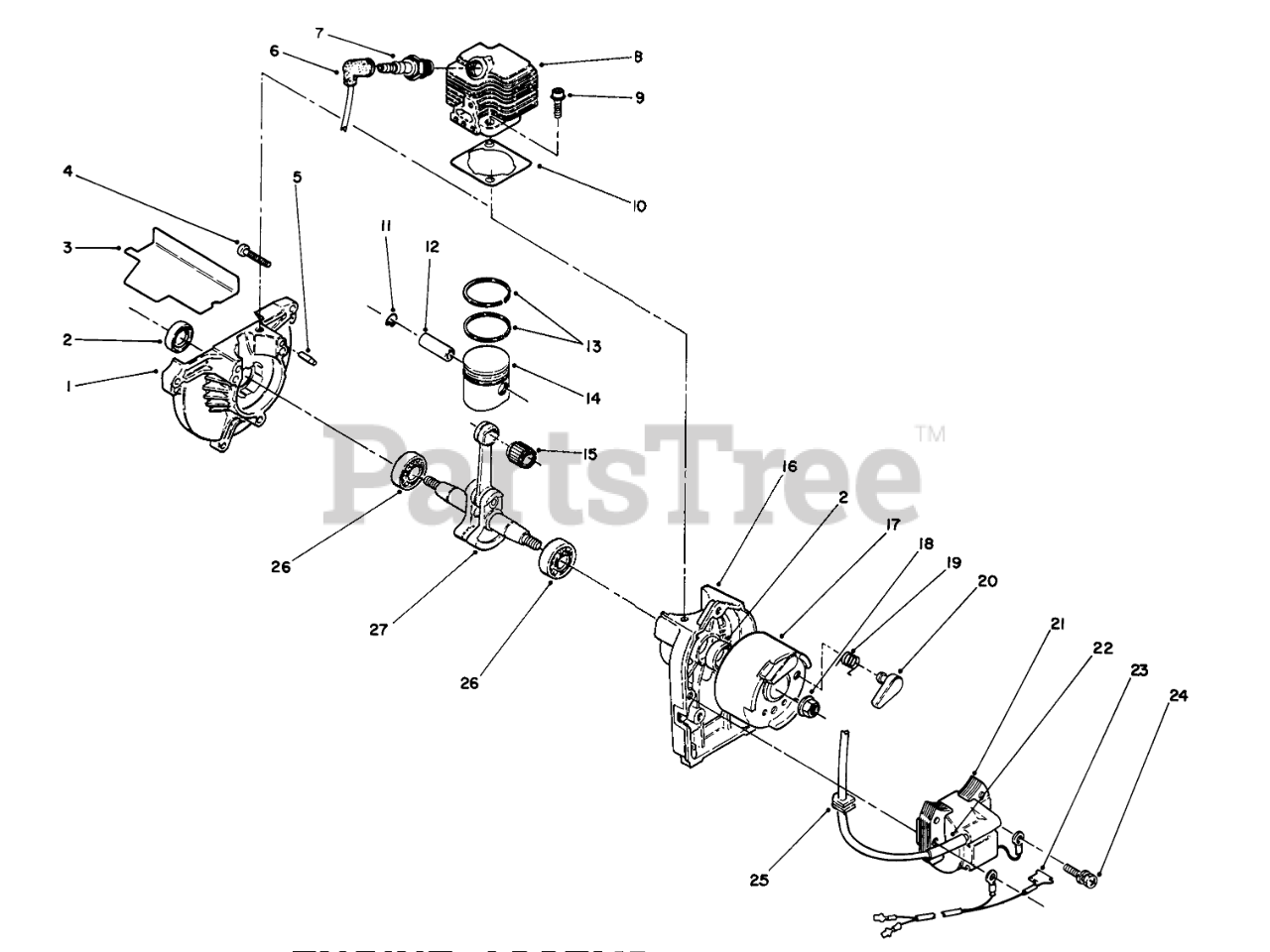

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-1160

DRIVE CASE

$

$

Not available

2

Toro 54-4380

OIL SEAL

$21.99

$

Usually ships in 3-6 days

0

3

Toro 82-6070

BAFFLE GASKET

$

$

Not available

4

Toro 54-4330

Screw

$

$

Not available

5

Toro 60-7590

PIN

$

$

Not available

6

Toro 77-1340

PLUG BOOT

$

$

Not available

7

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

8

Toro 77-1220

CYLINDER

$

$

Not available

9

Toro 60-7720

FLANGE BOLT

$

$

Not available

10

Toro 60-7730

CYL GASKET

$7.49

$

In Stock, Qty 7

0

11

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

12

Toro 60-7760

Pin-Piston

$

$

Not available

13

Toro 60-7740

TOP RING

$15.08

$

In Stock, only 1 left!

0

14

Toro 77-1280

Piston Assembly (Incl. Ref. #11 & 12)

$195.99

$

Usually ships in 3-6 days

0

15

Toro 54-5930

NEEDLE BEARING

$

$

Not available

16

Toro 60-7600

STARTER CASE

$

$

Not available

17

Toro 77-1360

Flywheel Assembly (Incl. Ref. #19 & 20)

$

$

Not available

18

Toro 54-4670

NUT

$

$

Not available

19

Toro 77-1370

RETURN SPRING

$

$

Not available

20

Toro 77-1380

RATCHET

$

$

Not available

21

Toro 77-1400

IGNITION COIL

$

$

Not available

22

Toro 77-2180

TUBE

$

$

Not available

23

Toro 84-8620

Wire Assembly

$

$

Not available

24

Toro 54-4790

BOLT AND WASHER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 60-7840

GROMMET

$

$

Not available

26

Toro 54-4360

BEARING

$

$

Not available

27

Toro 77-1330

CRANKSHAFT ASSEMBLY

$

$

Not available
