51637 (TC 2010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) FLEX BLADE & HARNESS ACCESSORIES(OPTIONAL) Parts Diagram

String Trimmer

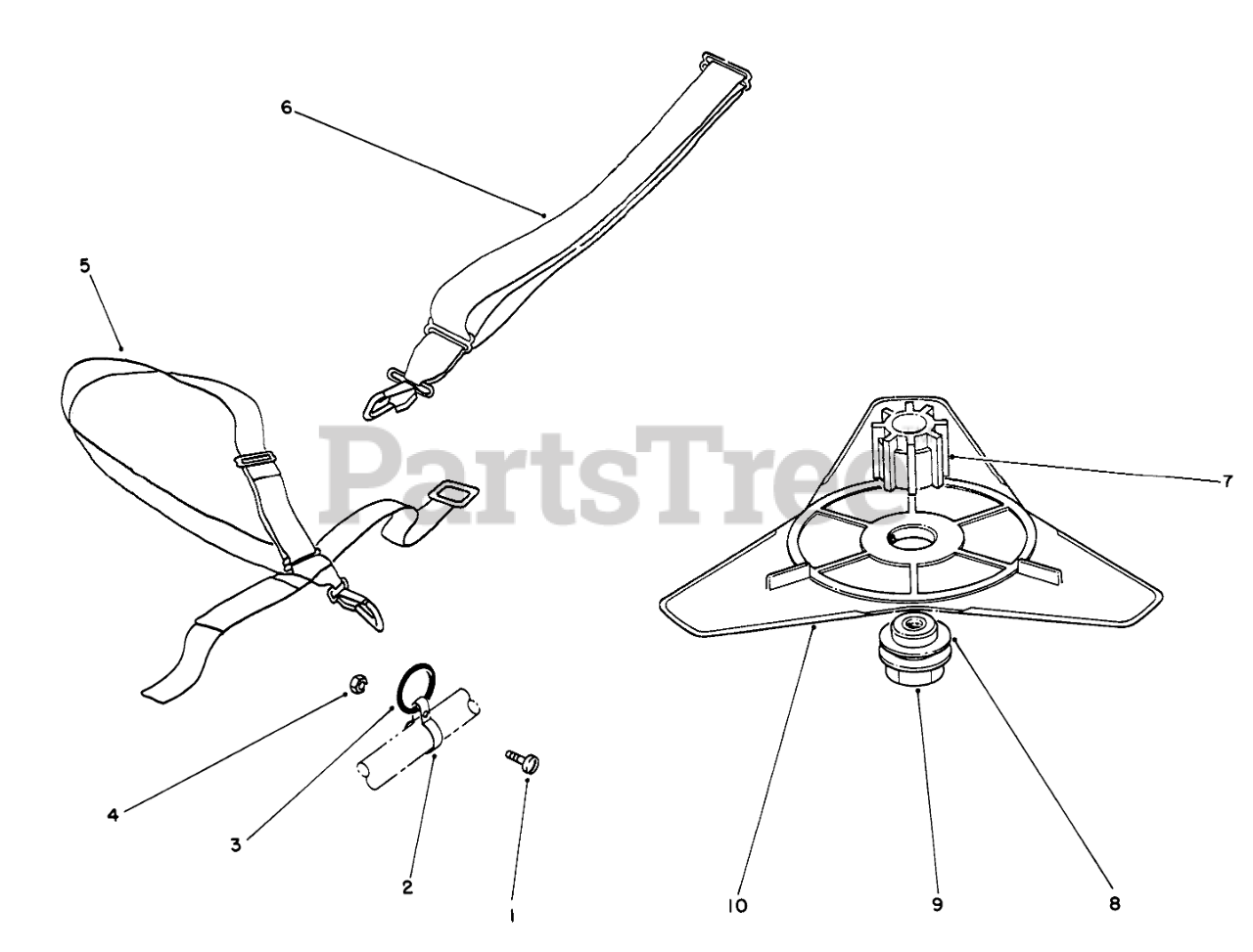

FLEX BLADE & HARNESS ACCESSORIES(OPTIONAL) Parts Diagram

  • Title

1

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

2

Toro 44-2430

HARNESS CLAMP

$16.99

$

Usually ships in 3-6 days

0

3

Toro 44-7540

RING-HARNESS

$

$

Not available

4

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

5

Toro 46-2961

Deluxe Harness
(Superseded to 682075)

$

$

Not available

6

Toro 46-2951

Harness

$

$

Not available

7

Toro 44-2410

BLADE ADAPTER

$29.99

$

Usually ships in 3-6 days

0

8

Toro 51-1340

FLAT WASHER

$

$

Not available

9

Toro 44-2420

ADAPTER NUT

$

$

Not available

10

Toro 46-2790

FLEX BLADE PKG

$94.99

$

Usually ships in 3-6 days

0

Toro 46-2691

Kit-Harness, Clamp & Ring (Incl. Ref. #1-4)

Note: Not illustrated

$

$

Not available

Toro 83-4390

KIt-Flex Blade / Harness (Incl. Ref. #1-4 & 6-9)

Note: Not illustrated

$

$

Not available
