51641 (TC 1000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

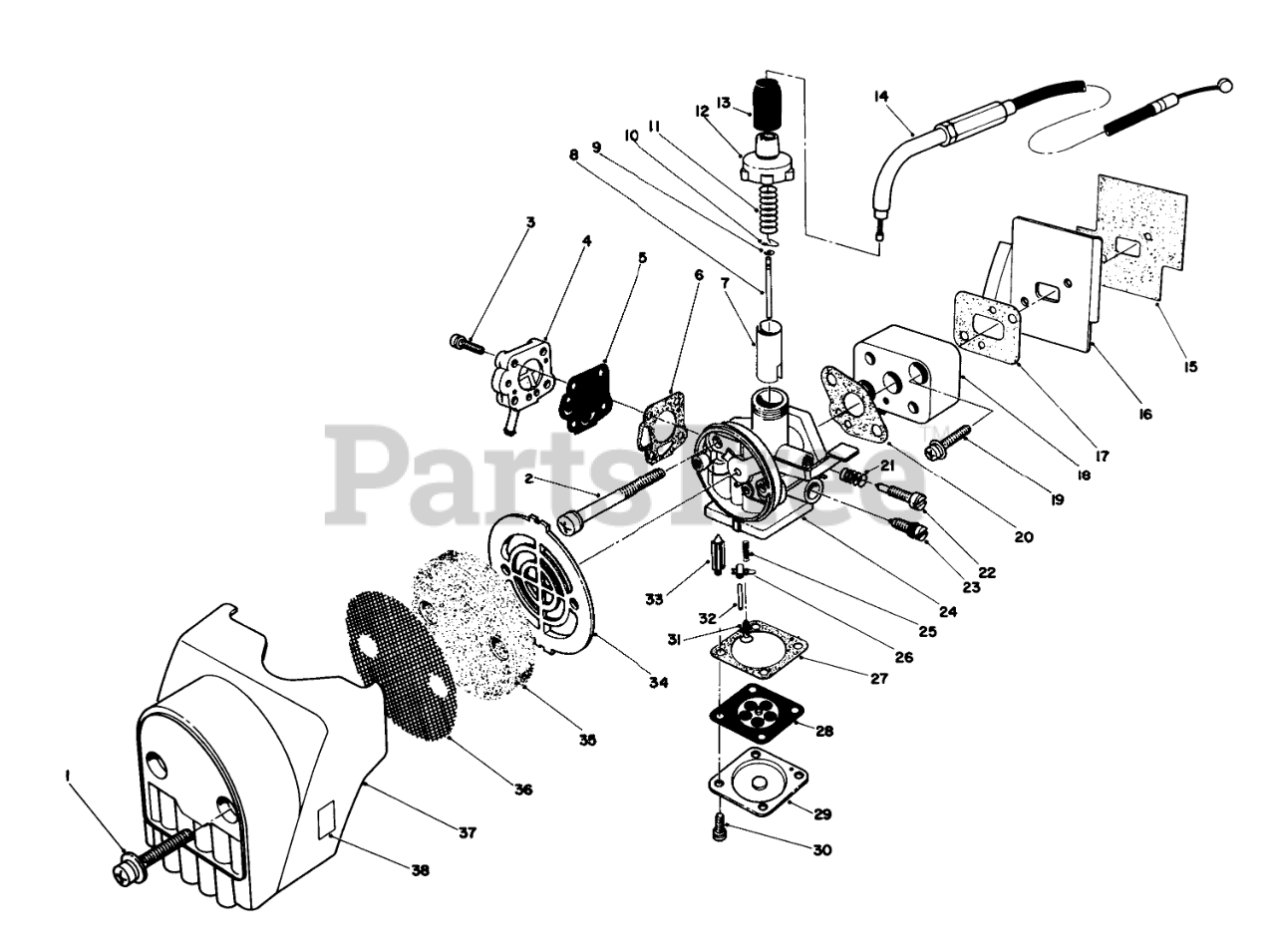

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5150

Screw
(Superseded to 60-8020)

$

$

Not available

2

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

3

Toro 54-5040

SCREW W/ WASHER

$

$

Not available

4

Toro 54-5030

PUMP COVER

$

$

Not available

5

Toro 54-5020

PUMP DIAPHRAGM

$64.99

$

Usually ships in 3-6 days

0

6

Toro 54-5010

PUMP COVER GASKET

$

$

Not available

7

Toro 54-4950

Valve-Throttle

$

$

Not available

8

Toro 54-4940

NEEDLE JET

$

$

Not available

9

Toro 54-4930

Retainer

$

$

Not available

10

Toro 54-5120

NEEDLE CUP

$

$

Not available

11

Toro 54-4920

SPRING

$

$

Not available

12

Toro 54-4910

CAP

$

$

Not available

13

Toro 54-4900

AIR SEAL

$

$

Not available

14

Toro 54-5130

Wire-Throttle
(Superseded to 60-8000)

$67.99

$

Usually ships in 3-6 days

0

15

Toro 54-4810

Gasket

$

$

Not available

16

Toro 54-4820

Plate

$

$

Not available

17

Toro 54-4830

INSULATOR GASKET

$

$

Not available

18

Toro 54-4840

Insulator

$

$

Not available

19

Toro 54-4860

Screw
(Superseded to 56-8720)

$

$

Not available

20

Toro 54-4850

CARB. GASKET

$

$

Not available

21

Toro 54-4960

ADJ. SCREW SPRING

$

$

Not available

22

Toro 54-4970

Screw-Adjusting
(Superseded to 54-6090)

$

$

Not available

23

Toro 54-4980

MAIN NEEDLE

$

$

Not available

24

Toro 54-4890

Carburetor Assembly (Incl. Ref. #3-13, 21-23, & 25-33)

$

$

Not available

25

Toro 54-4990

VALVE SPRING

$

$

Not available

26

Toro 54-5060

FLOAT ARM

$20.99

$

Usually ships in 3-6 days

0

27

Toro 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

28

Toro 54-5090

MAIN DIAPHRAGM

$70.99

$

Usually ships in 3-6 days

0

29

Toro 54-5100

DIAPHRAGM COVER

$69.99

$

Usually ships in 3-6 days

0

30

Toro 54-5110

SCREW W/ WASHER

$

$

Not available

31

Toro 54-5080

FLOAT SCREW

$

$

Not available

32

Toro 54-5070

FLOAT PIN

$

$

Not available

33

Toro 54-5050

FLOAT VALVE

$27.70

$

Usually ships in 3-6 days

0

34

Toro 54-5200

GRID

$22.99

$

Usually ships in 3-6 days

0

35

Toro 54-5190

ELEMENT

$11.99

$

In Stock, only 2 left!

0

36

Toro 54-5180

SCREEN

$

$

Not available

37

Toro 54-5160

CLEANER COVER

$

$

Not available

38

Toro 54-5170

CHOKE LABEL

$

$

Not available

Toro 54-5140

Air Cleaner Assembly (Incl. Ref. #34-38)

Note: Not illustrated

$

$

Not available
