51641 (TC 1000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

String Trimmer

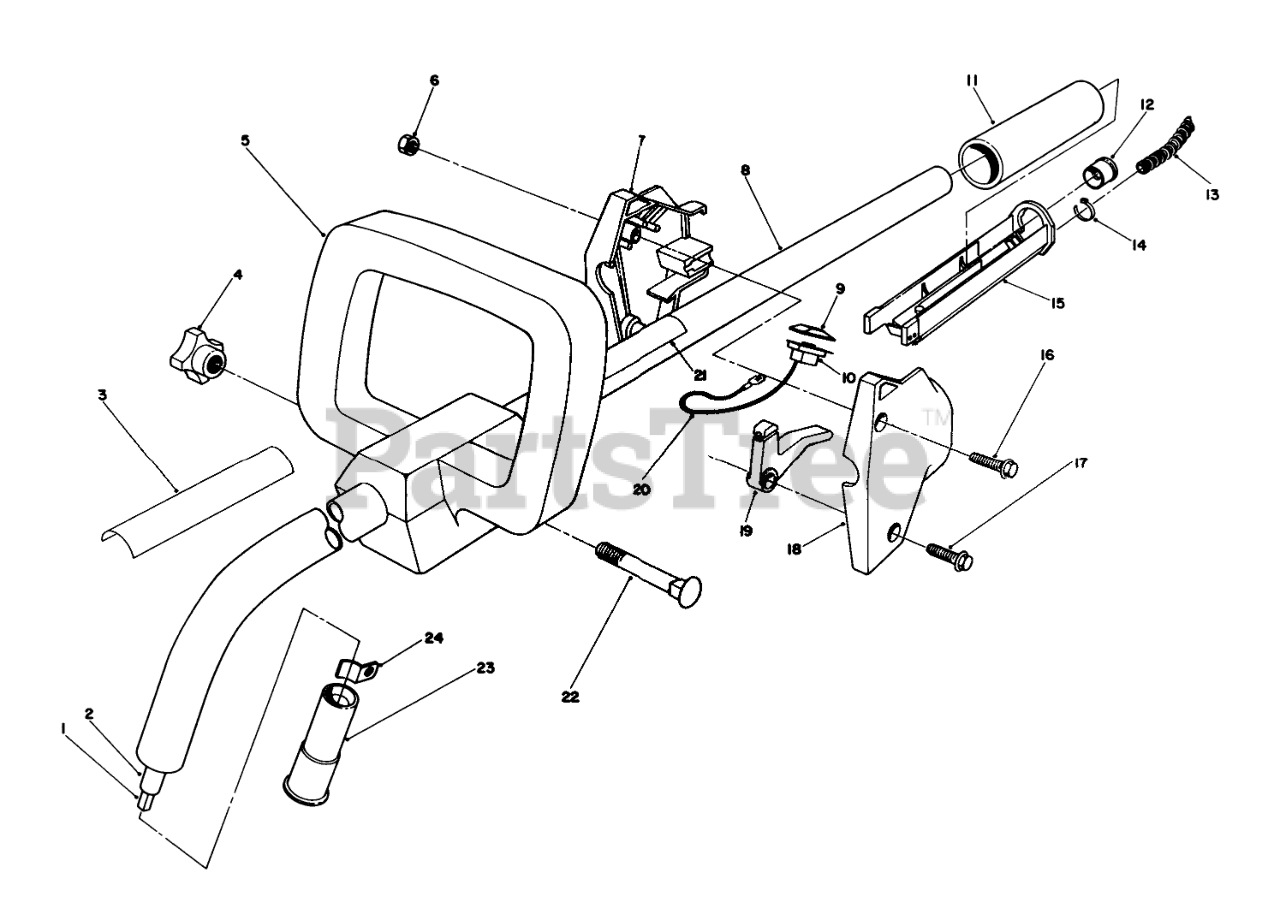

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9810

FLEX SHAFT

$

$

Not available

2

Toro 46-9820

Flex Shaft Liner

$

$

Not available

3

Toro 53-7150

Decal-Model No.

$

$

Not available

4

Toro 42-5890

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

5

Toro 42-5551

SECONDARY HANDLE

$

$

Not available

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

7

Toro 53-7251

THROTTLE HSG R H 1"

$

$

Not available

8

Toro 53-7360

Tube-Curved

$

$

Not available

9

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

10

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

11

Toro 53-7110

GRIP-RUBBER

$

$

Not available

12

Toro 54-7630

BUSHING

$2.49

$

In Stock, only 1 left!

0

13

Toro 33-5131

Cover-Cable

$

$

Not available

14

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

15

Toro 53-7280

TROUGH

$

$

Not available

16

Toro 32105-12

SCREW

$2.99

$

In Stock, only 4 left!

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

18

Toro 53-7261

THROTTLE HSG L H 1"

$

$

Not available

19

Toro 53-7271

THROTTLE LEVER

$

$

Not available

20

Toro 53-7370

WIRE ASM

$

$

Not available

21

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

22

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 20+

0

23

Toro 44-6640

INSERT-POLE END

$

$

Not available

24

Toro 46-9890

LOWER TUBE RETAINER

$

$

Not available
