51641 (TC 1000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

String Trimmer

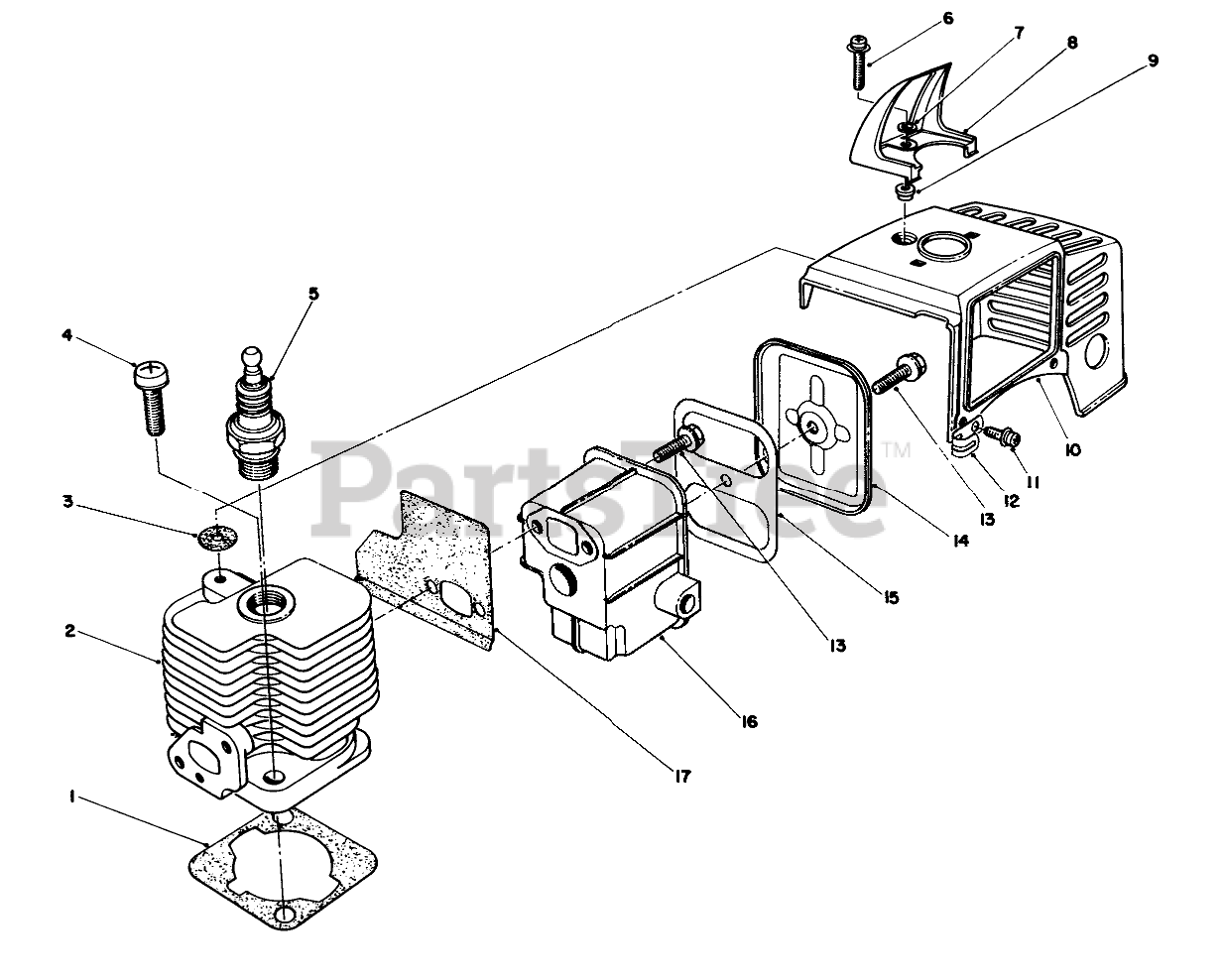

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4590

CYL. GASKET

$

$

Not available

2

Toro 54-4580

CYLINDER

$

$

Not available

3

Toro 54-4560

GASKET

$

$

Not available

4

Toro 54-4620

Bolt

$

$

Not available

5

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

6

Toro 54-4520

SCREW W/ WASHER

$

$

Not available

7

Toro 54-4540

Washer

$

$

Not available

8

Toro 54-4530

COVER

$

$

Not available

9

Toro 54-4550

Bushing

$

$

Not available

10

Toro 54-4600

TOP COVER

$

$

Not available

11

Toro 54-4400

Screw

$

$

Not available

12

Toro 54-4570

CLAMP

$

$

Not available

13

Toro 54-5210

Bolt

$

$

Not available

14

Toro 54-5220

Lid-Muffler

$

$

Not available

15

Toro 54-5230

MUFFLER GASKET

$

$

Not available

16

Toro 54-5240

MUFFLER BODY

$

$

Not available

17

Toro 54-5250

MUFFLER GASKET

$

$

Not available

Toro 55-7390

Spark Arrestor-Muffler (Optional)

Note: Not illustrated

$

$

Not available
