51642 (TC 2000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) CLUTCH CASE & FAN ASSEMBLY Parts Diagram

String Trimmer

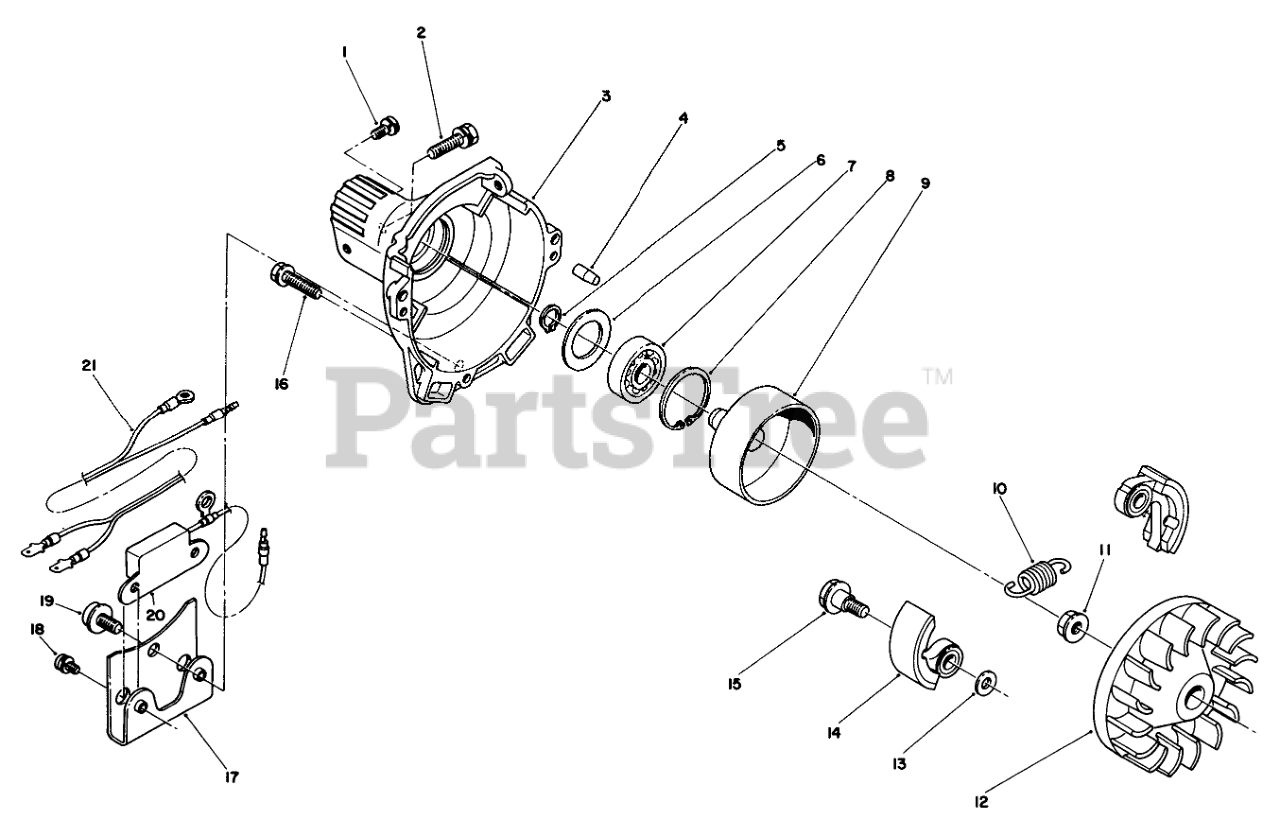

CLUTCH CASE & FAN ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4420

Screw

$

$

Not available

2

Toro 54-4440

Bolt

$

$

Not available

3

Toro 60-7580

CLUTCH CASE

$5.49

$

In Stock, Qty 8

0

4

Toro 60-7590

PIN

$

$

Not available

5

Toro 54-4470

SNAPRING

$

$

Not available

6

Toro 54-4460

Washer

$

$

Not available

7

Toro 54-4480

BEARING

$

$

Not available

8

Toro 54-4490

SNAPRING

$

$

Not available

9

Toro 60-7640

CLUTCH DRUM

$144.99

$

Usually ships in 3-6 days

0

10

Toro 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

11

Toro 60-7770

NUT

$

$

Not available

12

Toro 60-7780

Fan
(Superseded to 65-2580)

$

$

Not available

13

Toro 56-6070

Washer

$

$

Not available

14

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

15

Toro 56-6060

Bolt-Clutch
(Superseded to 54-5290)

$

$

Not available

16

Toro 60-7610

BOLT & WASHER

$

$

Not available

17

Toro 60-7630

Bracket-Unit

$

$

Not available

18

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

19

Toro 60-7620

SCREW & WASHER

$

$

Not available

20

Toro 60-7880

Unit-Transistor

$

$

Not available

21

Toro 60-7900

Wire-Lead

$

$

Not available

Toro 54-6240

Clutch Assembly (Incl. Ref. #10, 14)
(Superseded to 77-1830)

Note: Not illustrated

$

$

Not available
