51642 (TC 2000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

String Trimmer

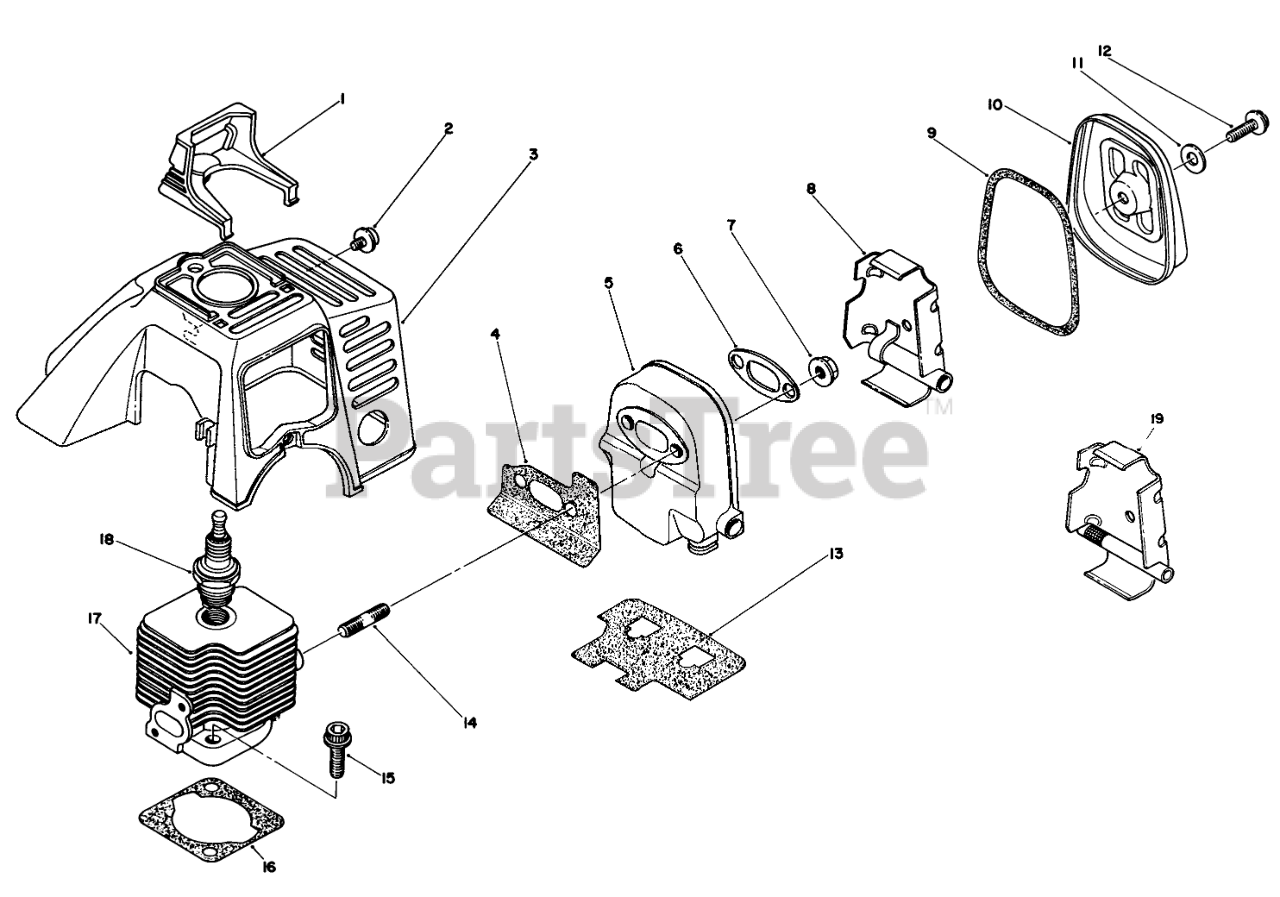

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 60-7670

SPARK PLUG GUARD

$

$

Not available

2

Toro 60-7680

SCREW & WASHERE

$

$

Not available

3

Toro 60-7690

COVER-TOP

$

$

Not available

4

Toro 60-8050

Gasket-Muffler

$

$

Not available

5

Toro 60-8060

Body-Muffler

$

$

Not available

6

Toro 60-8070

PLATE

$

$

Not available

7

Toro 60-7770

NUT

$

$

Not available

8

Toro 60-8090

Plate

$

$

Not available

9

Toro 60-8100

GASKET

$

$

Not available

10

Toro 60-8110

MUFFLER LID

$

$

Not available

11

Toro 60-8120

Washer-Seal

$

$

Not available

12

Toro 60-8130

Bolt-Flange

$

$

Not available

13

Toro 60-8140

Gasket

$

$

Not available

14

Toro 60-7700

Stud

$

$

Not available

15

Toro 60-7720

FLANGE BOLT

$

$

Not available

16

Toro 60-7730

CYL GASKET

$7.49

$

In Stock, Qty 7

0

17

Toro 60-7710

Cylinder

$

$

Not available

18

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

19

Toro 57-5680

Spark Arrester Muffler (Optional)

$

$

Not available
