51645 (TC 5000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) Carburetor Air Cleaner Assembly Parts Diagram

String Trimmer

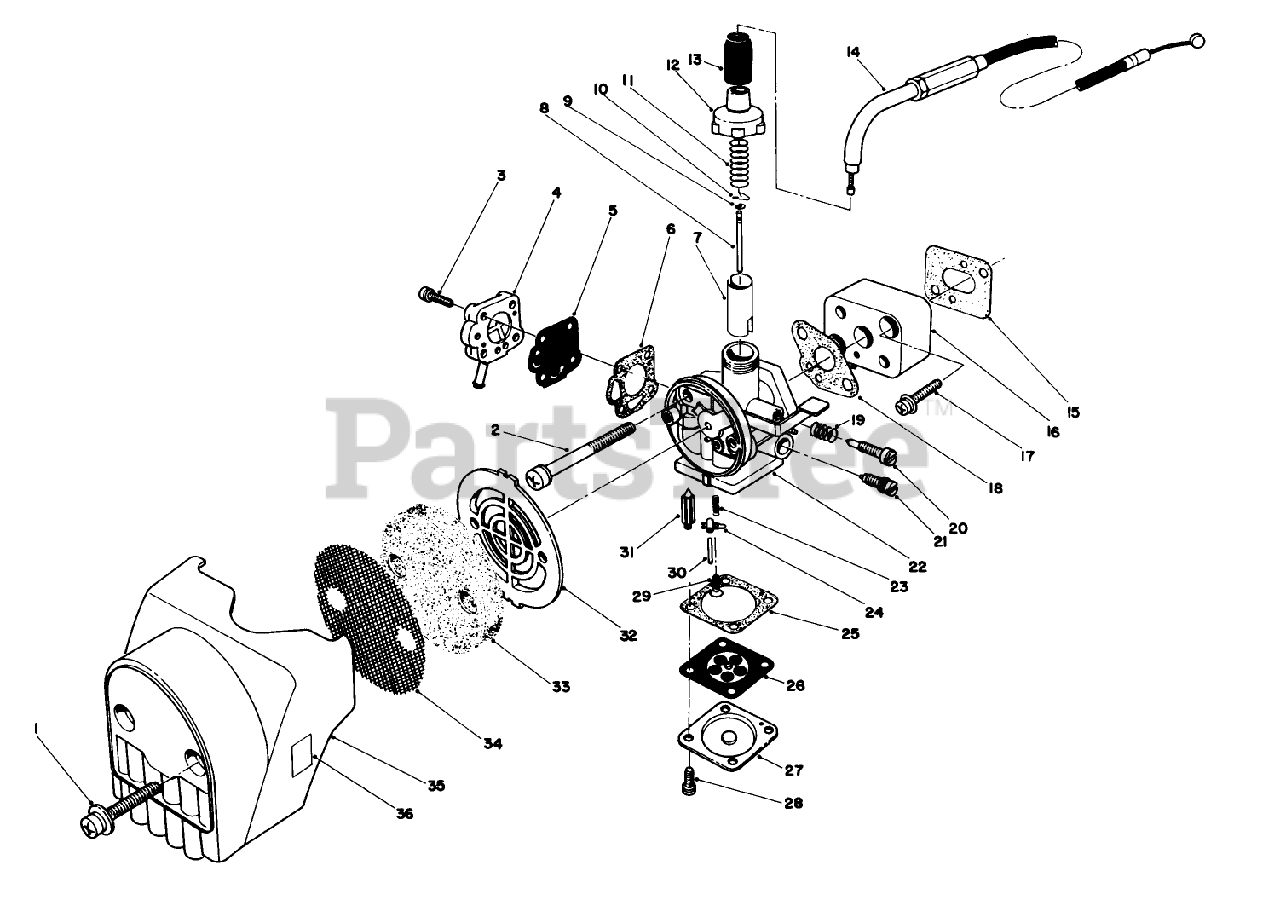

Carburetor Air Cleaner Assembly Parts Diagram

  • Title

1

Toro 54-5150

DISCONTINUED
(Superseded to 60-8020)

$

$

Not available

2

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

3

Toro 54-5040

DISCONTINUED

$

$

Not available

4

Toro 54-6120

See Supercession: 54-5030
(Superseded to 54-5030)

$

$

Not available

5

Toro 54-6110

See Supercession: 54-5020
(Superseded to 54-5020)

$

$

Not available

6

Toro 54-5010

DISCONTINUED

$

$

Not available

7

Toro 54-6840

DISCONTINUED

$

$

Not available

8

Toro 54-6830

DISCONTINUED

$

$

Not available

9

Toro 54-4930

DISCONTINUED

$

$

Not available

10

Toro 54-7090

CLIP

$

$

Not available

11

Toro 54-6820

DISCONTINUED

$

$

Not available

12

Toro 54-4910

CAP

$

$

Not available

13

Toro 54-4900

AIR SEAL

$

$

Not available

14

Toro 54-6850

DISCONTINUED

$

$

Not available

15

Toro 54-6790

GASKET, INSULATOR

$

$

Not available

16

Toro 54-6040

DISCONTINUED

$

$

Not available

17

Toro 54-6050

See Supercession: 60-7930
(Superseded to 60-7930)

$

$

Not available

18

Toro 54-4850

DISCONTINUED

$

$

Not available

19

Toro 54-4960

DISCONTINUED

$

$

Not available

20

Toro 54-6090

DISCONTINUED

$

$

Not available

21

Toro 54-4980

MAIN NEEDLE

$

$

Not available

22

Toro 54-6810

CARBURETOR (D)

$834.99

$

Usually ships in 3-6 days

0

23

Toro 54-4990

DISCONTINUED

$

$

Not available

24

Toro 54-5060

FLOAT ARM

$

$

Not available

25

Toro 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

26

Toro 54-6130

See Supercession: 54-5090
(Superseded to 54-5090)

$

$

Not available

27

Toro 54-5100

DIAPHRAGM COVER

$91.99

$

Usually ships in 3-6 days

0

28

Toro 54-5110

DISCONTINUED

$

$

Not available

29

Toro 54-5080

FLOAT SCREW

$

$

Not available

30

Toro 54-5070

DISCONTINUED

$

$

Not available

31

Toro 54-5050

DISCONTINUED

$27.70

$

Usually ships in 3-6 days

0

32

Toro 54-5200

GRID

$

$

Not available

33

Toro 54-5190

ELEMENT

$18.99

$

Usually ships in 3-6 days

0

34

Toro 54-5180

DISCONTINUED

$

$

Not available

35

Toro 54-6870

COVER, CLEANER

$56.99

$

Usually ships in 3-6 days

0

36

Toro 54-5170

CHOKE LABEL

$

$

Not available

Toro 54-6860

DISCONTINUED

Note: Not illustrated

$

$

Not available
