51645 (TC 5000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

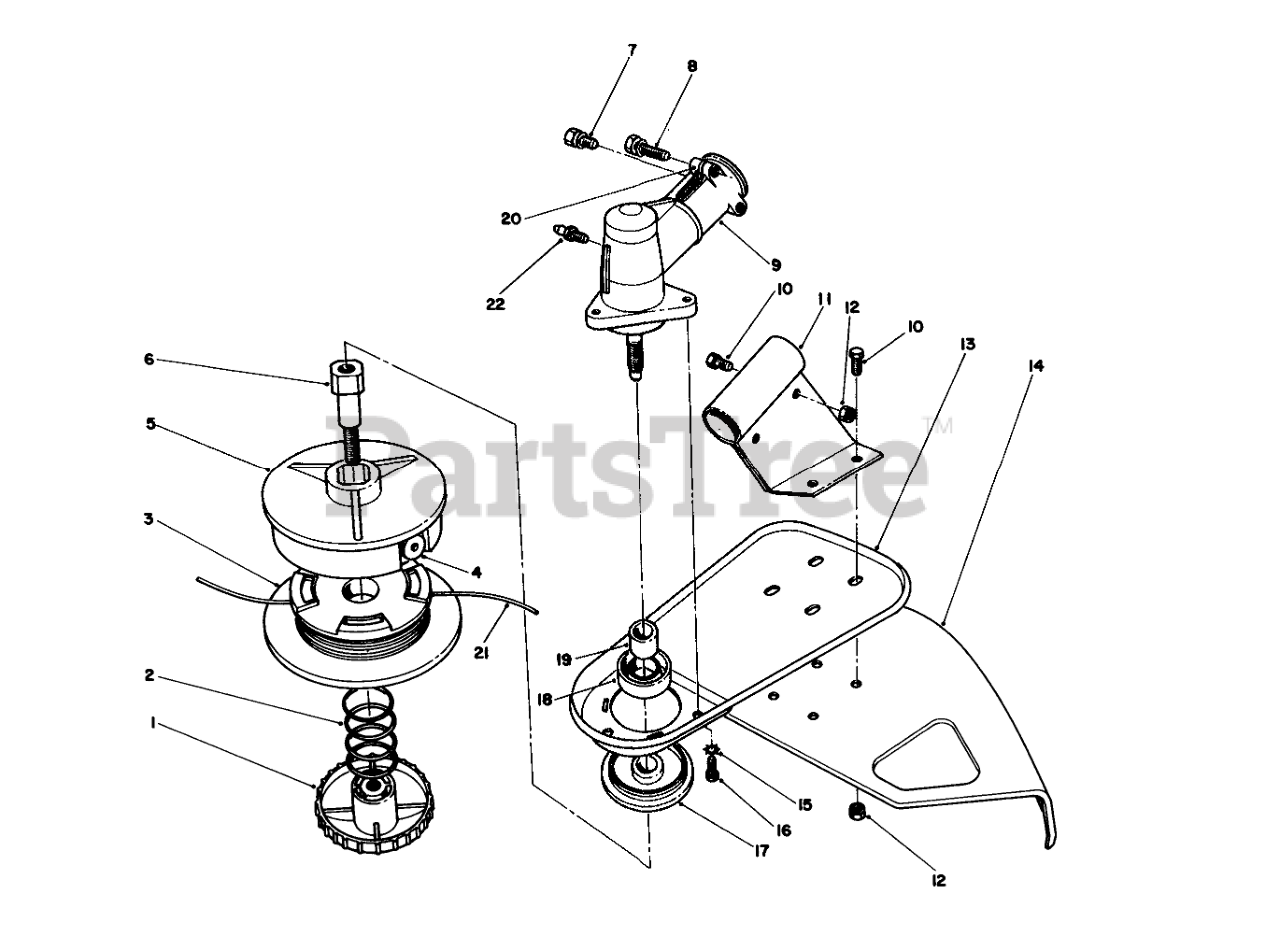

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 52-1350

Knob-L.H.

$

$

Not available

2

Toro 52-1370

Spring

$

$

Not available

3

Toro 52-1330

Spool-Inner

$

$

Not available

4

Toro 52-1360

Eyelet

$

$

Not available

5

Toro 52-1340

Housing-Spool
(Superseded to 57-5670)

$

$

Not available

6

Toro 52-1380

SHAFT ADAPTER
(Superseded to 57-5670)

$

$

Not available

7

Toro 48-2150

HHMS SCREW

$9.49

$

Usually ships in 3-6 days

0

8

Toro 48-2130

HHMS SCREW

$

$

Not available

9

Toro 52-5720

Gear Box Assembly (Incl.Ref. #7, 8, 17-20)

$549.99

$

Usually ships in 3-6 days

0

10

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 53-7230

Bracket-Shield

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 47-2800

SHIELD SUPPORT R

$

$

Not available

14

Toro 52-5960

GRASS SHIELD-STEEL

$

$

Not available

15

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 47-2830

SCREW

$0.99

$

Usually ships in 3-6 days

0

17

Toro 48-2080

DUST CAP F/W

$166.99

$

Usually ships in 3-6 days

0

18

Toro 48-2090

OIL SEAL

$

$

Not available

19

Toro 48-2100

SPLINED SLEEVE

$

$

Not available

20

Toro 48-2140

WASHER

$

$

Not available

21

Toro 43-5000

REPL LINE PKG

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 41-6820

#1 BULK SPOOL .095

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0

Toro 46-2730

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 52-5070

REPLACMNT LINE(20 FT)

Note: Not illustrated

$

$

Not available

Toro 46-2740

3 LB BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 52-5060

Manual-Feed Cutter (Incl. Ref. #1-6)
(Superseded to 57-5670)

Note: Not illustrated

$

$

Not available

22

Toro 53-7410

ZERK

$

$

Not available
