51650 (TC 3100) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

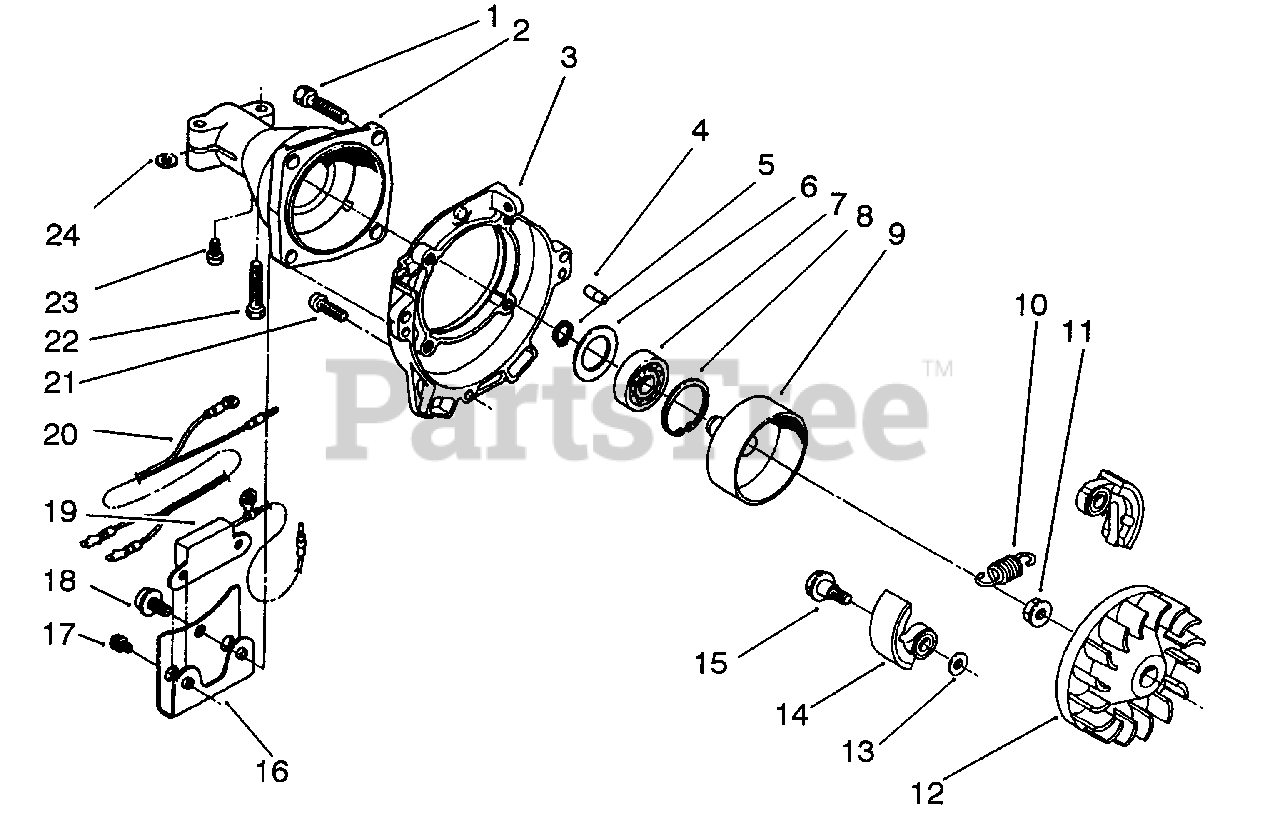

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 54-5720

Screw/Washer

$

$

Not available

2

Lawn-Boy 65-2530

Case-Clutch

$

$

Not available

3

Lawn-Boy 88-0170

Case-Fan

$

$

Not available

4

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

5

Lawn-Boy 54-5690

Ring-Retaining

$

$

Not available

6

Lawn-Boy 54-5700

Washer

$

$

Not available

7

Lawn-Boy 54-5680

Bearing-Ball

$

$

Not available

8

Lawn-Boy 54-5670

Ring-Retainer

$

$

Not available

9

Lawn-Boy 54-6250

Drum-Clutch

$

$

Not available

10

Lawn-Boy 65-4440

Spring

$

$

Not available

11

Lawn-Boy 54-4670

Nut

$

$

Not available

12

Lawn-Boy 65-2580

Fan

$

$

Not available

13

Lawn-Boy 65-4450

Washer

$3.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 54-6220

Shoe-Clutch

$

$

Not available

15

Lawn-Boy 54-5290

Bolt-Clutch

$10.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 60-7630

Bracket-Unit

$

$

Not available

17

Lawn-Boy 54-4610

Screw/Washer

$

$

Not available

18

Lawn-Boy 60-7620

Screw/Washer

$

$

Not available

19

Lawn-Boy 65-2590

Transistor-Unit

$

$

Not available

20

Lawn-Boy 54-6020

Wire

$34.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 60-7610

Bolt/Washer

$

$

Not available

22

Lawn-Boy 54-5740

Bolt/washer

$

$

Not available

23

Lawn-Boy 65-2550

Screw/Washer

$

$

Not available

24

Lawn-Boy 65-2540

Washer

$

$

Not available

Lawn-Boy 77-1830

Clutch Assembly (Incl. Ref. #10 & 14)

Note: Not Illustrated.

$

$

Not available
