51650 (TC 3100) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

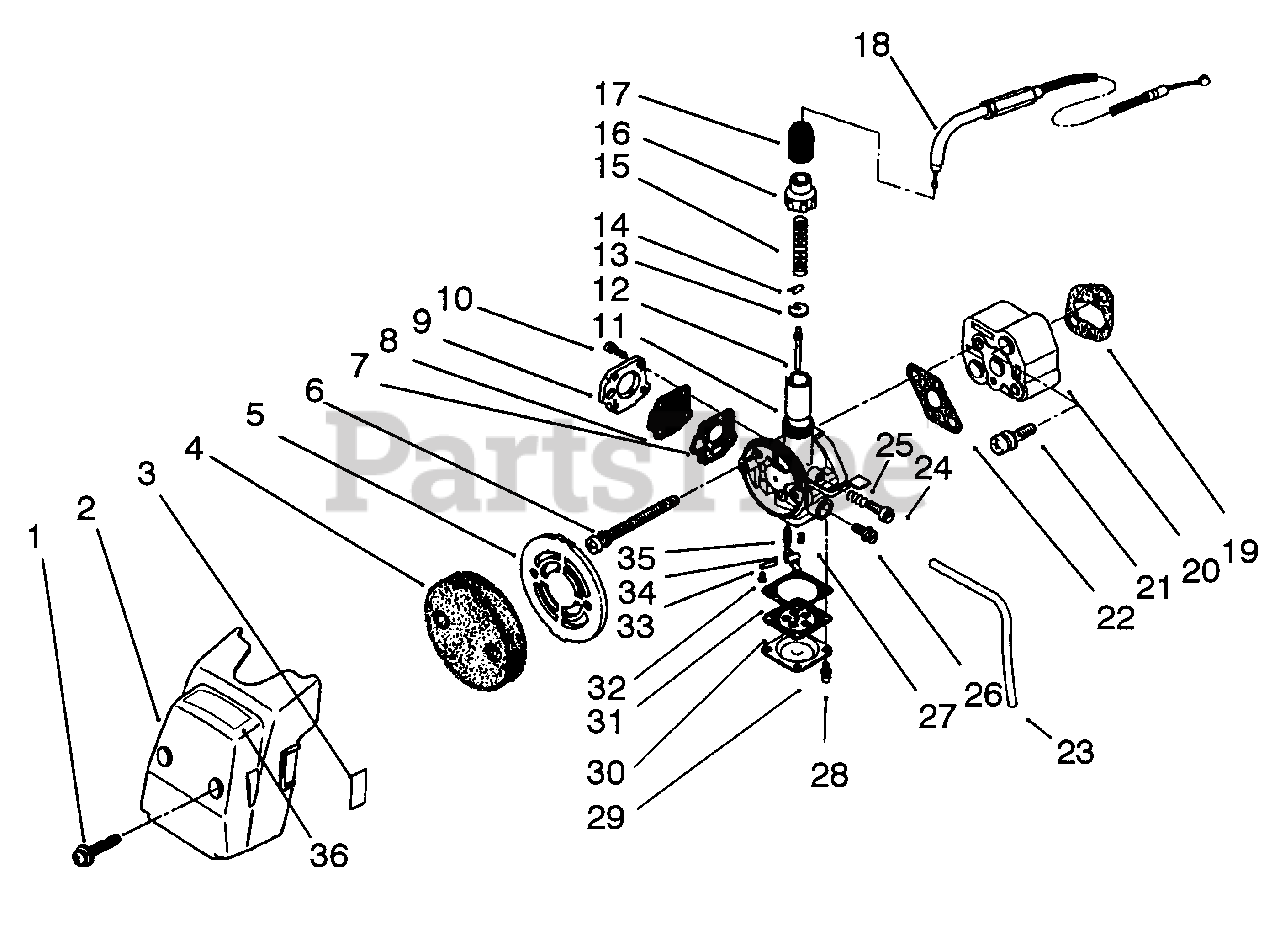

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 60-8020

Screw/Washer

$

$

Not available

2

Lawn-Boy 60-8030

Case-Cleaner

$

$

Not available

3

Lawn-Boy 54-5170

Label-Choke

$

$

Not available

4

Lawn-Boy 60-8040

Element
(Superseded to 54-5190)

$18.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 54-5200

Grid

$

$

Not available

6

Lawn-Boy 54-4870

Screw/Washer

$3.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 54-5010

Gasket-Pump

$

$

Not available

8

Lawn-Boy 54-5020

Diaphragm-Pump

$

$

Not available

9

Lawn-Boy 60-7980

Pump Cover Assembly

$

$

Not available

10

Lawn-Boy 54-5040

Screw/Washer

$

$

Not available

11

Lawn-Boy 60-7970

Valve-Throttle

$109.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 60-7960

Needle Jet Assembly

$

$

Not available

13

Lawn-Boy 60-7950

Retainer-Spring

$

$

Not available

14

Lawn-Boy 54-5120

Clip-Needle

$

$

Not available

15

Lawn-Boy 54-4920

Spring-Throttle

$

$

Not available

16

Lawn-Boy 54-4910

Cap-Mixing Chamber

$

$

Not available

17

Lawn-Boy 54-4900

Cap-Rubber

$

$

Not available

18

Lawn-Boy 54-6140

Cable-Throttle

$

$

Not available

19

Lawn-Boy 60-7920

Gasket-Insulator

$

$

Not available

20

Lawn-Boy 60-7910

Insulator

$

$

Not available

21

Lawn-Boy 60-7930

Screw/Washer

$

$

Not available

22

Lawn-Boy 60-7940

Gasket-Carburetor

$

$

Not available

23

Lawn-Boy 56-9000

Tube-Fuel

$

$

Not available

24

Lawn-Boy 54-4970

Screw-Adjusting
(Superseded to 54-6090)

$

$

Not available

25

Lawn-Boy 54-4960

Spring-Adjusting

$

$

Not available

26

Lawn-Boy 54-4980

Jet Main

$

$

Not available

27

Lawn-Boy 54-4990

Spring-lnlet Valve

$

$

Not available

28

Lawn-Boy 54-5110

Screw/Washer

$

$

Not available

29

Lawn-Boy 54-5100

Cover-Diaphragm

$91.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 54-5090

Diaphragm

$

$

Not available

31

Lawn-Boy 54-5000

Gasket-Diaphragm

$11.99

$

In Stock, Qty 9

0

32

Lawn-Boy 54-5080

Setscrew

$

$

Not available

33

Lawn-Boy 54-5070

Pin-Float

$

$

Not available

34

Lawn-Boy 54-5060

Arm-Float

$

$

Not available

35

Lawn-Boy 54-5050

Valve-Float

$27.70

$

Usually ships in 3-6 days

0

36

Lawn-Boy 84-8830

Decal-Fuel Mix

$

$

Not available

Lawn-Boy 60-8010

Air Cleaner Assembly (Incl. Ref. #2-5)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 65-2600

Carburetor Assembly (Incl. Ref. #7-17 & 24-35)

Note: Not Illustrated

$

$

Not available
