51650 (TC 3100) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1992) SPARK ARRESTOR MUFFLER KIT 65-4300 (OPTIONAL) Parts Diagram
String Trimmer

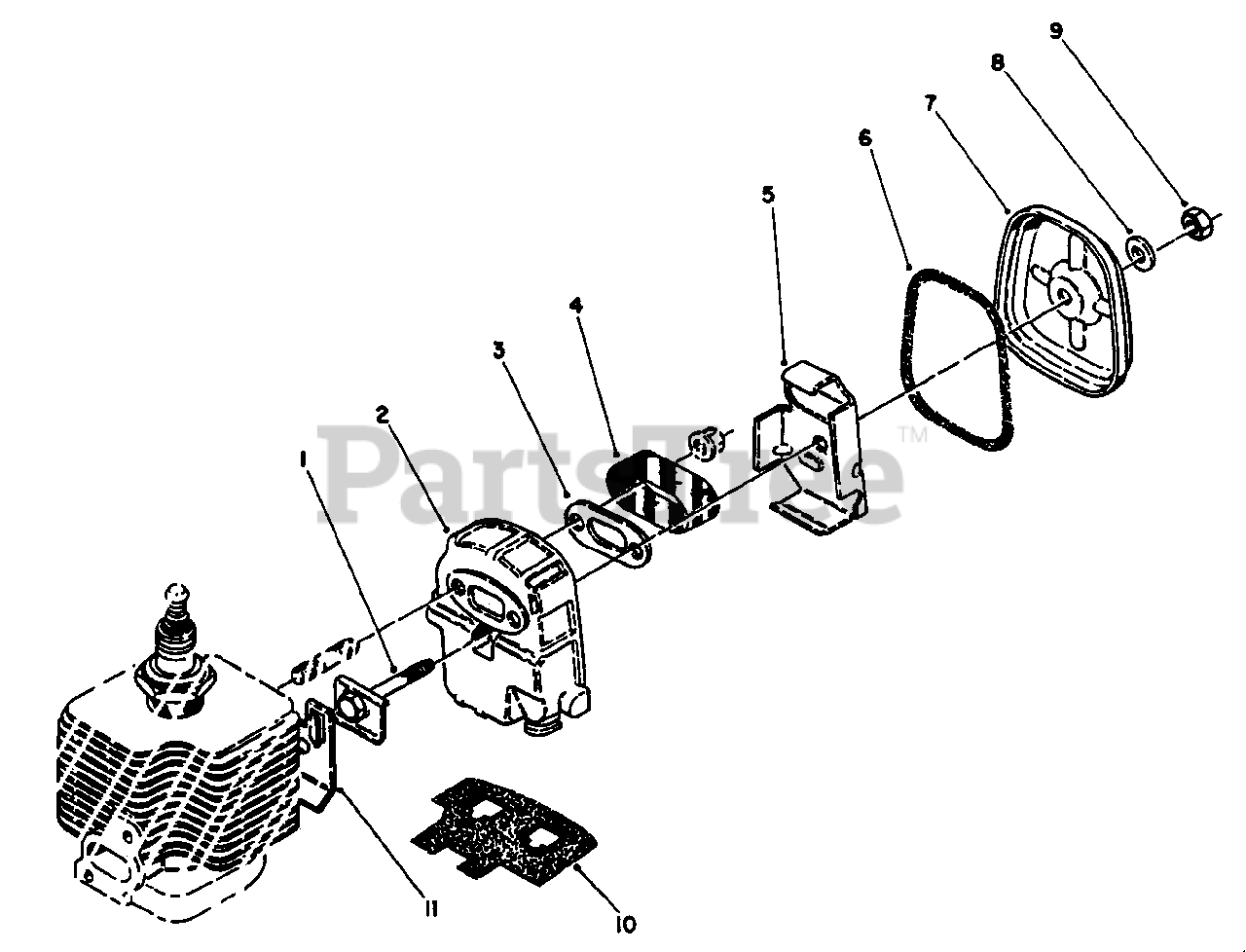

SPARK ARRESTOR MUFFLER KIT 65-4300 (OPTIONAL) Parts Diagram
Lawn-Boy 65-2630
Bolt-Muffler Body
$
$
Not available
Lawn-Boy 65-4320
Body-Muffler
$
$
Not available
Lawn-Boy 65-4330
Plate
$
$
Not available
Lawn-Boy 65-4340
Screen
$
$
Not available
Lawn-Boy 65-4350
Plate
$
$
Not available
Lawn-Boy 60-8100
Gasket-Muffler Seal
$
$
Not available
Lawn-Boy 60-8110
Lid-Muffler
$
$
Not available
Lawn-Boy 65-4410
Washer-Gasket
$
$
Not available
Lawn-Boy 65-4420
Nut
$
$
Not available
Lawn-Boy 65-4360
Gasket
$
$
Not available
Lawn-Boy 65-4370
Gasket-Muffler
$
$
Not available
