51650 (TC 3100) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

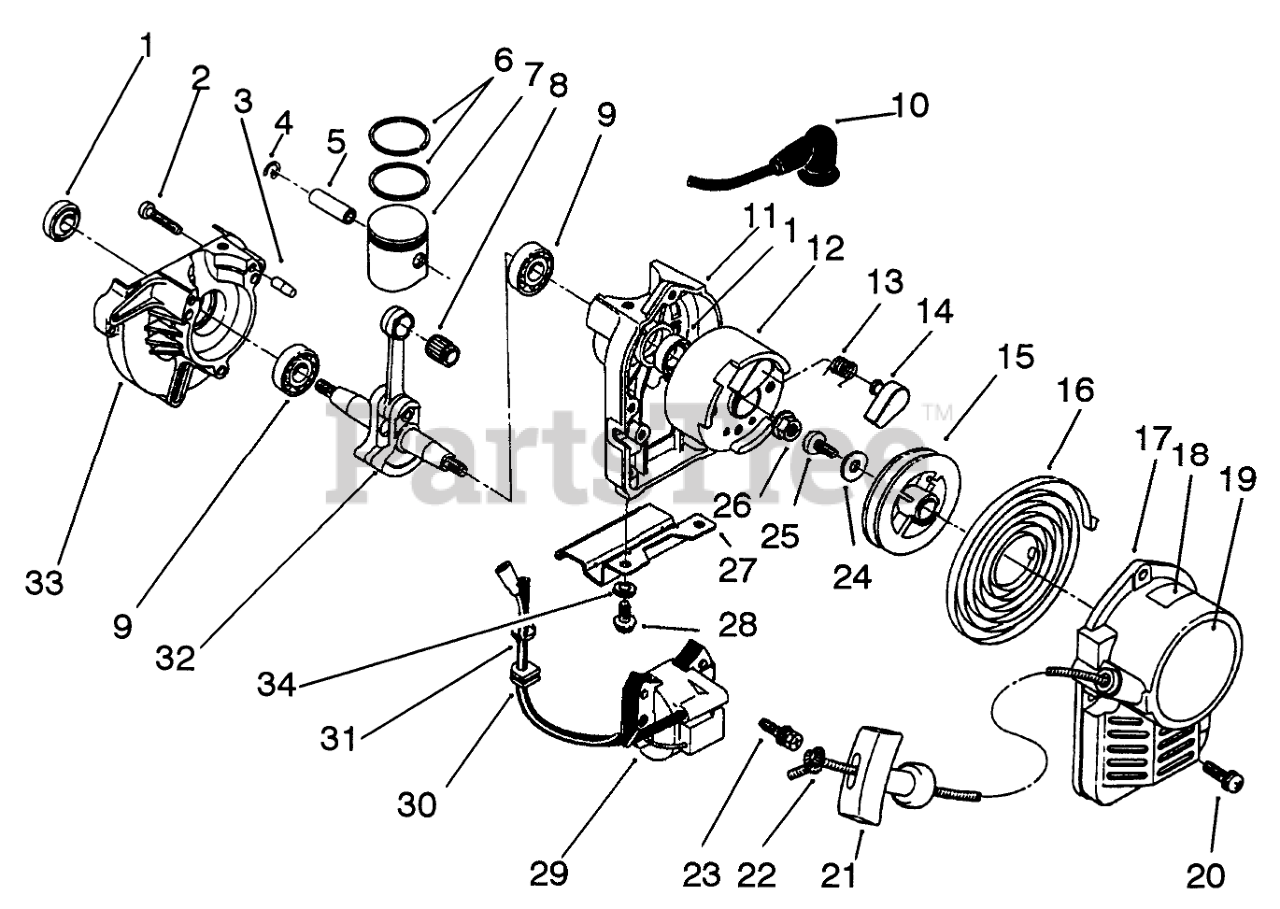

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4380

OIL SEAL

$21.99

$

Usually ships in 3-6 days

0

2

Toro 54-4330

Screw

$

$

Not available

3

Toro 60-7590

PIN

$

$

Not available

4

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

5

Toro 54-5910

PISTON PIN

$

$

Not available

6

Toro 54-5490

SEAT VALVE

$

$

Not available

7

Toro 54-5900

Piston Assembly (Incl. Ref. #5)

$

$

Not available

8

Toro 54-5930

NEEDLE BEARING

$

$

Not available

9

Toro 54-4360

BEARING

$

$

Not available

10

Toro 54-4730

CAP-PLUG

$

$

Not available

11

Toro 60-7600

STARTER CASE

$

$

Not available

12

Toro 88-0190

Rotor Assembly (Incl. Ref. #13-14)

$

$

Not available

13

Toro 77-1370

RETURN SPRING

$

$

Not available

14

Toro 77-1380

RATCHET

$

$

Not available

15

Toro 60-8230

REEL

$

$

Not available

16

Toro 54-5420

SPRING

$

$

Not available

17

Toro 88-0120

STARTER CASE

$

$

Not available

18

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

19

Toro 86-9450

Decal-Toro

$

$

Not available

20

Toro 60-7930

SCREW & WASHER

$

$

Not available

21

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

22

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

23

Toro 60-7610

BOLT & WASHER

$

$

Not available

24

Toro 54-5400

Washer

$

$

Not available

25

Toro 88-0200

SCREW

$

$

Not available

26

Toro 54-4670

NUT

$

$

Not available

27

Toro 82-6110

STAND SUPPORT

$20.99

$

Usually ships in 3-6 days

0

28

Toro 46-0053

M6 X 1 X 1/2 MWH SCREW

$

$

Not available

29

Toro 60-7860

IGNITION COIL

$

$

Not available

30

Toro 60-7840

GROMMET

$

$

Not available

31

Toro 54-5990

BAND

$

$

Not available

32

Toro 77-1330

CRANKSHAFT ASSEMBLY

$

$

Not available

33

Toro 60-7650

DRIVE CASE

$

$

Not available

34

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

Toro 88-0110

Recoil Assembly (Incl. Ref. #15-17, 21, 22, 24 & 25)

Note: Not illustrated

$

$

Not available
