51655 (TC 3110) - Toro String Trimmer (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

String Trimmer

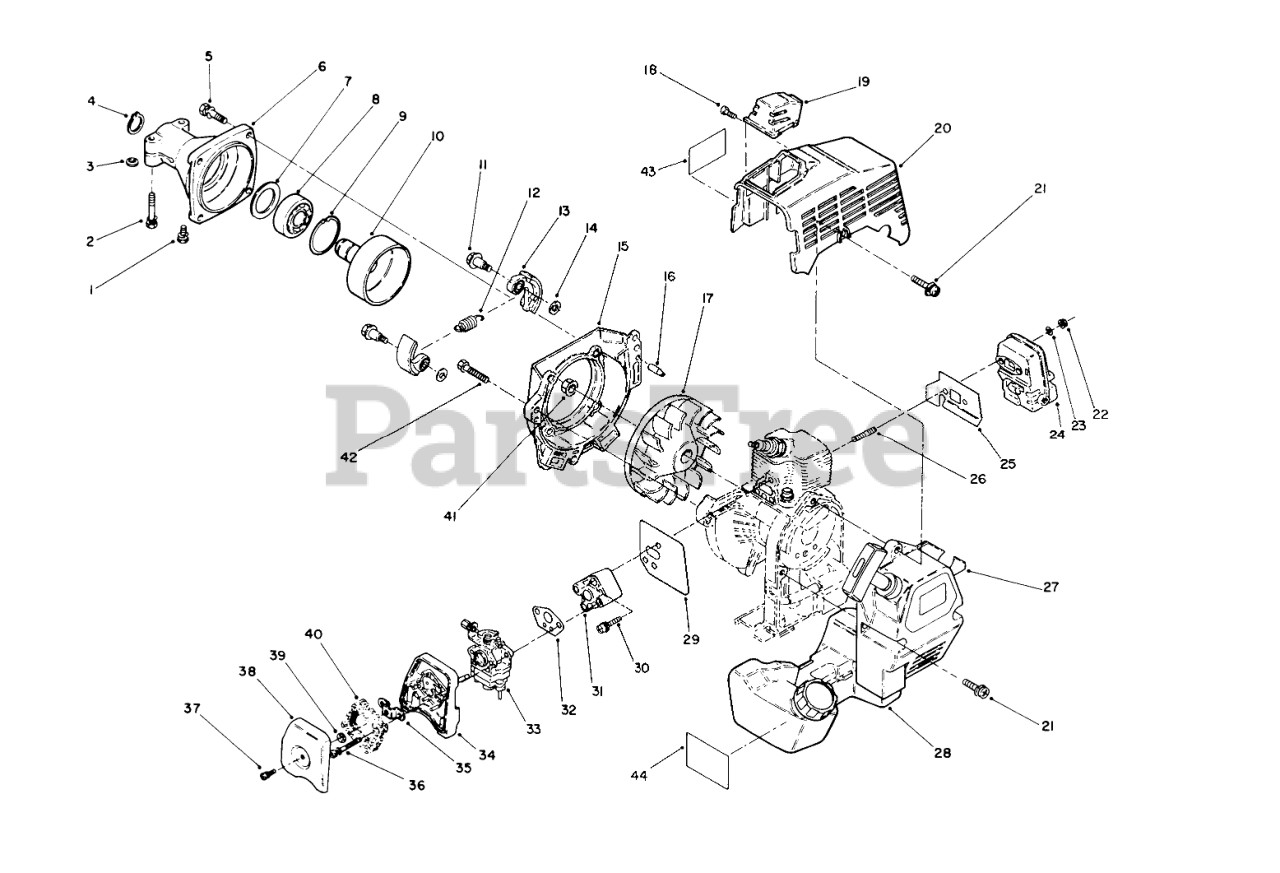

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-2550

Screw/Washer

$

$

Not available

2

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

3

Toro 65-2540

WASHER

$

$

Not available

4

Toro 54-5690

SNAP RING

$

$

Not available

5

Toro 54-5720

Bolt/Washer

$

$

Not available

6

Toro 65-2530

CLUTCH CASE

$

$

Not available

7

Toro 54-5700

Washer

$

$

Not available

8

Toro 54-5680

BALL BEARING

$

$

Not available

9

Toro 54-5670

SNAP RING

$

$

Not available

10

Toro 54-6250

CLUTCH DRUM

$

$

Not available

11

Toro 54-5290

CLUTCH BOLT

$10.99

$

Usually ships in 3-6 days

0

12

Toro 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

13

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

Toro 77-1830

Clutch Assembly (Incl. Ref. #12 & 13)

Note: Not illustrated

$

$

Not available

14

Toro 77-1840

WASHER

$

$

Not available

15

Toro 77-1100

Case-Fan

$

$

Not available

16

Toro 60-7590

PIN

$

$

Not available

17

Toro 60-7780

Fan
(Superseded to 65-2580)

$

$

Not available

18

Toro 54-6890

SCREW & WASHER

$

$

Not available

19

Toro 77-1190

SPARK PLUG GUARD

$

$

Not available

20

Toro 77-1230

TOP COVER

$159.99

$

Usually ships in 3-6 days

0

21

Toro 77-1860

SCREW & WASHER

$

$

Not available

22

Toro 77-1790

MUFFLER FLANGE NUT

$

$

Not available

23

Toro 65-4410

GASKET

$

$

Not available

24

Toro 77-1800

MUFFLER ASSEMBLY

$

$

Not available

25

Toro 77-1740

MUFFLER GASKET

$

$

Not available

26

Toro 77-1210

MUFFLER STUD

$

$

Not available

27

Toro 77-1850

Starter-Recoil
(Superseded to 82-6180)

$

$

Not available

28

Toro 77-1900

Tank Assembly-Fuel
(Superseded to 88-0230)

$283.99

$

Usually ships in 3-6 days

0

29

Toro 77-1460

INSULATOR GASKET

$

$

Not available

30

Toro 60-7930

SCREW & WASHER

$

$

Not available

31

Toro 77-1450

INSULATOR

$

$

Not available

32

Toro 77-1430

CARBURETOR GASKET

$6.99

$

Usually ships in 3-6 days

0

33

Toro 77-1420

Carburator Assembly
(Superseded to 99-5283)

$

$

Not available

34

Toro 77-1760

CLEANER CASE

$50.99

$

Usually ships in 3-6 days

0

35

Toro 77-1750

BRACKET

$

$

Not available

36

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

37

Toro 60-7680

SCREW & WASHERE

$

$

Not available

38

Toro 77-1710

CLEANER COVER

$33.99

$

Usually ships in 3-6 days

0

39

Toro 77-1720

NUT

$9.99

$

In Stock, only 1 left!

0

40

Toro 77-1730

CLEANER ELEMENT

$24.99

$

Usually ships in 3-6 days

0

41

Toro 54-4670

NUT

$

$

Not available

42

Toro 54-4790

BOLT AND WASHER

$5.49

$

Usually ships in 3-6 days

0

43

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

44

Toro 70-9930

DECAL - FUEL TANK

$

$

Not available

Toro 76-4360

Engine TM24

Note: Not illustrated

$

$

Not available
