51660 (TC 3500) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

String Trimmer

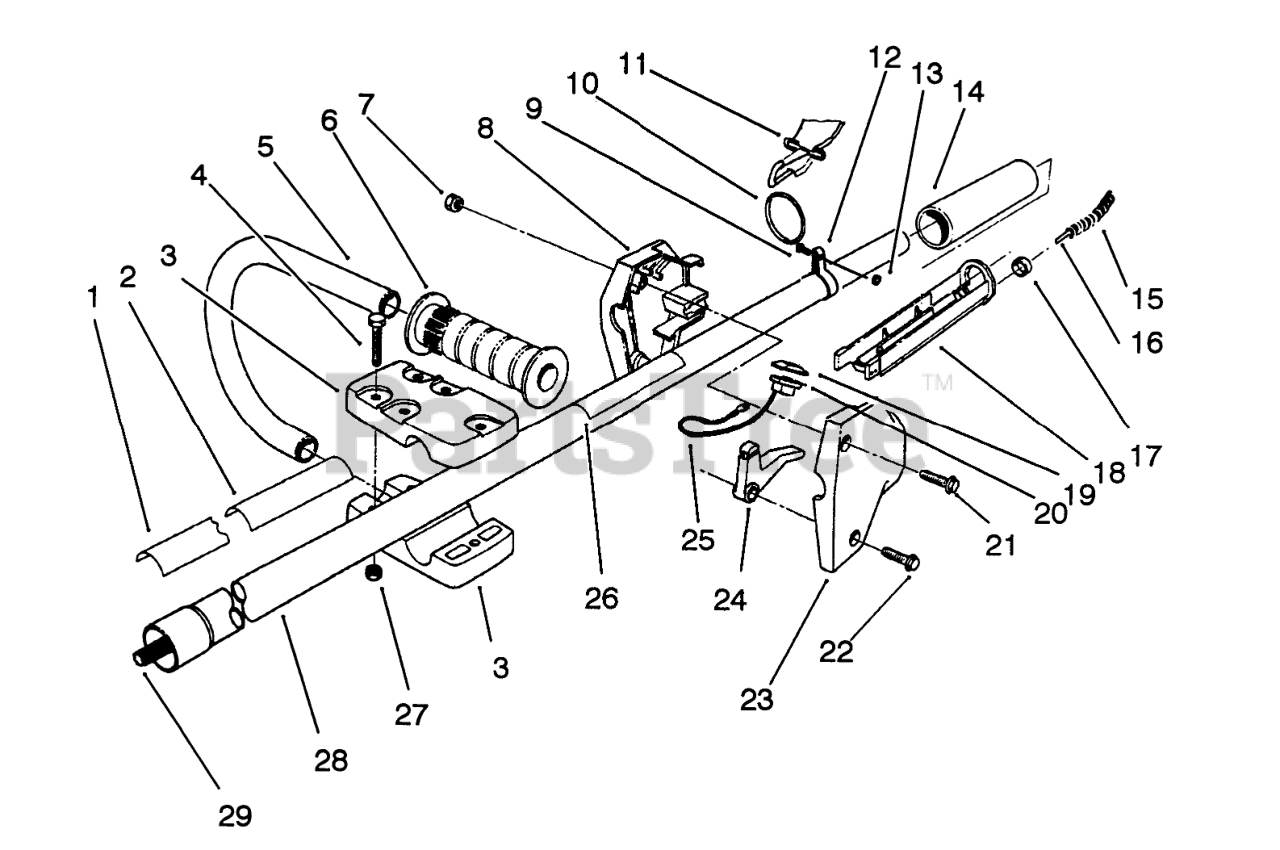

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-4490

DECAL - TC3500

$

$

Not available

2

Toro 83-6020

DECAL-DANGER (JAPAN)

$

$

Currently unavailable

3

Toro 53-7080

CLAMP

$

$

Not available

4

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

5

Toro 61-4770

J HANDLE TUBE

$

$

Not available

6

Toro 235-24

LH GRIP

$

$

Not available

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

8

Toro 57-5481

RH HOUSING

$

$

Not available

9

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

10

Toro 44-7540

RING-HARNESS

$

$

Not available

11

Toro 57-5430

Harness-Shoulder
(Superseded to 46-2951)

$

$

Not available

12

Toro 44-7550

HARNESS CLAMP

$

$

Not available

13

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

14

Toro 53-7120

GRIP - RUBBER

$17.99

$

Usually ships in 3-6 days

0

15

Toro 55-8411

CABLE COVER

$

$

Not available

16

Toro 76-4370

THROTTLE CABLE

$

$

Not available

17

Toro 2412-48

RING FITTING

$

$

Not available

18

Toro 53-7290

TROUGH 1"

$

$

Not available

19

Toro 218-557

SWITCH COVER

$2.99

$

Usually ships in 3-6 days

0

20

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

21

Toro 32105-12

SCREW

$2.99

$

In Stock, only 4 left!

0

22

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

23

Toro 57-5491

LH HOUSING

$

$

Not available

24

Toro 53-7273

THROTTLE LEVER

$

$

Not available

25

Toro 53-7370

WIRE ASM

$

$

Not available

26

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 61-4390

TUBE ASSEMBLY

$

$

Not available

29

Toro 53-7211

SPLINE SHAFT

$216.99

$

Usually ships in 3-6 days

0
