51665 (TC 3510) - Lawn-Boy String Trimmer (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

String Trimmer

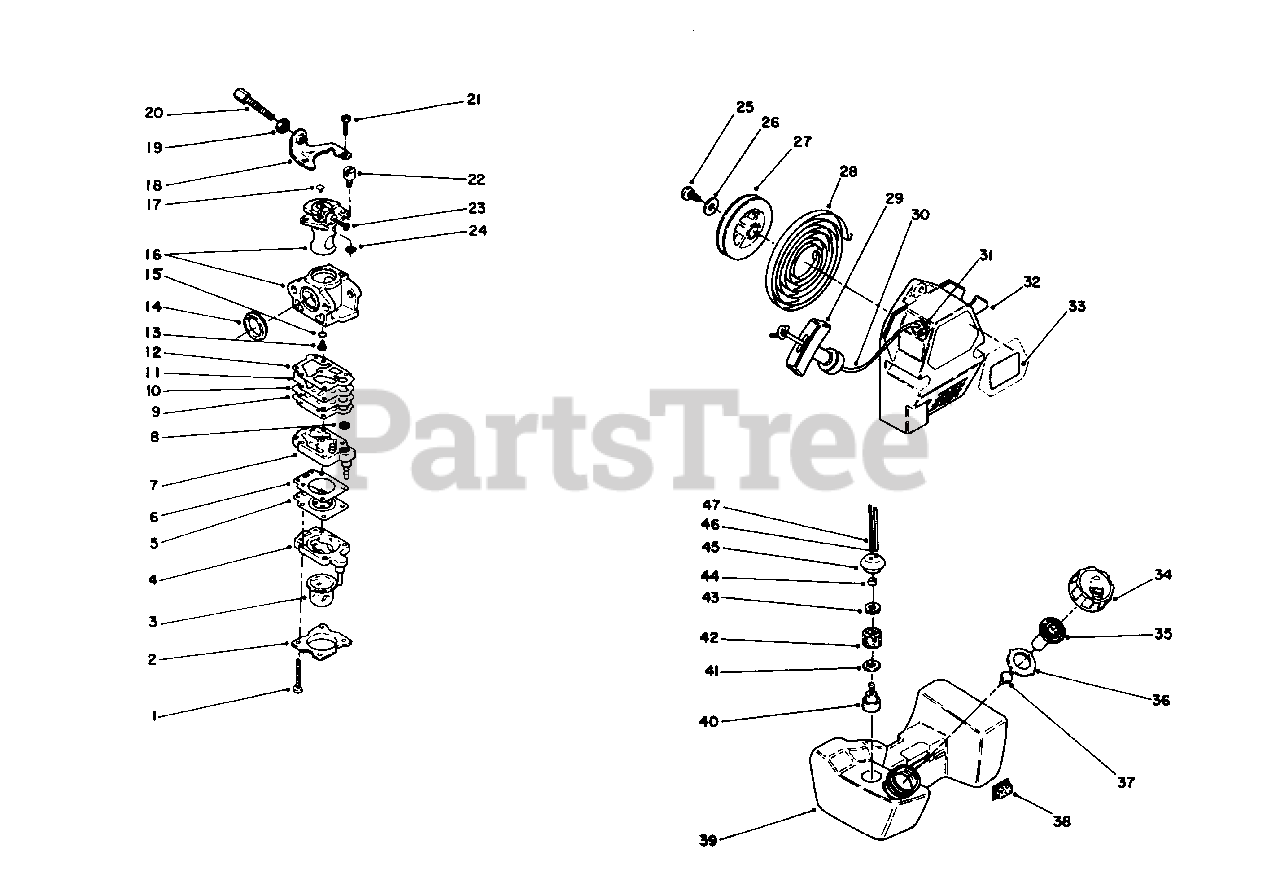

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 77-1690

Screw

$

$

Not available

2

Lawn-Boy 77-1680

Cover-Primer

$

$

Not available

3

Lawn-Boy 77-1670

Pump Assembly-Primer

$19.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 77-1660

Body-Primer

$

$

Not available

5

Lawn-Boy 77-1650

Diaphragm

$

$

Not available

6

Lawn-Boy 77-1640

Gasket-Diaphragm

$

$

Not available

7

Lawn-Boy 77-1630

Body-Pump

$117.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 77-1620

Screen

$

$

Not available

9

Lawn-Boy 77-1610

Gasket-Pump

$

$

Not available

10

Lawn-Boy 77-1600

Plate

$

$

Not available

11

Lawn-Boy 77-1590

Diaphragm

$

$

Not available

12

Lawn-Boy 77-1580

Gasket-Diaphragm

$19.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 77-1570

Jet-Main #43

$

$

Not available

14

Lawn-Boy 77-1550

Gasket-Rubber

$6.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 77-1560

O-Ring, Main Jet

$

$

Not available

16

Body-Carburator (Ref.)

$

$

Not available

17

Lawn-Boy 77-1530

Plug

$

$

Not available

18

Lawn-Boy 77-1490

Bracket

$

$

Not available

19

Lawn-Boy 77-1480

Nut-Lock

$

$

Not available

20

Lawn-Boy 77-1470

Screw-Adjustment

$

$

Not available

21

Lawn-Boy 77-1500

Screw

$

$

Not available

22

Lawn-Boy 77-1510

Pivot-Cable

$

$

Not available

23

Lawn-Boy 77-1540

Valve-Throttle

$

$

Not available

24

Lawn-Boy 77-1520

Clip

$

$

Not available

Lawn-Boy 77-1420

Carburator (Incl. Ref. #1-24)
(Superseded to 99-5283)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 77-2110

Kit-Carburator

Note: Not Illustrated

$

$

Not available

25

Lawn-Boy 60-8220

Screw

$

$

Not available

26

Lawn-Boy 65-4470

Washer

$

$

Not available

27

Lawn-Boy 60-8230

Reel

$

$

Not available

28

Lawn-Boy 54-5420

Spring

$

$

Not available

29

Lawn-Boy 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 54-6370

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

31

Lawn-Boy 77-1930

Guide

$

$

Not available

32

Lawn-Boy 77-1940

Case-Starter
(Superseded to 82-6170)

$257.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 76-0790

Decal-Toro

$

$

Not available

Lawn-Boy 77-1850

Starter Assembly-Recoil (Incl. Ref. #25-32)
(Superseded to 82-6180)

Note: Not Illustrated

$

$

Not available

34

Lawn-Boy 77-1990

Cap-Fuel

$37.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 77-2000

Valve-Breather

$38.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 77-2010

Gasket

$14.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 77-2020

Cap-Valve

$

$

Not available

Lawn-Boy 77-1980

Cap Assembly (Incl. Ref. #34-38)

Note: Not Illustrated

$54.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 60-8280

Pad

$

$

Not available

39

Lawn-Boy 77-1900

Tank Assembly-Fuel
(Superseded to 88-0230)

$283.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 77-2070

Weight-Filter

$

$

Not available

41

Lawn-Boy 77-2060

Seal

$

$

Not available

42

Lawn-Boy 77-2050

Filter-Fuel
(Superseded to 88-0250)

$

$

Not available

43

Lawn-Boy 77-2040

Washer-Seal

$

$

Not available

44

Lawn-Boy 77-1970

Collar

$

$

Not available

45

Lawn-Boy 77-2030

Grommet-Fuel Tank

$11.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 54-6390

Hose-Fuel

$

$

Not available

47

Lawn-Boy 77-1960

Tube-Fuel Return

$27.99

$

Usually ships in 3-6 days

0

Lawn-Boy 77-2100

Filter Assembly-Fuel
(Superseded to 88-0250)

Note: Not Illustrated

$

$

Not available
