51675 (TC 5010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) CUTTER HEAD & GEAR BOX ASSEMBLY Parts Diagram

String Trimmer

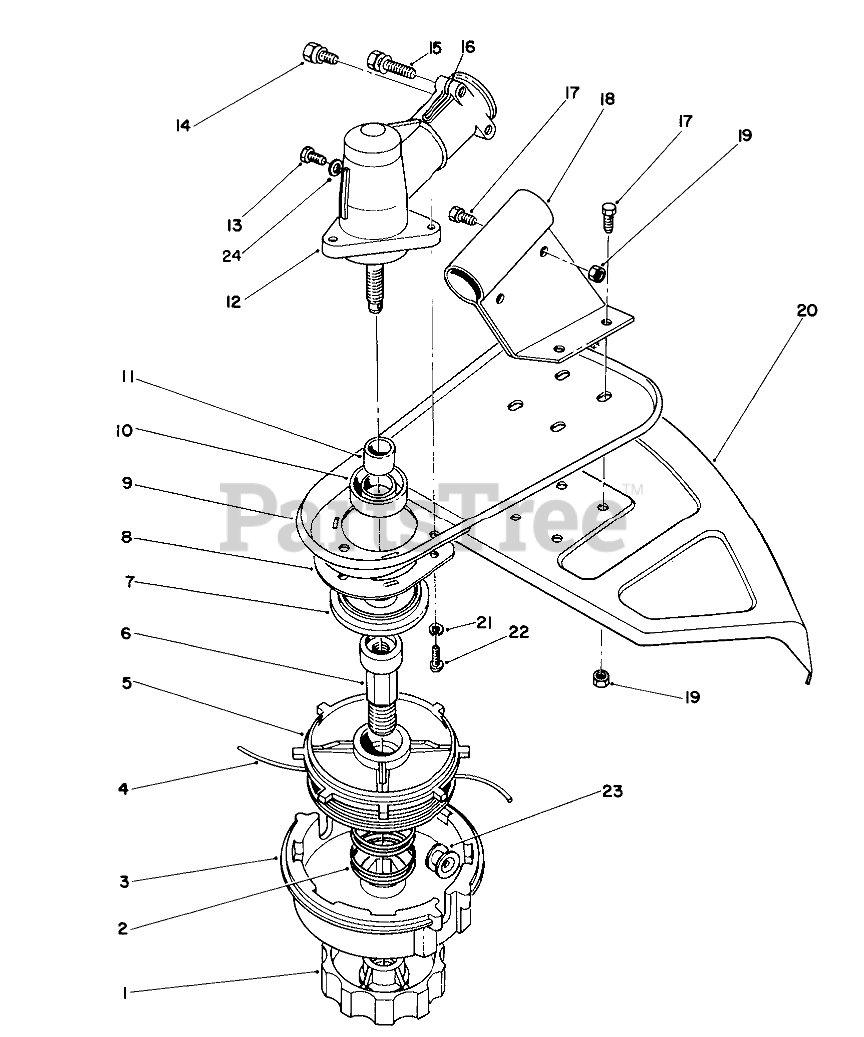

CUTTER HEAD & GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 57-5580

LH KNOB(SERVICE ONLY)

$70.99

$

In Stock, only 1 left!

0

2

Toro 57-5620

SPRING (SERVICE)

$

$

Not available

3

Toro 57-5600

SPOOL HSG (SERVICE ONLY

$133.99

$

Usually ships in 3-6 days

0

4

Line Cutting .105 Dia. 11-

$

$

Not available

Toro 43-5000

REPL LINE PKG

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 41-6820

#1 BULK SPOOL .095

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0

Toro 46-2730

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

Toro 52-5070

REPLACMNT LINE(20 FT)

Note: Not illustrated

$

$

Not available

Toro 46-2740

3 LB BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available

5

Toro 57-5590

INNER SPOOL(SERV ONLY)

$

$

Not available

6

Toro 57-5610

SHAFT (SERVICE ONLY)

$

$

Not available

7

Toro 48-2080

DUST CAP F/W

$166.99

$

Usually ships in 3-6 days

0

8

Toro 57-5540

GRASS WRAP GUARD

$

$

Not available

9

Toro 47-2800

SHIELD SUPPORT R

$

$

Not available

10

Toro 48-2090

OIL SEAL

$

$

Not available

11

Toro 48-2100

SPLINED SLEEVE

$

$

Not available

12

Toro 52-5720

Gear Box Assembly (Incl. Ref. #10, 11, 13-16 & 24)

$549.99

$

Usually ships in 3-6 days

0

13

Toro 48-2110

HHMS SCREW

$

$

Not available

14

Toro 48-2150

HHMS SCREW

$9.49

$

Usually ships in 3-6 days

0

15

Toro 48-2130

HHMS SCREW

$

$

Not available

16

Toro 48-2140

WASHER

$

$

Not available

17

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 53-7230

Bracket-Shield

$

$

Not available

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

20

Toro 52-5960

GRASS SHIELD-STEEL

$

$

Not available

21

Toro 55-8050

LOCKWASHER

$

$

Not available

22

Toro 57-5550

SCREW

$

$

Not available

23

Toro 57-5630

EYELET(SERVICE)

$6.99

$

Usually ships in 3-6 days

0

24

Toro 48-2120

GASKET

$

$

Not available

Toro 57-5670

Cutter Head Assembly (Incl. Ref. #1-6 & 23)

Note: Not illustrated

$

$

Not available
